Quality Machine Tools

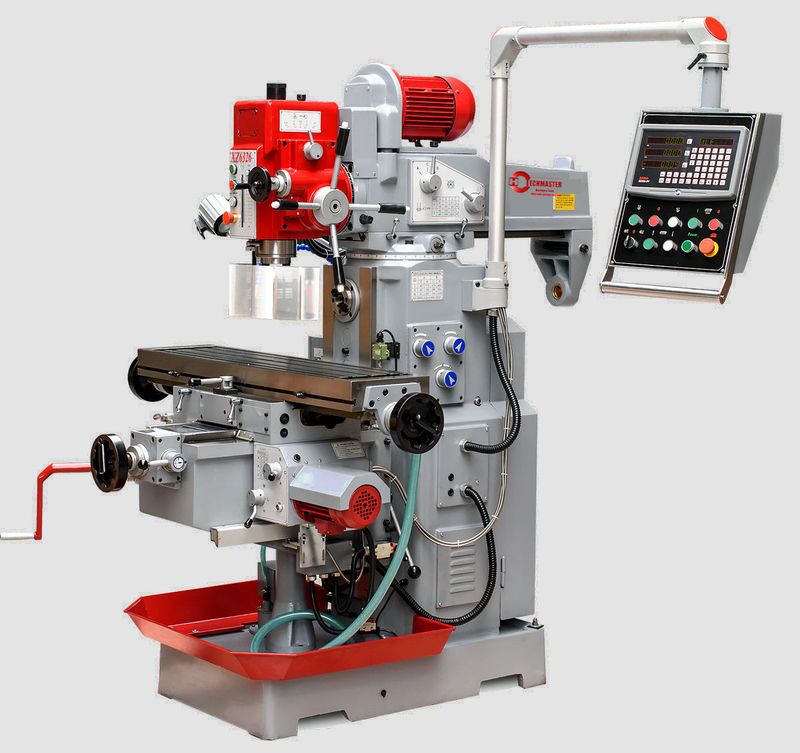

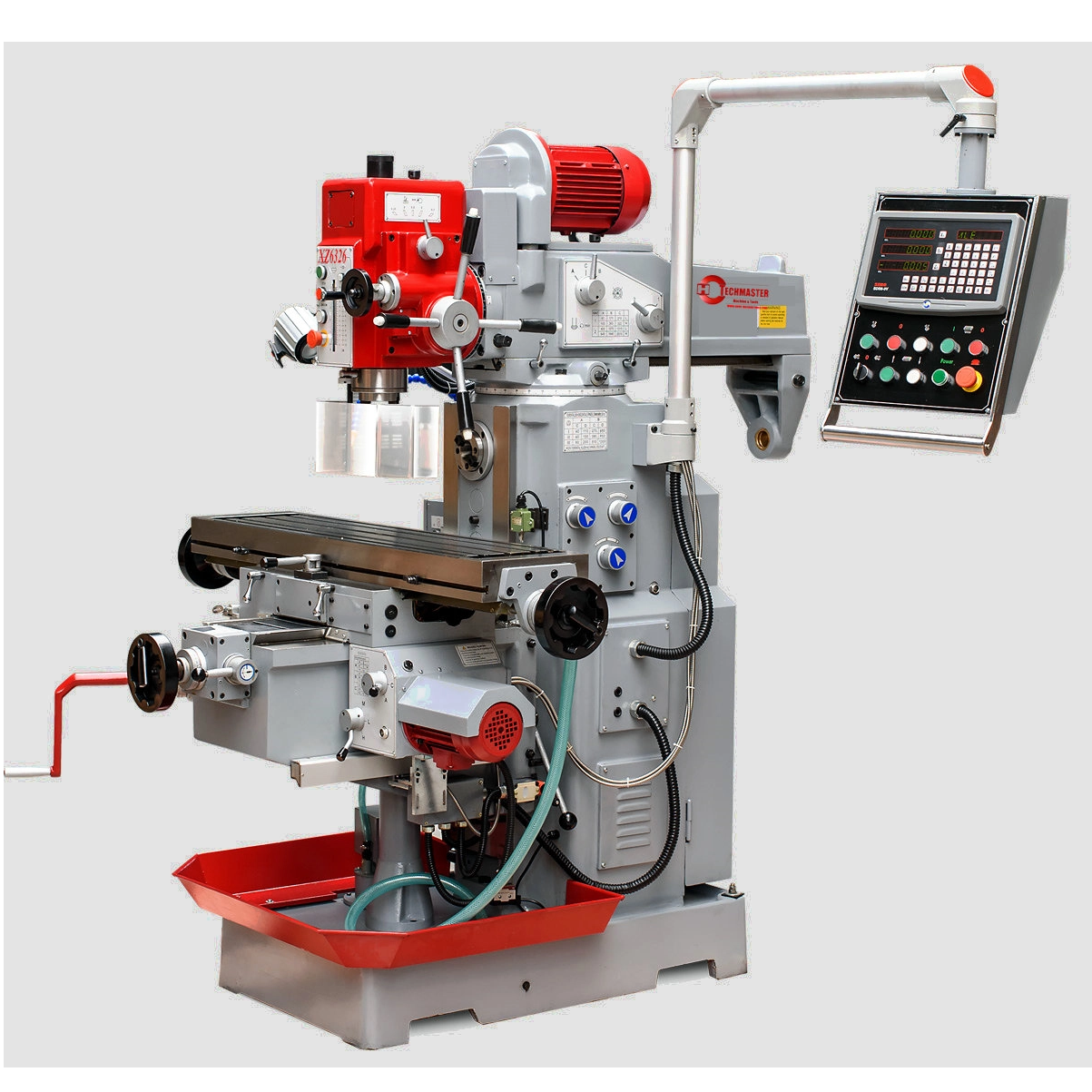

unit | specification XZ6326 | |
Table size | mm | 1120X260 |
T slot no./width/distance | no | 5/14/50 |
Max. load of Table | kg | 200 |
table Longitudinal travel(manual/auto) | mm | 600 |
table Cross travel (manual) | mm | 300 |
table Vertical travel(manual) | mm | 380 |
Spindle taper | ISO40 | |
spindle speed /step -- Vertical | rpm | 67-2010/12steps |
--Horizontal | rpm | 40-1300/12steps |
Max.drilling dia. | mm | 30 |
Max.end milling width | mm | 125 |
Max. vertical milling Dia. | mm | 25 |
Max.tapping dia. | mm | M16 |
quill travel | mm | 120 |
swivel angle of headstock | degree | ±45º |
vertical spindle axis to column surface | mm | 220-760 |
vertical spindle nose to table surface | mm | 115-430 |
horizontal spindle axis to table surface | mm | 0-380 |
horizontal spindle axis to ram bottom | mm | 175 |
ram travel | mm | 520 |
Longitudinal feed | mm / min | 24-720/8steps |
Longitudinal rapid speed | mm / min | 1040(X) |
automatic spindle feed | 0.1/0.15/0.3 | |
main motor | kw | 1.5/2.2(V),2.2(H) |
feed motor | kw | 0.37(X) |
coolant motor | kw | 0.04 |
overall dimension | cm | 158X145X215 |
N/W,G/W | kg | 1350/1500 |
