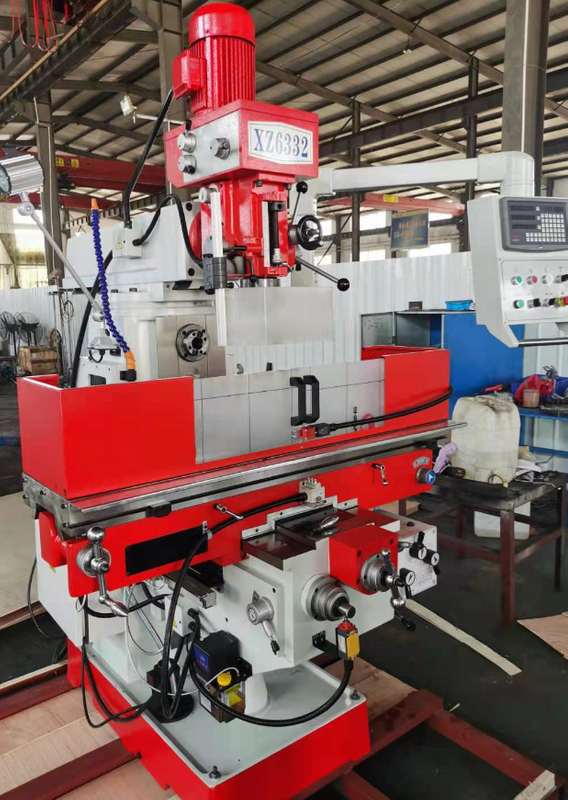

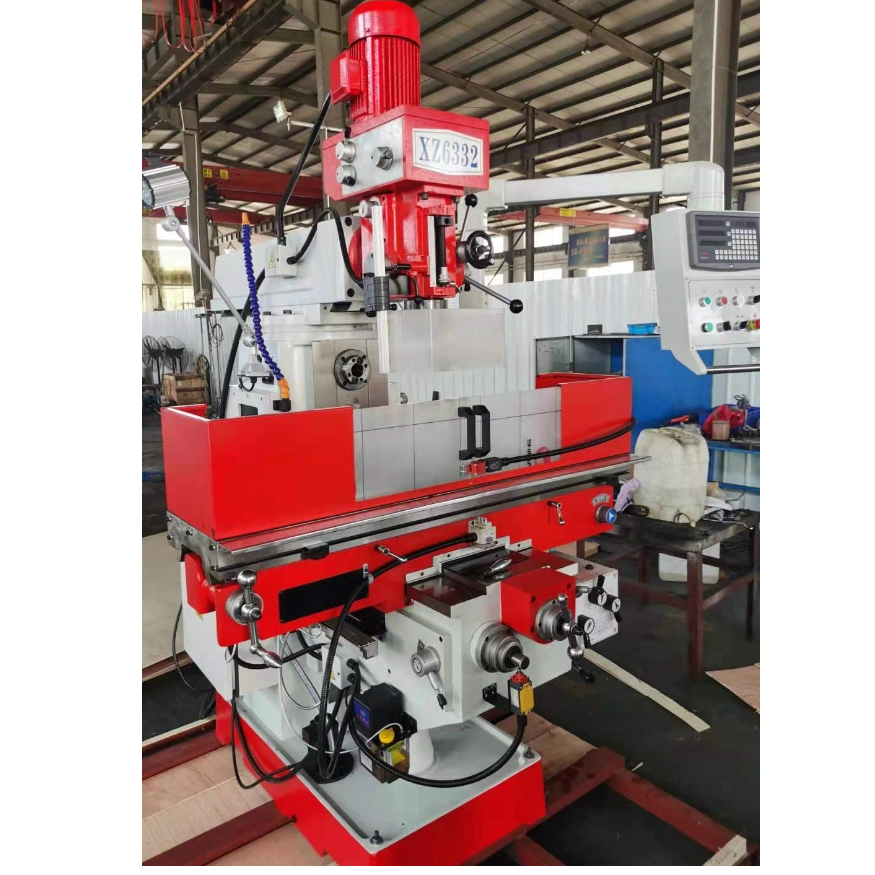

XZ6332 UNIVERSAL MILLING MACHINE
Quantity: The machine is with gear driven milling head, and the spindle can be automatic feed.
The machine is with X,Y mechanical feed, Z lifting and lowering motor.
The machine is with operation panel which is convenient for the operator to use.
The ram can be movable forward and backward.
The machine head can swivel 45 degrees.
The machine can be equipped with options DRO, spindle protection, etc.
unit
specification XZ6332
Table size
mm
1320X320
T slot no./width/distance
no
5/14/63
Max. load of Table
kg
300
table Longitudinal travel(manual/auto)
mm
800/750
table Cross travel (manual/auto)
mm
300
table Vertical travel(manual/auto)
mm
400
Spindle taper
ISO40
spindle speed /step -- Vertical
rpm
90-2000/8
--Horizontal
rpm
40-1300/12
Max.drilling dia.
mm
30
Max.end milling width
mm
125
Max. vertical milling Dia.
mm
25
Max.tapping dia.
mm
10(steel)
quill travel
mm
120
swivel angle of headstock
degree
±45º
vertical spindle axis to column surface
mm
200-780
vertical spindle nose to table surface
mm
150-550
horizontal spindle axis to table surface
mm
0-350
horizontal spindle axis to ram bottom
mm
175
ram travel
mm
400
Longitudinal/cross feed
mm / min
20-360/8steps
Vertical/step
mm/min
422/1step
Longitudinal/cross rapid speed
mm / min
1200
Rapid Traverse vertical
mm/min
422
automatic spindle feed
0.08/0.15/0.25
main motor
kW
2.2
(X/Y/Z) feed motor
kW
0.55(X/Y),0.75(Z)
coolant motor
kW
0.04
overall dimension
cm
171x172x233
N/W,G/W
kg
2000/2200
