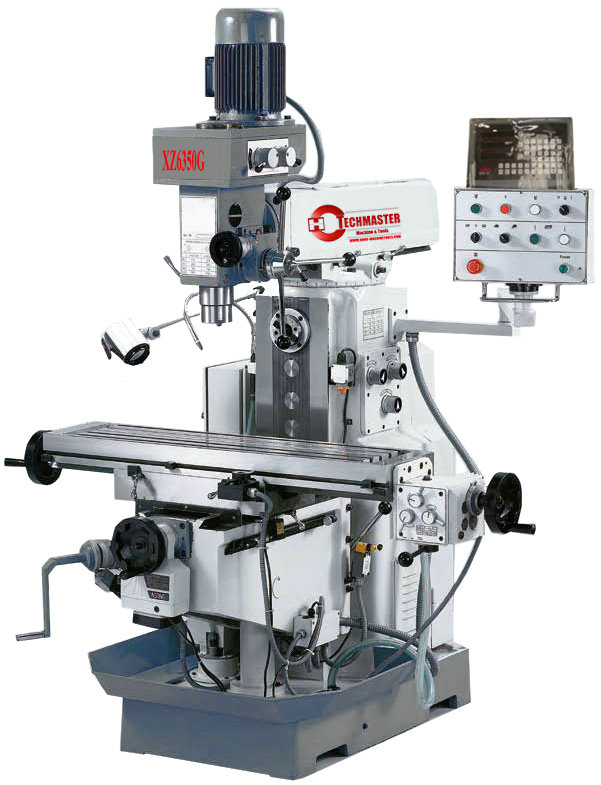

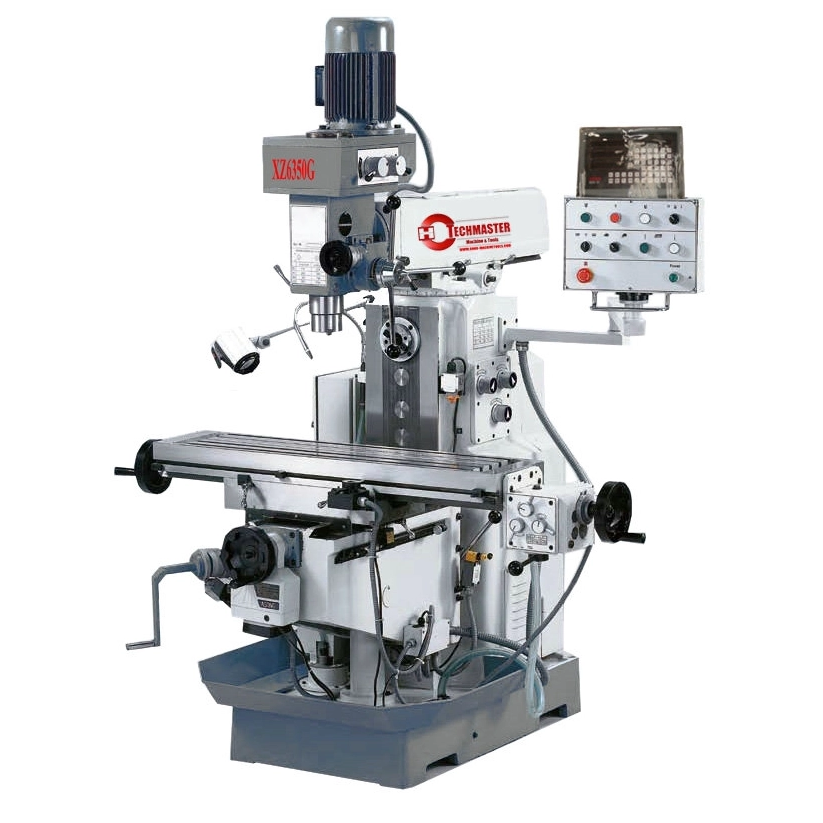

XZ6350G

Quantity:
3-axes digital read-out
aut. feed for X- and Y-axis
drilling chuck
3 pcs. chuck adapter
8 collet chucks
horizontal milling arbor
machine lamp
according to CE-prescriptions
cooling equipment
torquing arbor
horizontal counter bearing
milling arbor set
set of collets
swarf plate
table cover
operator tools
machine vice
table: 1,120 x 260 mm
working area: 600 x 300 x 380 mm
taper: ISO 40
length: 1,750 mm
width: 1,500 mm
height: 2,200 mm
distance table-vertical spindle: 80 - 460 mm
distance table-horizontal spindle: 0 – 380 mm
motor power: horizontal 2,2 kW; vertical 0,85/1,5 kW
quill stroke: 120 mm
speeds: horizontal 40 – 1,300 r.p.m., vertical 115 – 1,750 r.p.m.
weight: 1.350 kg
