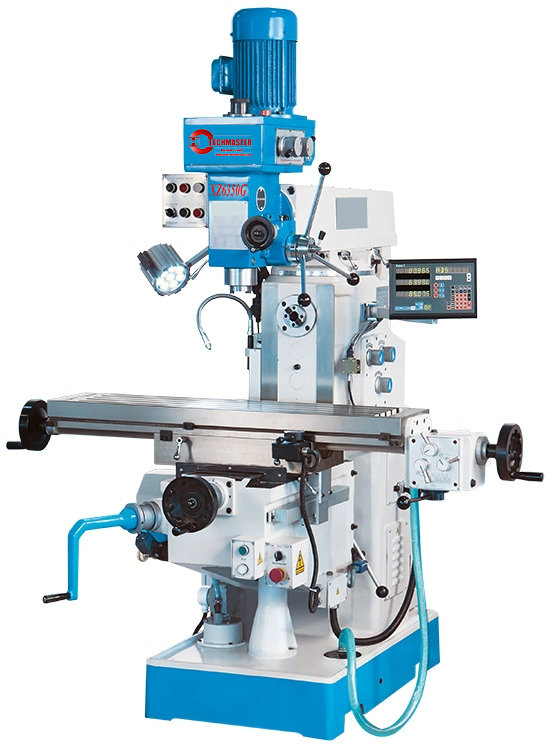

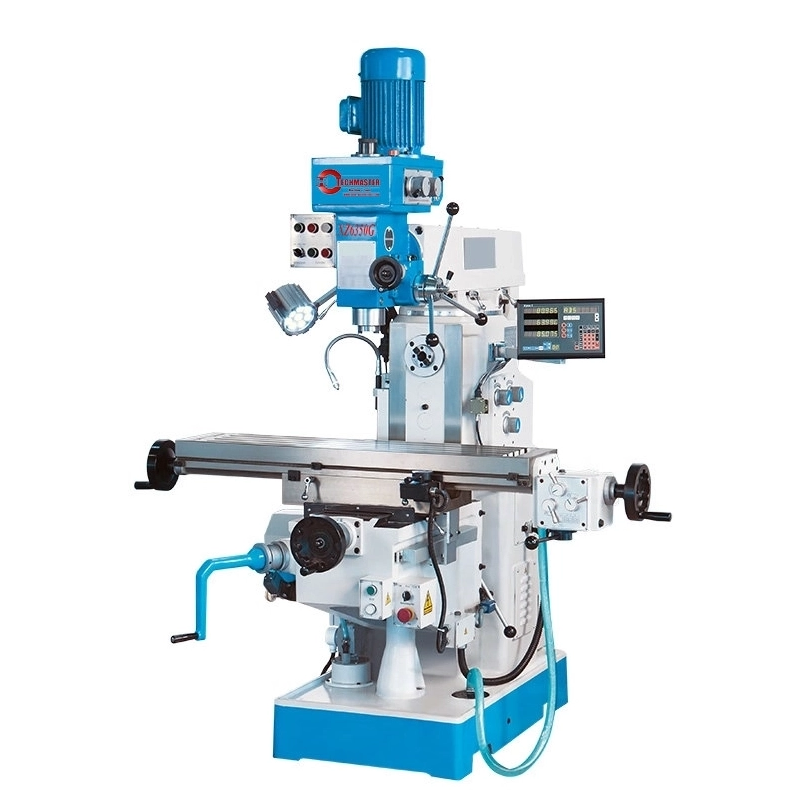

XZ6350G
Quantity: Feature:
mechanic workshops, training, single part and replacement part manufacturing and prototyping.
This excellent price/performance ratio is made possible by high volume production with standardized VHF assemblies
height adjustment of the work table via automatic feed - precision feed via smooth hand crank
All 3 axes are provided with clamping devices
the vertical head swivels to both sides (± 90°), quill feed through capstan or with fine feed hand wheel
the installed feed (standard equipment) allows movement of the X-axis by hand wheel or through the feed feature
for horizontal spindle work, the top beam can be turned with; the head by ± 180° on the stand. Spindle speed is controlled through the gear lever.XZ6350G - Universal Milling Machine cutting capacity
drilling capacity 30 mm milling diameter in steel (max.) 25 mm tapping capacity, steel M 16 counter-boring capacity 100 mm working area
travel X-axis 600 mm travel Y-axis 270 mm travel Z-axis 300 mm table set up area 1120x280 mm vertical milling head
spindle speed (vertical) (8) 115 - 1750 rpm spindle mount (vertical) SK 40 quill stroke 120 mm throat 160 - 610 mm spindle nose-to-table surface distance 60 - 360 mm horizontal milling head
spindle speed (horizontal) (12) 40 - 1300 rpm horizontal spindle-to-table surface distance 0 - 300 mm drive capacity
motor rating horizontal spindle 2,2 kW motor rating vertical spindle 1,5 kW measures and weights
overall dimensions 1710x1480x2100 mm weight 1400 kg
