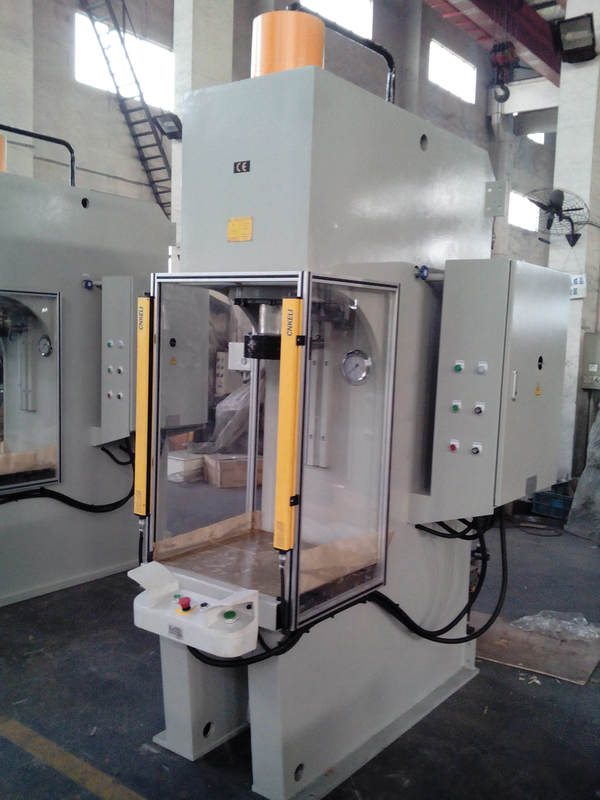

type | Unit | 1T | 1.6T | 2.5T | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 250T | |
Nominal force | KN | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2500 | |
The maximun working pressure of the fluid | MPA | 4.5 | 5.1 | 4.4 | 5.6 | 5.2 | 8.1 | 13 | 20.3 | 22.6 | 16.5 | 26.5 | 25 | 25 | |
The maximum distance between the under surface of the surface of the working platform | mm | 300 | 300 | 300 | 390 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 1000 | 1000 | |
The maximum stroke of the slipper | mm | 120 | 160 | 160 | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | |
Down velocity of the slipper | mm/s | 60 | 44 | 42 | 35 | 48 | 45 | 48 | 48 | 33 | 39 | 36 | 24 | 23 | |
Return velocity of the slipper | mm/s | 82 | 75 | 70 | 58 | 75 | 100 | 115 | 115 | 94 | 84 | 98 | 65 | 55 | |
Throat depth | mm | 160 | 160 | 160 | 180 | 250 | 250 | 300 | 280 | 320 | 350 | 350 | 325 | 360 | |
The size of the working platform | Front,Rear | mm | 320 | 320 | 320 | 340 | 480 | 480 | 500 | 500 | 550 | 650 | 650 | 650 | 660 |
Left,Right | mm | 480 | 480 | 480 | 480 | 550 | 550 | 650 | 650 | 700 | 700 | 800 | 800 | 800 | |
The height of the working platform to the surface of the floor | mm | 700 | 700 | 700 | 710 | 710 | 710 | 710 | 700 | 700 | 700 | 730 | 710 | 710 | |
The size for the cutting hole | mm | 30 | 70 | 70 | 70 | 80 | 80 | 100 | 100 | 100 | 140 | 140 | 200 | 200 | |
Description of oil pump | Medium-high pressure blade pump | Pressure equaligation variable axial plunger pump | |||||||||||||
The power for motors | kw | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 8.5 | 11 | 15 | |
The configuration size of the machine tool | Front,Rear | mm | 720 | 725 | 725 | 785 | 935 | 1100 | 1140 | 1200 | 1310 | 1550 | 1650 | 1340 | 1767 |
Left,Right | mm | 610 | 560 | 560 | 560 | 580 | 650 | 650 | 750 | 750 | 825 | 1600 | 2000 | 2000 | |
The height above the floor | mm | 1455 | 1450 | 1450 | 1630 | 1675 | 1800 | 1800 | 2100 | 2330 | 2325 | 2500 | 2060 | 3305 | |
Total weight | kg | 250 | 250 | 350 | 500 | 750 | 1000 | 1000 | 2000 | 2500 | 3500 | 5000 | 6500 | 8000 |
