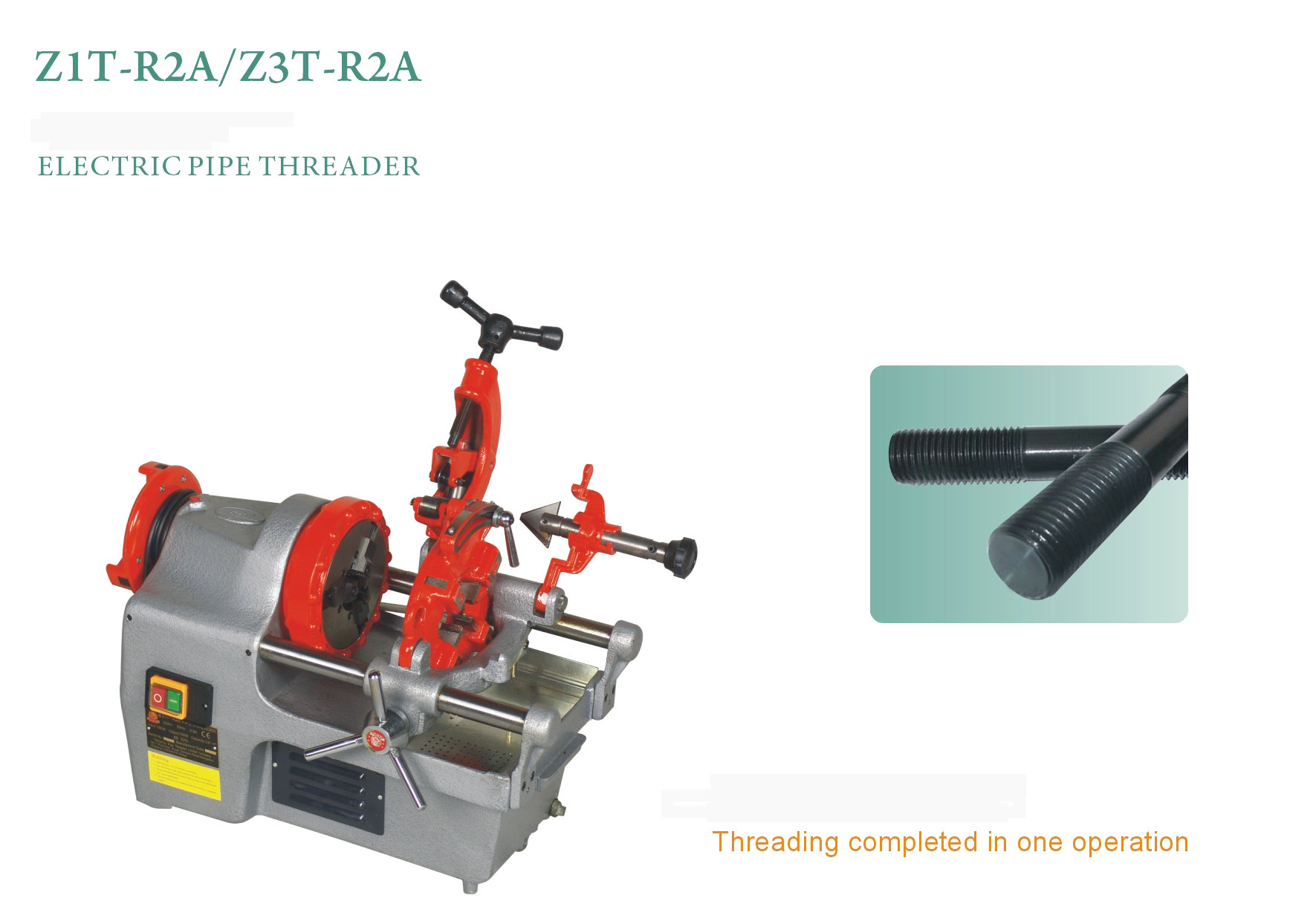

Z1TR2A

Featuring

The model Z1T-R2B threading machine is equipped with a powerful 750W induction motor which enable the machine process standard threads more quickly.

compact design with cast aluminum  body.  Easy and fast transport and set-up.

Universal applicable, can also work on workbench.

CE approved



Specifications

Motor: 750W universal type, 115V or 220V, 50-60Hz，Single phase.

Speed: 28 RPM

Capacity: 1/2"-2"

Die head: automatic type for threading

Constant oil flow, through the die head, with an integral oil reservoir



Ordering information

Code	Model no.	Description	Weight
20003	Z1T-R2B	complete set.1/2"-2",BSPT 220V-50HZ or 60HZ	62KG
20004	Z1T-R2B	Complete set.1/2"-2",NPT 110V-60HZ	62KG



Accessories

Code	Model no.	Description
20200	1/2"-2"	Front chuck kit
20220	1/2"-2"	Rear chuck kit
20203	1/2"-2"	Front chuck jaws 3pcs/set
20300	1/2"-2"	Gear box kit
20400	1/2"-2"	Die head, automatic
20500	1/2"-2"	Reamer kit
20600	1/2"-2"	Cutter
20700	1/2"-2"	Length change apparatus
20800	2"	220V/50HZ motor
80302		Oil pump
80607		Cutter wheel
20203	2"	Front chuck jaws(3 pcs/set)



Dies set

Cat no.	Size	Material
80000	1/2"-3/4" BSPT	alloy
80001	1"-2" BSPT	alloy
80002	1/2"-3/4" NPT (optional)	alloy
80003	1"-2" NPT (optional)	alloy
80004	1/2"-3/4" BSPT HSS (optional)	HSS
80005	1"-2" BSPT HSS (optional)	HSS
80006	1/2"-3/4" NPT HSS (optional)	HSS
80007	1"-2" NPT HSS (optional)	HSS
80016	1/4"-3/8" BSPT(optional) (optional)	alloy
80017	1/4"-3/8" NPT(optional) (optional)	alloy
