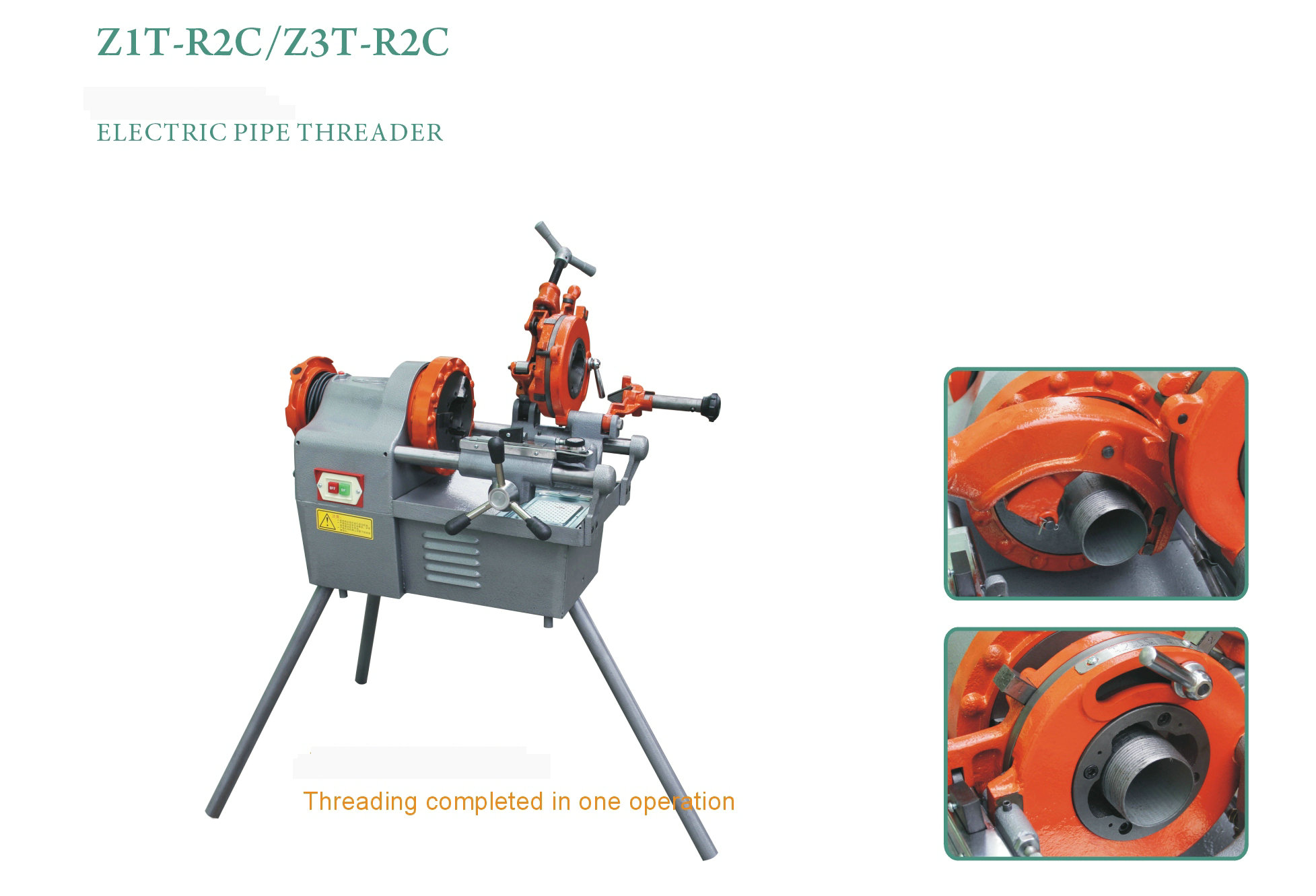

Z1TR2C

Quantity:

Features

♦ Accurate threading of gas, water, oil, stainless pipe.

♦ Threading completed in one operation.

♦ Chuck: Impact Chuck and exchangeable Chuck Jaw.

♦ Gear box driving.

♦ Induction motor.

♦ Compact design with cast aluminum body.  Easy and fast transport and set-up.

♦ Universal applicable, can also work on workbench.

♦ POWDER COATING, environmental friendly.

♦ AUTOMATIC type DIE HEAD, 1 head equipped.

♦ Constant oil flow, through the die head, with an integral oil reservoir.

♦ CE Approved.

Patent gearbox.



Specifications

Main Parameters

Paramters Content

Pipe Capacity

1/2"-2"

Applicable Threader Standard

BSPT,NPT

Output Power

750W

Efficient Speed

30 RPM

Voltage

220V~ or 110V~ single phase
Frequency 50Hz or 60Hz

Switches

FOR/OFF and Safety Foot Switch optional

Die

Alloy or HSS

Cutter

Wheel type, self-centering

Reamer

1/2"-2" cone blade, 5-flute cone optional

Oil Pump

Gerotor Oil Pump

Gross/Net Weight

78/65Kg

Packing Size

720x480x560mm





Standard Accessories

♦ one automatic type Die Head

♦ One set of 1/2”-3/4” Die

♦ One set of 1”-2” Die

♦ One set of 1/2"-2"Cutter Kit

♦ One set of 1/2"-2"Reamer Kit

♦ Three pcs of tubular supporter



Optional Accessories

♦ Foot Switch

♦ Nipple Chuck Kit

♦ Threader Stands



Ordering information

Code Model No. Description Weight
20000 Z1T-R2C complete set.1/2"-2",BSPT 220V-50HZ or 60HZ 65KG
20001 Z1T-R2C Complete set.1/2"-2",NPT 110V-60HZ 65KG



Accessories

Code Model No. Description
20200 1/2"-2" Front chuck kit
20220 1/2"-2" Rear chuck kit
20203 1/2"-2" Front chuck jaws 3pcs/set
20300 1/2"-2" Gear box kit
20400 1/2"-2" Die head, automatic
20500 1/2"-2" Reamer kit
20600 1/2"-2" Cutter
20700 1/2"-2" Length change apparatus
20800 2" 220V/50HZ motor
80302
Oil pump
80607
Cutter wheel
20203 2" Front chuck jaws(3 pcs/set)



Dies Set

Code Size Material
80000 1/2"-3/4" BSPT alloy
80001 1"-2" BSPT alloy
80002 1/2"-3/4" NPT (optional) alloy
80003 1"-2" NPT (optional) alloy
80004 1/2"-3/4" BSPT HSS (optional) HSS
80005 1"-2" BSPT HSS (optional) HSS
80006 1/2"-3/4" NPT HSS (optional) HSS
80007 1"-2" NPT HSS (optional) HSS
80016 1/4"-3/8" BSPT(optional) (optional) alloy
80017 1/4"-3/8" NPT(optional) (optional) alloy
