| Quantity: | |
|---|---|
| Maximum roll pressure | 200KN | Spindle speed | 16,26,38,55,90 r/min |
|---|---|---|---|
| Rolling material diameter | 60mm | Active power | 11kw |
| Track rollers | 210mm | Hydraulic power | 4.0kw |
| Diameter rollers | 75mm | Cooling power | 125w |
| Maximum thickness of roller | 120mm | Dimension | 1700*1850*1550mm |
| Axis tilt angle | ±15° | Total mass | 2300kgs(±50kgs) |
| Spindle center distance | 150-270mm | Open thread lendth | plus protection |

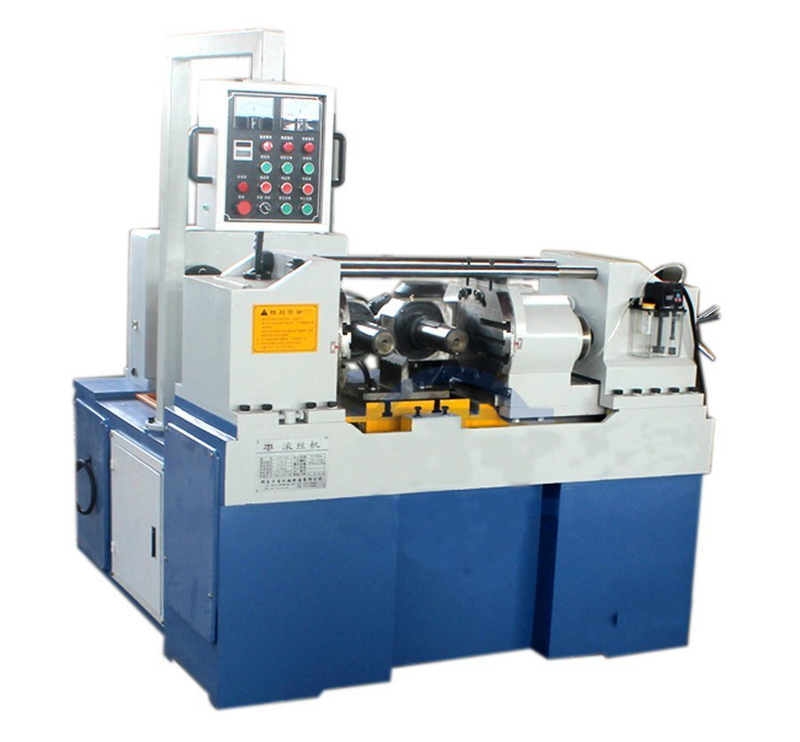

Z28-200 Type Screw Rolling Machine
Z28-200 is mainly used for a variety of architectural wall screws, the top drag, trapezoidal screw and modulus screw of the workpiece with the simple operation, high efficiency advantage.
| Maximum roll pressure | 200KN | Spindle speed | 16,26,38,55,90 r/min |
|---|---|---|---|
| Rolling material diameter | 60mm | Active power | 11kw |
| Track rollers | 210mm | Hydraulic power | 4.0kw |
| Diameter rollers | 75mm | Cooling power | 125w |
| Maximum thickness of roller | 120mm | Dimension | 1700*1850*1550mm |
| Axis tilt angle | ±15° | Total mass | 2300kgs(±50kgs) |
| Spindle center distance | 150-270mm | Open thread lendth | plus protection |
Z28-200 Type Screw Rolling Machine
Z28-200 is mainly used for a variety of architectural wall screws, the top drag, trapezoidal screw and modulus screw of the workpiece with the simple operation, high efficiency advantage.
