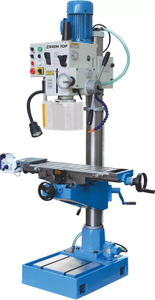

  • Stepless drilling spindle speed adjustment
  • Digital speed display
  • Digital drilling depth indicator
  • Fast right/left hand rotation switching by palm grip, especially suitable for cutting threads
  • Heavy-duty pole Ø 110 mm
  • Rotatable clamping table
  • Heavy duty stand with grooved cast-iron base plate for increased stability

Technical Data

Electric motor drive 1,5 kW P1
Voltage 230 V
Drill Ø max. 31,5 mm
Drilling capacity on solid material 25 mm
Tool holder MK 3
Outreach 280 mm
Spindle stroke 100 mm
Spindle height above worktable max. 460 mm
Spindle speed approx. 150-1700 RPM
Table size 400 x 350 mm
Base plate 450 x 740 mm
Dimensions (W x H x L) 700 x 1840 x 840 mm
Weight approx. 305 kg
