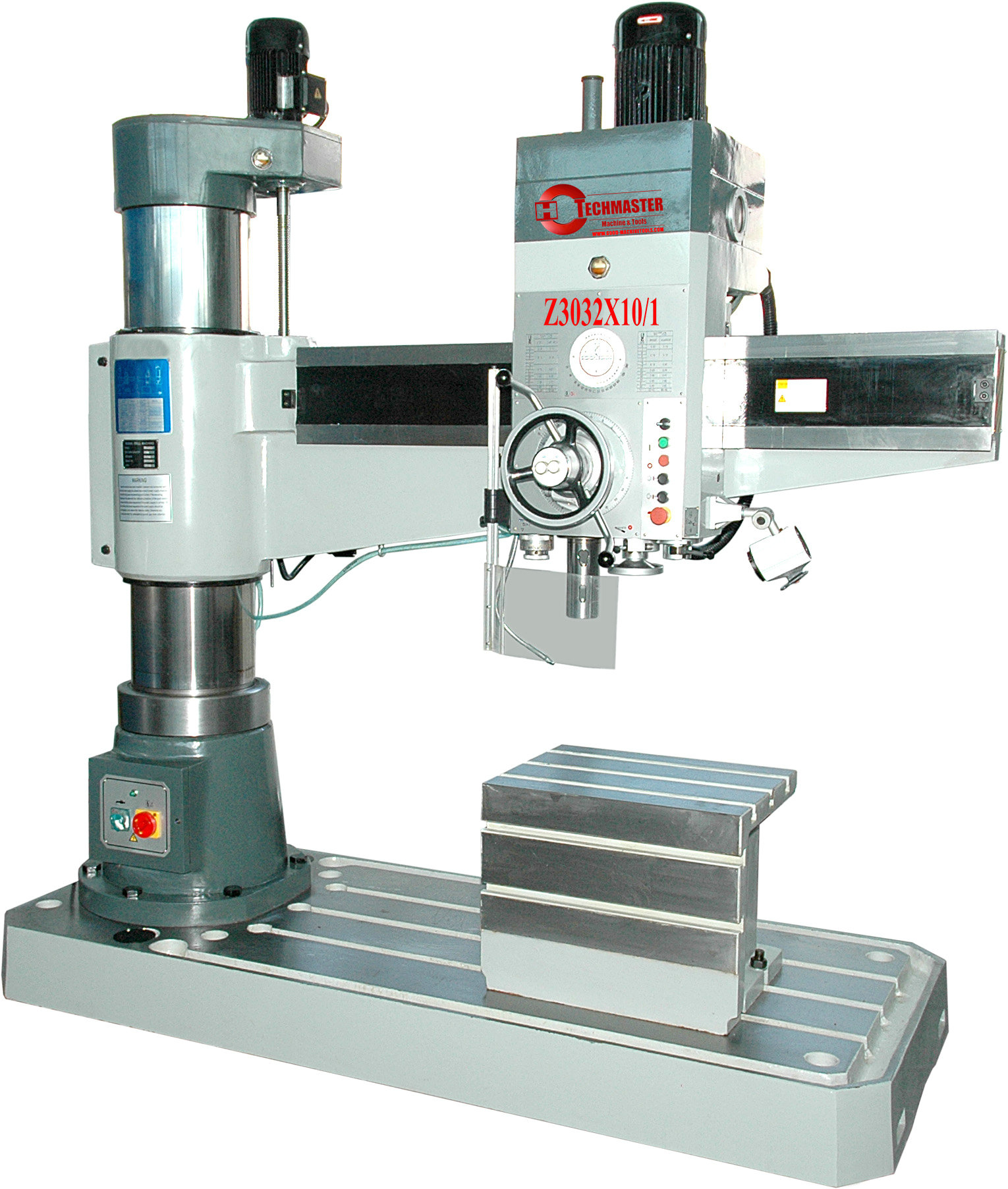

Z3032X10/1

Quantity:
box table 600 x 455 x 455 mm
coolant equipment
machine lamp
mechanical clamping for height adjustment and spindle stock
electr. clamping for arm rotation

drilling capacity: 32 mm
MT: 4
gap: 300 - 1.000 mm
revs: 32 - 2.500 r/min (16)
feeds: 0,1 - 1,25 mm/r (8)
spindle motor: 2,2 kW
lifting motor: 0,75 kW
distance spindle to base: 530 - 1.000 mm
spindle travel: 250 mm
column Ø: 240 mm
length: 1.760 mm
width: 800 mm
height: 2.080 mm
weight: 1.600 kg
