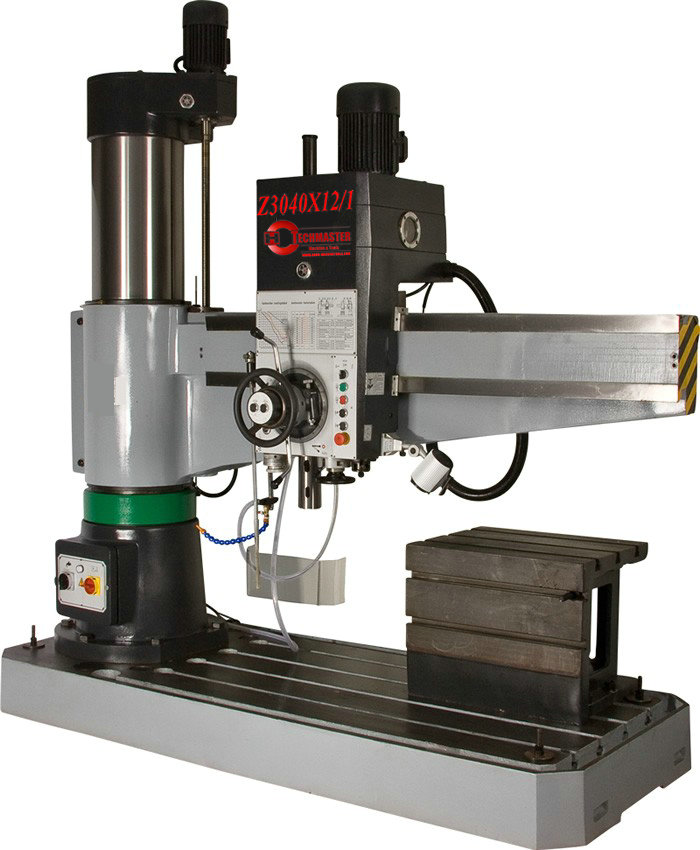

Z3040X12/1

Quantity:
 Radial drill range are unbeatable in price and performance, the machines are used for drilling, reaming and tapping. The drill's frame is made from a high-quality fine-grain cast iron with heavy ribbing to ensure maximum reduction of vibrations. Precision ground gears ensure that the machine runs quietly, and the practical layout of the electrical and mechanical controls at the headstock make for easy operation. The machines are also fitted with a motorized arm height adjustment and mechanical clamping for the head, column and arm. Hardened and ground guide way for smooth movement of the head.
  • hardly any vibration
  • hydraulic mechanic clamping
  • large work table
  • automatic feed
  • halogen machine light
  • integrated cooling system
  • Motor power 3 kW
    Spindle taper MT4
    Spindle speed range 25 - 2000 rpm
    Drilling capacity 40 mm
    Tapping capacity M27
    Number of speeds 16
    Distance spindle-column 350-1250 mm
    Drilling depth 315 mm
    Column diameter 350 mm
    Coolant pump 0,075 kW
    Max. distance spindle table 1250 mm
    Table size 625 x 500 lxw
    T-slots 3 / 22
    Number of feeds 16
    Feed range 0,04-3,2 mm/r
    Net weight 3000 kg
    Voltage 400 V
