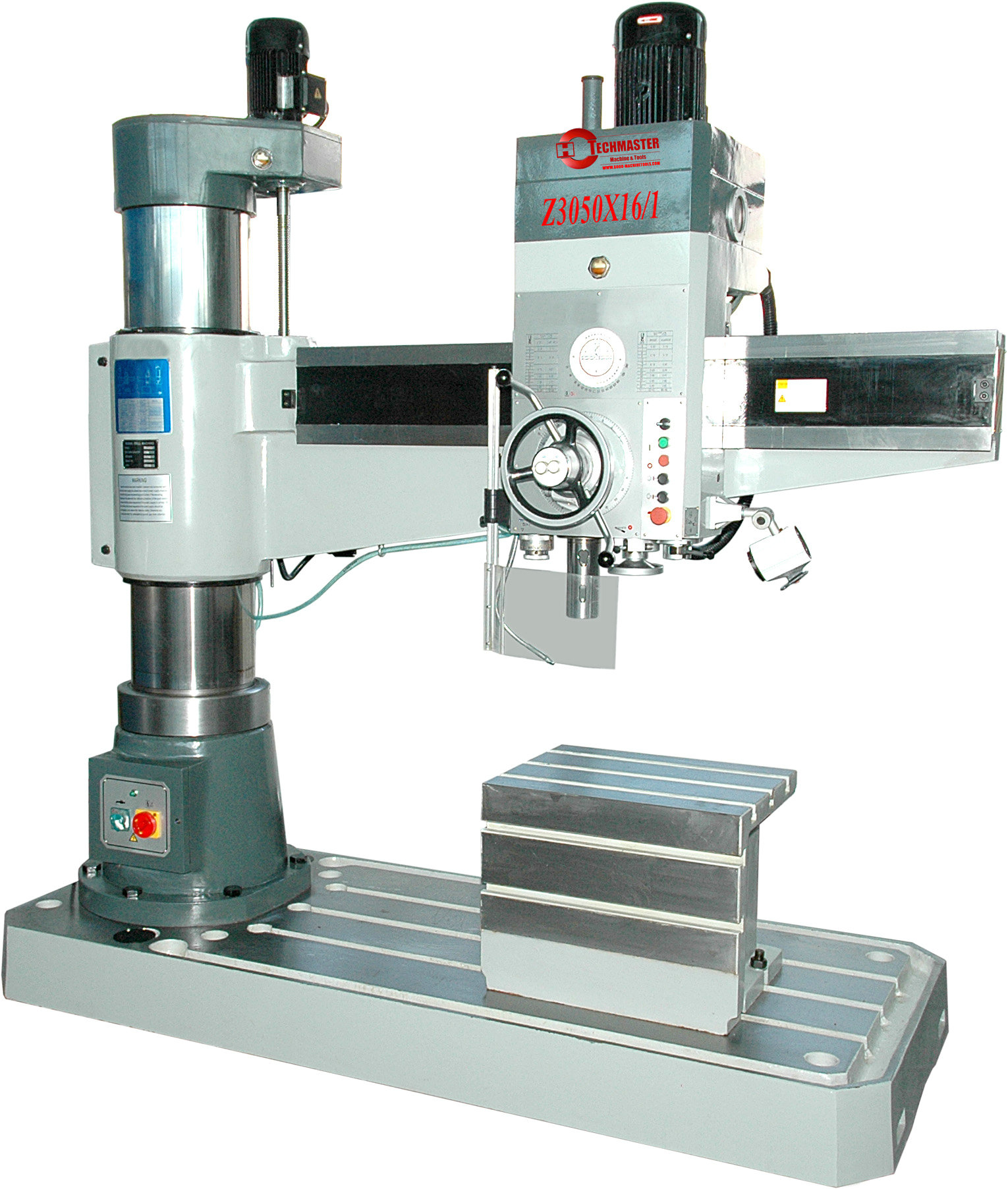

Z3050 X16/1 WDM
Quantity: box table 630 x 500 x 500 mm
coolant equipment
machine lamp
hydr. clamping
aut. column lubrication
drilling capacity: 50 mm MT: 5 gap: 350 - 1.600 mm revs: 25 - 2.000 r/min (16) feeds: 0,04 - 3,2 mm/r (16) spindle motor: 4 kW lifting motor: 1,1 kW distance spindle to base: 650 - 1.220 mm spindle travel: 315 mm column Ø: 346 mm length: 2.450 mm width: 980 mm height: 2.350/2.590 mm weight: 3.500 kg
box table 630 x 500 x 500 mm
coolant equipment
machine lamp
hydr. clamping
aut. column lubrication
drilling capacity: 50 mm MT: 5 gap: 350 - 1.600 mm revs: 25 - 2.000 r/min (16) feeds: 0,04 - 3,2 mm/r (16) spindle motor: 4 kW lifting motor: 1,1 kW distance spindle to base: 650 - 1.220 mm spindle travel: 315 mm column Ø: 346 mm length: 2.450 mm width: 980 mm height: 2.350/2.590 mm weight: 3.500 kg
