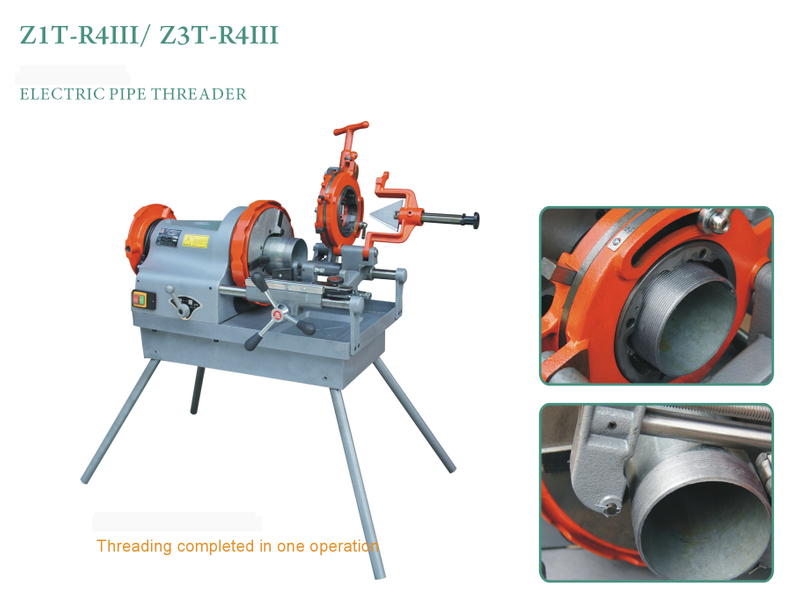

Z3T-R4III
Quantity: Features
♦ Accurate threading of gas, water, oil, stainless pipe.
♦ Threading completed in one operation.
♦ Chuck: Impact Chuck and exchangeable Chuck Jaw.
♦ Gear box driving.
♦ Induction motor.
♦ Compact design with cast aluminum body. Easy and fast transport and set-up.
♦ Universal applicable, can also work on workbench.
♦ POWDER COATING, instead of traditional painting, healthy, environmental friendly.
♦ AUTOMATIC type DIE HEAD, 2 heads equipped.
♦ Constant oil flow, through the die head, with an integral oil reservoir.
♦ CE Approved.
Specifications
Main Parameters
Paramters Content
Pipe Capacity
1/2"-4"
Applicable Threader Standard
BSPT, NPT
Output Power
750W
Speed
19/27 RPM
Voltage
380V~ single phase
Frequency
50Hz or 60Hz Switches
FOR/OFF and Safety Foot Switch optional
Die
Alloy or HSS
Chuck
Automatic with 3 reversible alloy jaws
Cutter
Wheel type, self-centering
Reamer
1/2"-4" cone blade, 5-flute cone optional
Oil Pump
Gerotor Oil Pump
Gross/Net Weight
150/135kg Standard Accessories
♦ Two pcs of automatic type Die Head
♦ One set of 1/2”-3/4” Die
♦ One set of 1”-2” Die
♦ One set of 2 1/2”-4” Die
♦ One set of 1/2"-4"Cutter Kit
♦ One set of 1/2"-4"Reamer Kit
♦ Four pcs of Tubular Supporter
Optional Accessories
♦ Foot Switch
♦ Nipple Chuck Kit
♦ Threader Stands
Ordering Information
Code Model No. Description Weight 40002 Z3T-R4III complete set.1/2"-4",BSPT 380V-50HZ or 60HZ 135KG Accessories
Code Model no. Description 40200 1/2"-4" Front chuck kit 40220 1/2"-4" Rear chuck kit 40203 1/2"-4" Front chuck jaws 3pcs/set 40300 1/2"-4" Gear box kit 40400A 1/2"-2" Die head, automatic 40400B 2 1/2"-4" Die head, automatic 40500 1/2"-4" Reamer kit 40600 1/2"-4" Pipe Cutter 40700 1/2"-4" Length change apparatus 40800 4" 220V/50HZ motor 80302
Oil pump 80607
Cutter wheel Dies Set
Code Size Material 80000 1/2"-3/4" BSPT alloy 80001 1"-2" BSPT alloy 80009 2 1/2"-4" BSPT alloy 80002 1/2"-3/4" NPT (optional) alloy 80003 1"-2" NPT (optional) alloy 80011 2 1/2"-4" NPT (optional) alloy 80004 1/2"-3/4" BSPT HSS (optional) HSS 80005 1"-2" BSPT HSS (optional) HSS 80013 2 1/2"-4" BSPT HSS (optional) HSS 80006 1/2"-3/4" NPT HSS (optional) HSS 80007 1"-2" NPT HSS (optional) HSS 80015 2 1/2"-4" NPT HSS (optional) HSS 80016 1/4"-3/8" BSPT(optional) (optional) alloy 80017 1/4"-3/8" NPT(optional) (optional) alloy 80017 1/4"-3/8" NPT(optional) (optional)
