Quality Machine Tools
Features
♦ Accurate threading of gas, water, oil, stainless pipe.
♦ Threading completed in one operation.
♦ Chuck: Impact Chuck and exchangeable Chuck Jaw.
♦ Gear box driving.
♦ Induction motor.
♦ Machine maintains the ruggedness of the industry workhorse while adding the features that makes
the threading operation more productive.
♦ Large chip tray and oil reservoir makes machine ideal for longer uninterrupted threading.
♦ High clearance carriage making the threading operation easier and a generous top cover area that
is ideal for keeping tools and work related materials handy.
♦ Universal applicable, can also work on workbench.
♦ POWDER COATING, instead of traditional painting, healthy, environmental friendly.
♦ AUTOMATIC type DIE HEAD, 2 heads equipped.
♦ Constant oil flow, through the die head, with an integral oil reservoir.
♦ CE Approved.
Specifications
Main Parameters | Paramters Content |
Pipe Capacity | 2 1/2"-6" |
Applicable Threader Standard | BSPT, NPT |
Output Power | 1100W |
Speed | 5/17.5 RPM |
Voltage | 380V~ or 220V~ Three phase |
Frequency | 50Hz or 60Hz |
Switches | FOR/OFF and Safety Foot Switch optional |
Die | Alloy or HSS |
Cutter | Wheel type, self-centering |
Reamer | 2 1/2"-6" cone blade, 5-flute cone optional |
Oil Pump | gerotor oil pump |
Gross/Net Weight | 220/200Kg |
Packing Size | 1100x700x700mm |
Standard Accessories
♦ Two pcs of automatic type Die Head
♦ One set of 2 1/2”-4” Die
♦ One set of 5”-6” Die
♦ One set of 2 1/2"-6"Cutter Kit
♦ One set of 2 1/2"-6"Reamer Kit
♦ Four pcs of Tubular Supporter
Optional Accessories
♦ Foot Switch
♦ Threader Stands
Ordering information
Code | Model No. | Description | Weight |

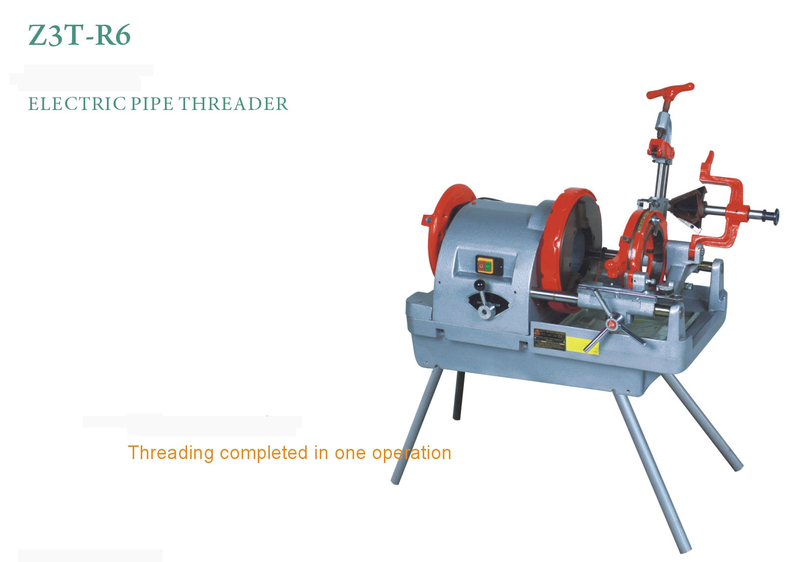

60002 | Z3T-R6 | complete set.2 1/2"-6",BSPT 380V-50HZ or 60HZ | 200KG |
Accessories
Code | Model No. | Description |
60200 | 6" | Front chuck kit |
60220 | 6" | Rear chuck kit |
60203 | 6" | Front chuck jaws 3pcs/set |
50300 | 1/2"-4" | Gear box kit(same as Z3T-R4) |
60400 | 5"-6" | Die head, automatic |
50400B | 2 1/2"-4" | Die head, automatic(same as Z3T-R4) |
60500 | 6" | Reamer kit |
60600 | 6" | Pipe Cutter |
60700 | 6" | Length change apparatus |
50801 | 6" | 380V/50HZ motor |
80302 | | Oil pump |
80607 | | Cutter wheel |
Dies Set
Code | Size | Material |
80009 | 2 1/2"-4" BSPT | alloy |
80011 | 2 1/2"-4" NPT(optional) | alloy |
80018 | 5"-6" BSPT | alloy |
80019 | 5”-6” NPT(optional) | alloy |
80013 | 2 1/2"-4" BSPT HSS(optional) | HSS |
80015 | 2 1/2"-4" NPT HSS(optional) | HSS |
80020 | 5"-6" BSPT HSS(optional) | HSS |
80021 | 5"-6" NPT HSS(optional) | HSS |
