Features
♦ Accurate threading of gas, water, oil, stainless pipe.

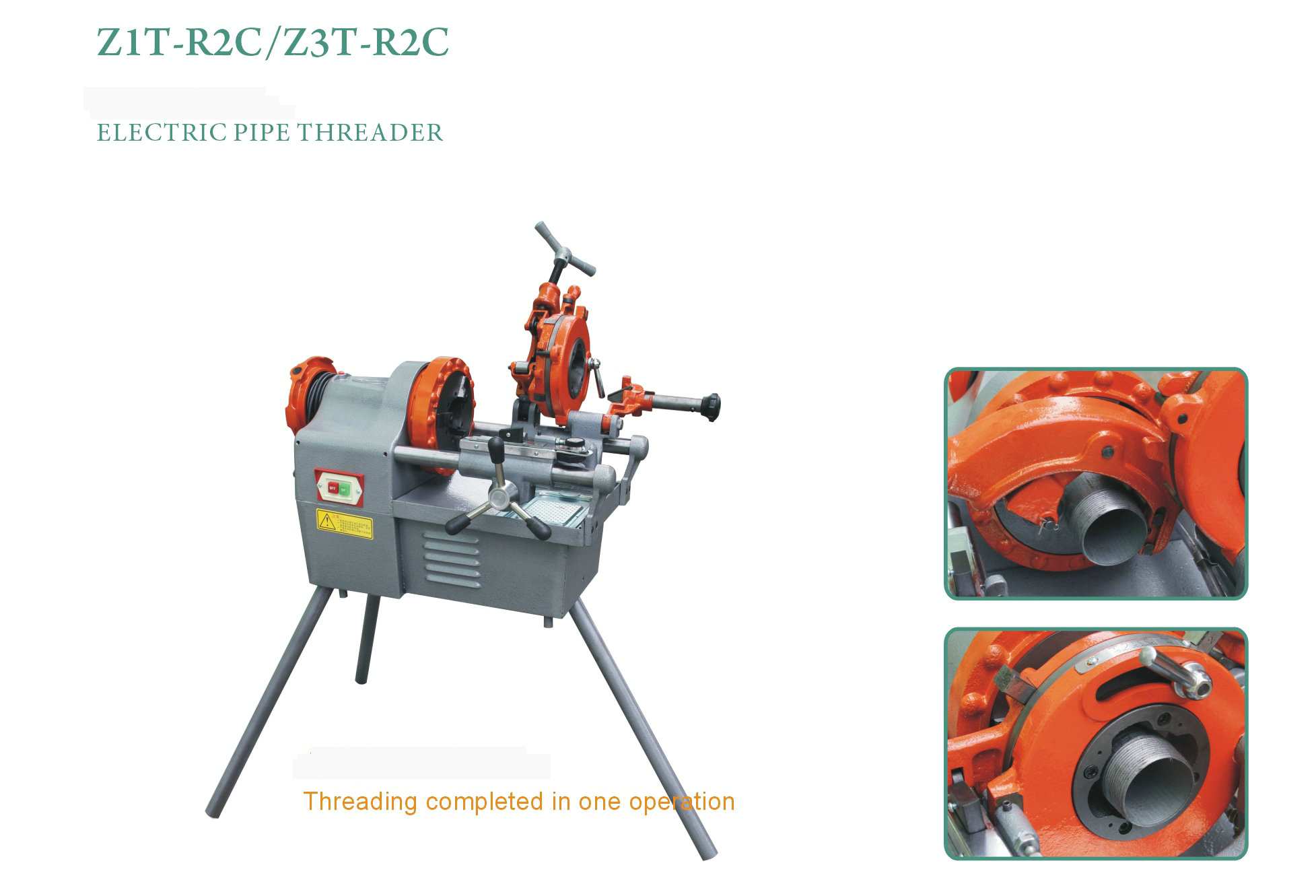

♦ Threading completed in one operation.
♦ Chuck: Impact Chuck and exchangeable Chuck Jaw.
♦ Gear box driving.
♦ Induction motor.
♦ Compact design with cast aluminum body. Easy and fast transport and set-up.
♦ Universal applicable, can also work on workbench.
♦ POWDER COATING, environmental friendly.
♦ AUTOMATIC type DIE HEAD, 1 head equipped.
♦ Constant oil flow, through the die head, with an integral oil reservoir.
♦ CE Approved.
♦ Patent gearbox.
Specifications
Main Parameters | Paramters Content |
Pipe Capacity | 1/2"-2" |
Applicable Threader Standard | BSPT,NPT |
Output Power | 750W |
Efficient Speed | 30 RPM |
Voltage | 380V~Three phase |
Frequency | 50Hz or 60Hz |
Switches | FOR/OFF and Safety Foot Switch optional |
Die | Alloy or HSS |
Cutter | Wheel type, self-centering |
Reamer | 1/2"-2" cone blade, 5-flute cone optional |
Oil Pump | Gerotor Oil Pump |
Gross/Net Weight | 78/65Kg |
Packing Size | 720x480x560mm |
Standard Accessories
♦ one automatic type Die Head
♦ One set of 1/2”-3/4” Die
♦ One set of 1”-2” Die
♦ One set of 1/2"-2"Cutter Kit
♦ One set of 1/2"-2"Reamer Kit
♦ Three pcs of tubular supporter
Optional Accessories
♦ Foot Switch
♦ Nipple Chuck Kit
♦ Threader Stands
Ordering information
Code | Model No. | Description | Weight |
20002 | Z3T-R2C | complete set.1/2"-2",BSPT 220V-50HZ or 60HZ | 65KG |
Accessories
Code | Model No. | Description |
20200 | 1/2"-2" | Front chuck kit |
20220 | 1/2"-2" | Rear chuck kit |
20203 | 1/2"-2" | Front chuck jaws 3pcs/set |
20300 | 1/2"-2" | Gear box kit |
20400 | 1/2"-2" | Die head, automatic |
20500 | 1/2"-2" | Reamer kit |
20600 | 1/2"-2" | Cutter |
20700 | 1/2"-2" | Length change apparatus |
20801 | 2" | 380V/50HZ motor |
80302 | | Oil pump |
80607 | | Cutter wheel |
20203 | 2" | Front chuck jaws(3 pcs/set) |
Dies Set
Code | Size | Material |
80000 | 1/2"-3/4" BSPT | alloy |
80001 | 1"-2" BSPT | alloy |
80002 | 1/2"-3/4" NPT (optional) | alloy |
80003 | 1"-2" NPT (optional) | alloy |
80004 | 1/2"-3/4" BSPT HSS (optional) | HSS |
80005 | 1"-2" BSPT HSS (optional) | HSS |
80006 | 1/2"-3/4" NPT HSS (optional) | HSS |
80007 | 1"-2" NPT HSS (optional) | HSS |
80016 | 1/4"-3/8" BSPT(optional) (optional) | alloy |
80017 | 1/4"-3/8" NPT(optional) (optional) | alloy |
