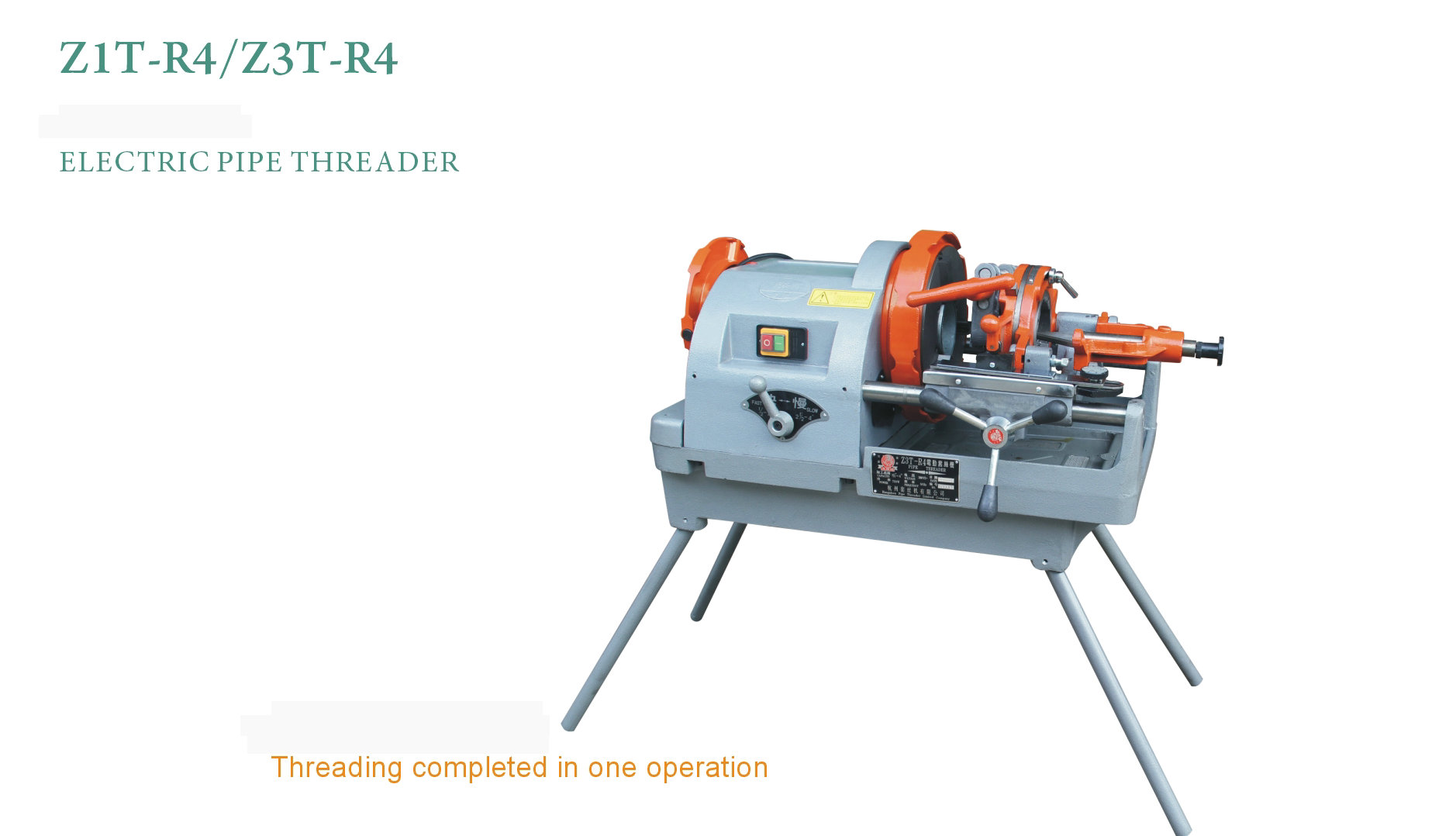

Z3TR4
Quantity: Features
♦ Accurate threading of gas, water, oil, stainless pipe.
♦ Threading completed in one operation.
♦ Chuck: Impact Chuck and exchangeable Chuck Jaw.
♦ Gear box driving.
♦ Induction motor.
♦ Machine maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive.
♦ Large chip tray and oil reservoir makes machine ideal for longer uninterrupted threading.
♦ High clearance carriage making the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy.
♦ Universal applicable, can also work on workbench.
♦ POWDER COATING, instead of traditional painting, healthy, environmental friendly.
♦ AUTOMATIC type DIE HEAD, 2 heads equipped.
♦ Constant oil flow, through the die head, with an integral oil reservoir.
♦ CE Approved.
Specifications
Main Parameters
Paramters Content
Pipe Capacity
1/2"-4"
Applicable Threader Standard
BSPT, NPT
Output Power
750W
Speed
8.5/24 RPM
Voltage
380V～ Three pahse
Frequency 50Hz or 60Hz Switches
FOR/OFF and Safety Foot Switch optional
Die
Alloy or HSS
Cutter
Wheel type, self-centering
Reamer
1/2"-4" cone blade, 5-flute cone optional
Oil Pump
Gerotor Oil Pump
Gross/Net Weight
190/170Kg Packing Size
1100x680x660mm
Standard Accessories
♦ Two pcs of automatic type Die Head
♦ One set of 1/2”-3/4” Die
♦ One set of 1”-2” Die
♦ One set of 2 1/2”-4” Die
♦ One set of 1/2"-4"Cutter Kit
♦ One set of 1/2"-4"Reamer Kit
♦ Four pcs of Tubular Supporter
Optional Accessories
♦ Foot Switch
♦ Threader Stands
Ordering information
Code Model No. Description Weight 50002 Z3T-R4 complete set.1/2"-4",BSPT 380V-50HZ or 60HZ 170KG Accessories
Code Model No. Description 50200 1/2"-4" Front chuck kit 40220 1/2"-4" Rear chuck kit 50203 1/2"-4" Front chuck jaws 3pcs/set 50300 1/2"-4" Gear box kit 50400A 1/2"-2" Die head, automatic 50400B 2 1/2"-4" Die head, automatic 50500 1/2"-4" Reamer kit 50600 1/2"-4" Pipe Cutter 50700 1/2"-4" Length change apparatus 50801 4" 380V/50HZ motor 80302
Oil pump 80607
Cutter wheel Dies Set
Code Size Material 80000 1/2"-3/4" BSPT alloy 80001 1"-2" BSPT alloy 80002 1/2"-3/4" NPT (optional) alloy 80003 1"-2" NPT (optional) alloy 80004 1/2"-3/4" BSPT HSS (optional) HSS 80005 1"-2" BSPT HSS (optional) HSS 80006 1/2"-3/4" NPT HSS (optional) HSS 80007 1"-2" NPT HSS (optional) HSS 80016 1/4"-3/8" BSPT(optional) (optional) alloy 80017 1/4"-3/8" NPT(optional) (optional) alloy
