Quality Machine Tools
Feature:

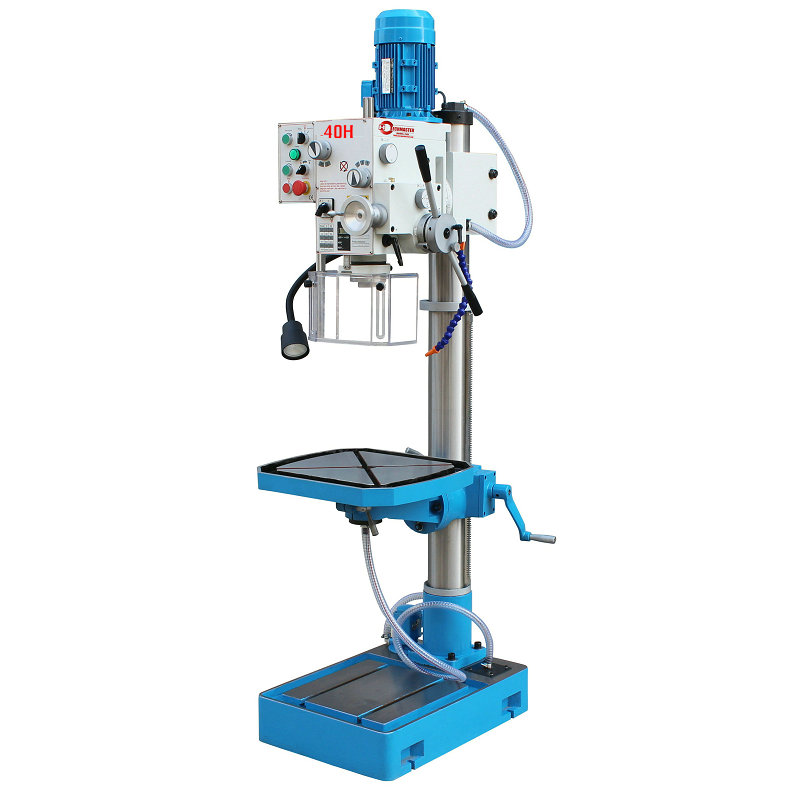

• Heavy duty gear drive column drilling machine<o:p>
• Lubrication gear head with quite operation<o:p>
• Adjustable drill depth stop with scale<o:p>
• Powerful 2-speed motor<o:p>
• Equipped with safety spindle guard, work lamp, coolant system <o:p>
• Depth ruler easy to read at front panel<o:p>
• Working table rotates 360° and swivels ±45° <o:p>
• Mechanical spindle sleeve feed, tapping device<o:p>
• Rigid construction of base with coolant tank
Model No.<o:p> | Z40H TOP |
Drilling capacity<o:p> | 40mm |
Thread cutting max. <o:p> | M20 |
Spindle taper <o:p> | MT4 |
Spindle speeds <o:p> | (12) 75-3200rpm<o:p> |
Spindle feed <o:p> | 0.10/0.18/0.26mm/r |
Distance spindle to column <o:p> | 300mm |
Distance spindle to table <o:p> | 715mm |
Distance spindle to base <o:p> | 1180mm<o:p> |
Spindle stroke <o:p> | 120mm<o:p> |
Column diameter <o:p> | 115mm<o:p> |
Table size<o:p> | 500×460mm<o:p> |
T-slot<o:p> | 14mm<o:p> |
Working surface of base<o:p> | 360×535mm<o:p> |
Motor power <o:p> | 1.1/1.5kw |
Weight<o:p> | 340kg |
