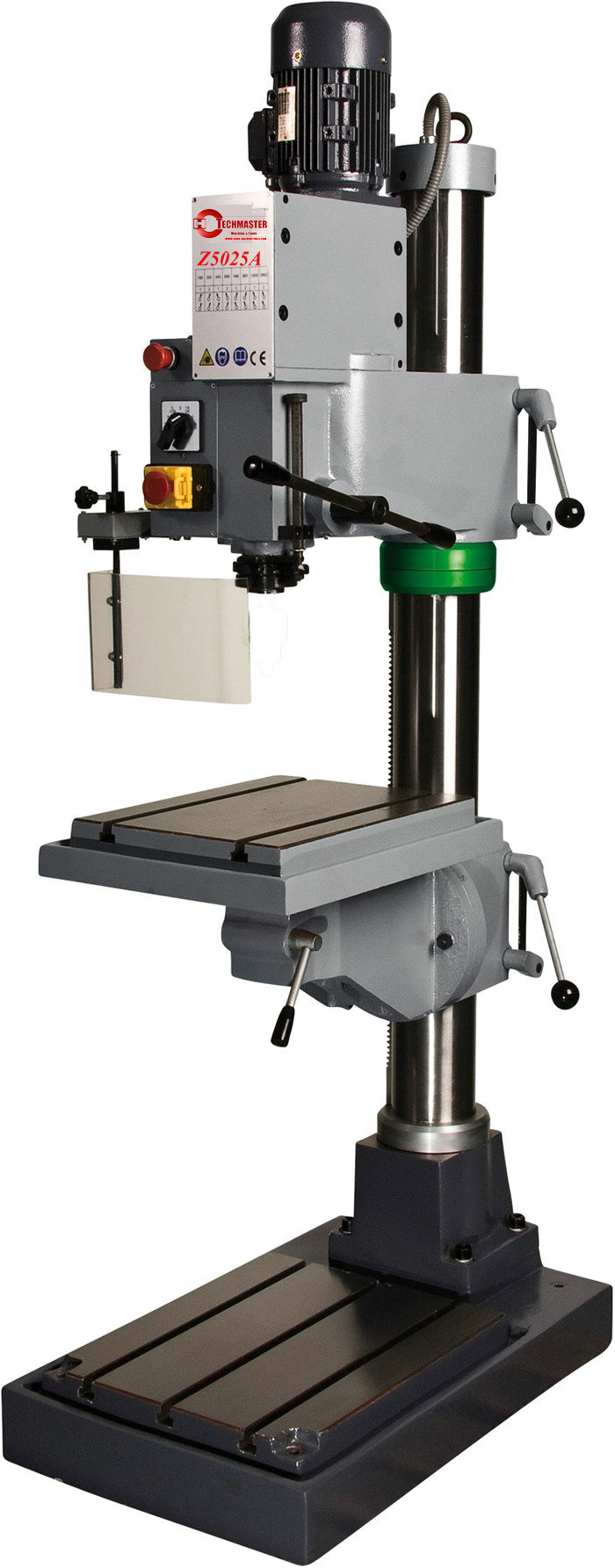

Z5025A

Quantity:
gear wheel driven column drilling machine is supplied with a powerful 2 speed motor. The spindle can turn both clockwise and counter clockwise, plus the machine is equipped with a tool ejector and a high quality polycarbonate drill chuck cover that complies with the latest safety standard, the emergency stop can be reached easily. The table height can be adjusted over a rack and clamped with an eccentric clamp, The head can be rotated; it is also supplied with a cooling table.
  • autostop switch on drill chuck cover
  • depth stop
  • 8 step variable speed
  • low noise motor
  • tilting and rotating table
  • adjustable table height
  • with 2 speed motor
  • clockwise and counter clockwise rotation
  • telescopic chuck cover
  • seprate emergency stop
  • gear wheel driven
  • Motor power 0,75 kW
    Drilling capacity 25 mm
    Drilling depth 150 mm
    Spindle taper MT3
    Number of speeds 2 x 8
    Spindle speed range 100 - 2900 rpm
    Column diameter 117 mm
    Distance spindle-column 315 mm
    Max. distance spindle table 660 mm
    Table size 420 x 320 lxw
    Base dimensions l x w 550 x 780 mm
    Height 2070 mm
    Packaging dimensions l x w x h 1950 x 700 x 1050 mm
    Net weight 54kg
    Voltage 400 V
