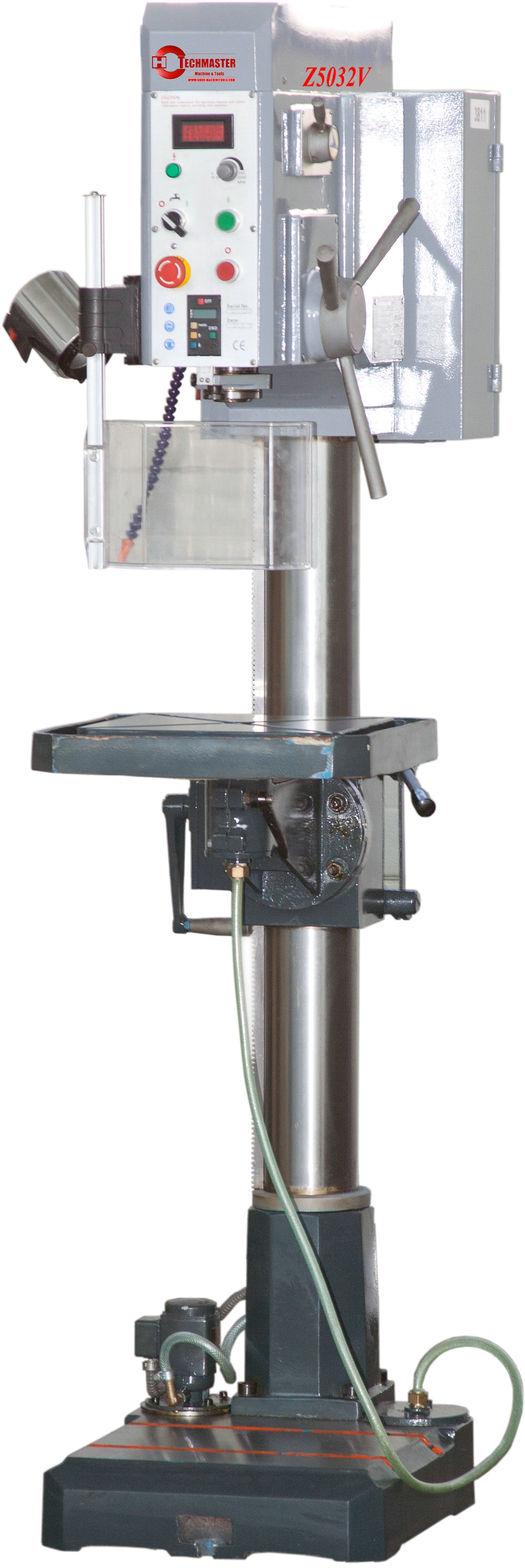

Z5032V

Quantity:
continously adjustable spindle speed
digital readout for drilling depth and revs
manual feed
mechanism to cast out
table rotates around own center, swivels +/- 45° and is height adjustable
coolant equipment
working light
T-slots in machine base
tiltable drill protection cover
drill chuck
operator tools

drilling capacity: 32 mm
spindle taper: MK 3
spindle speed: 55-350 / 350-2.300 r/min
spindle stroke: 115 mm
distance spindle-table: 730 mm
distance spindle-base: 1.300 mm
throat depth: 290 mm
diameter column: 120 mm
table: 330 x 330 mm
machine base: 380 x 350 mm
motor power: 1,1 kW
length: 850 mm
width: 550 mm
height: 1.900 mm
weight: 310 kg
