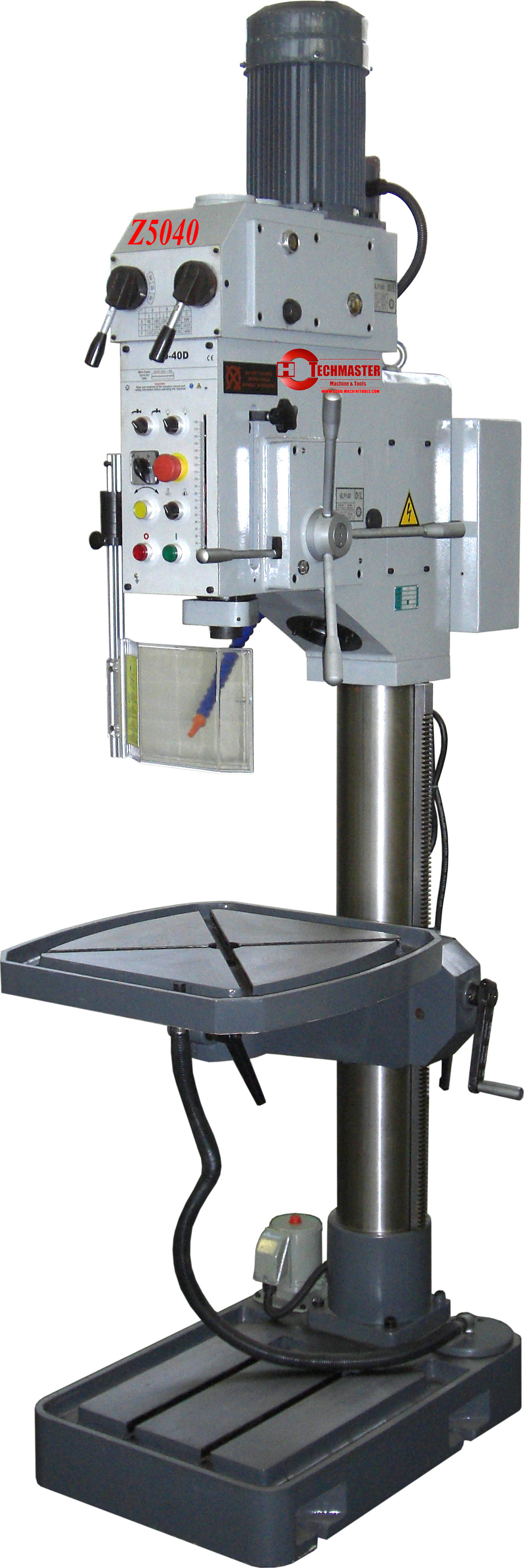

Z5040
Quantity: geared driven machine
tapping function
aut. spindle feed with mech. clutch
table rotates 360°, swivels 45° and is height adjustable
coolant equipment
working light
T-slots in machine base
tiltable drill protection cover
drill chuck
arbor
operator tools
drilling capacity: 40/45 mm tapping capacity: M 24 spindle taper: MK 4 spindle speed (st.): 50–1.450 (18) 1/min spindle feed: 0,1 / 0,2 mm/1 spindle stroke: 180 mm distance spindle-table: 770 mm distance spindle-base: 1.215 mm throat depth: 350 mm diameter column: 170 mm table: 560 x 560 mm machine base: 730 x 500 mm length: 940 mm width: 560 mm height: 2.260 mm motor power: 0,85 / 1,5 kW weight: 460 kg
