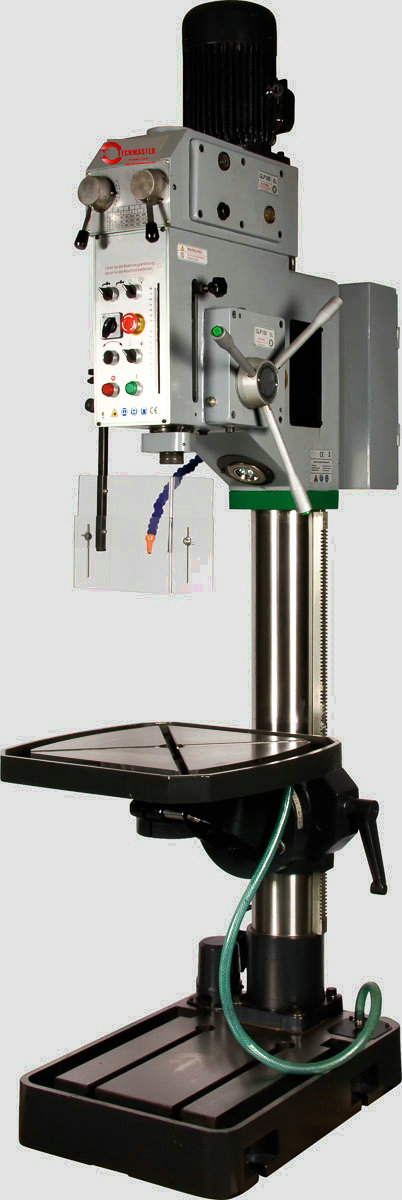

Z5040E

Quantity:
 industrial gear wheel driven drilling machine has hardened and ground gear wheels, the table can be rotated and has t-slots and a coolant drain. The drilling depth can be set using the adjustable depth stop, and is fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise. The drill chuck cover is equipped with an auto stop switch.
  • cooling system
  • electric table height adjustment
  • electromagnetic feed
  • 2 speed motor
  • spindle turns clockwise and counter clockwise
  • rotating and tilting table
  • machine worklight
  • table clamped with eccentric clamp
Motor power 1,5 kW
Drilling capacity 40 mm
Tapping capacity M 24
Drilling depth 180 mm
Spindle taper MT 4
Number of speeds 18
Spindle speed range 50 - 1450 rpm
Feed range 0,1 - 0,2 mm/r
Column diameter 150 mm
Distance spindle-column 350 mm
Table size 560 x 560 lxw
Base dimensions l x w 730 x 500 mm
Height 2400 mm
Packaging dimensions l x w x h 730 x 560 x 2220 mm
Net weight 460 kg
Voltage 400 V
