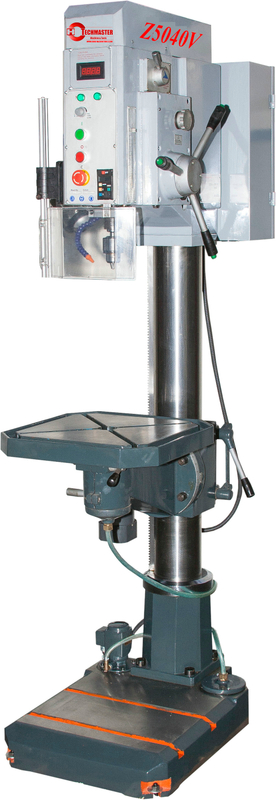

Z5040V
Quantity: continously adjustable spindle speed
digital readout for drilling depth and revs
3 automatic feeds (0,1/0,2/0,3 mm/rev)
tapping unit
mechanism to cast out
table is manual and motorized height adjustable
table rotates around own center and swivels +/- 45°
coolant equipment
working light
T-slots in machine base
tiltable drill protection cover
drill chuck
operator tools
drilling capacity: 40 mm spindle taper: MK 4 spindle speed: 55-350 / 350-2300 r/min spindle stroke: 140 mm distance spindle-table: 715 mm distance spindle-base: 1.025 mm throat depth: 310 mm diameter column: 140 mm table: 380 x 380 mm machine base: 400 x 430 mm length: 900 mm width: 700 mm height: 2.000 mm motor power: 1,5 kW weight: 380 kg
