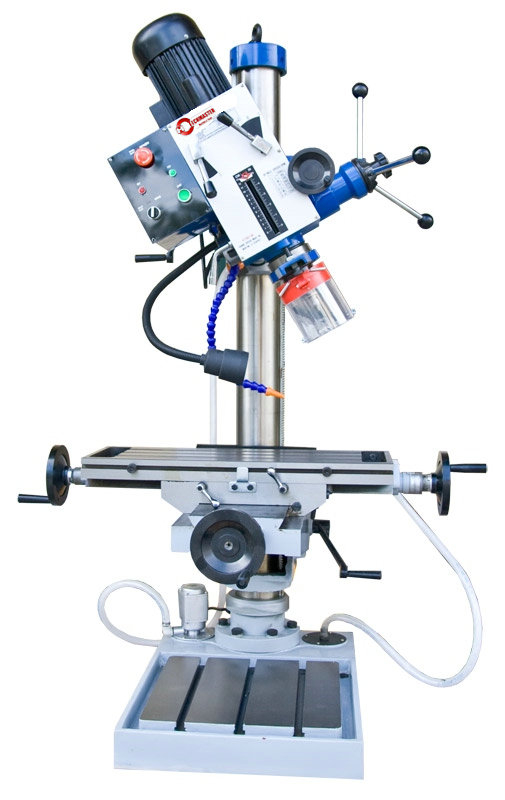

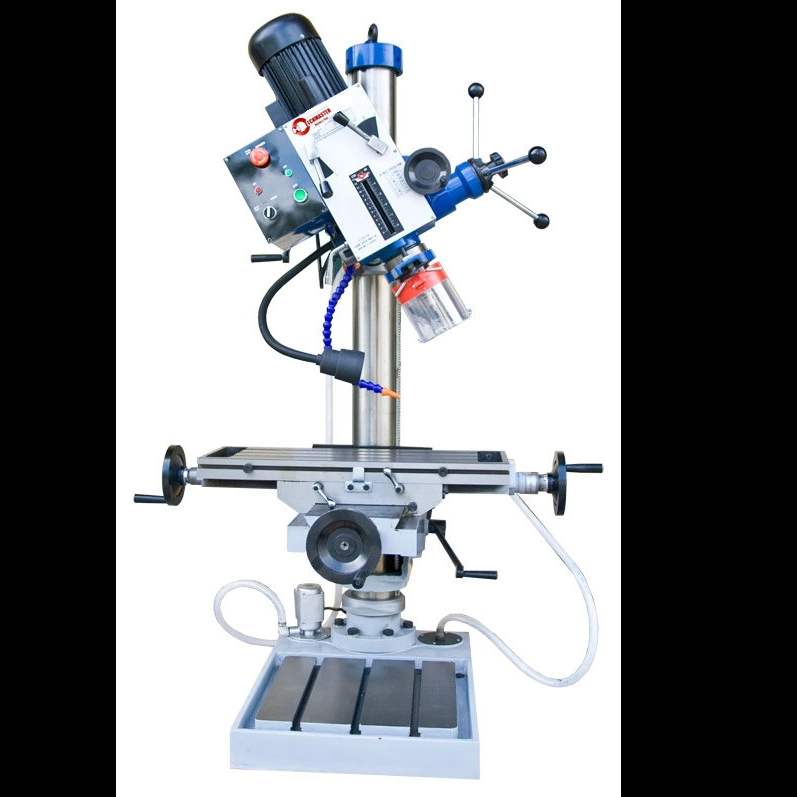

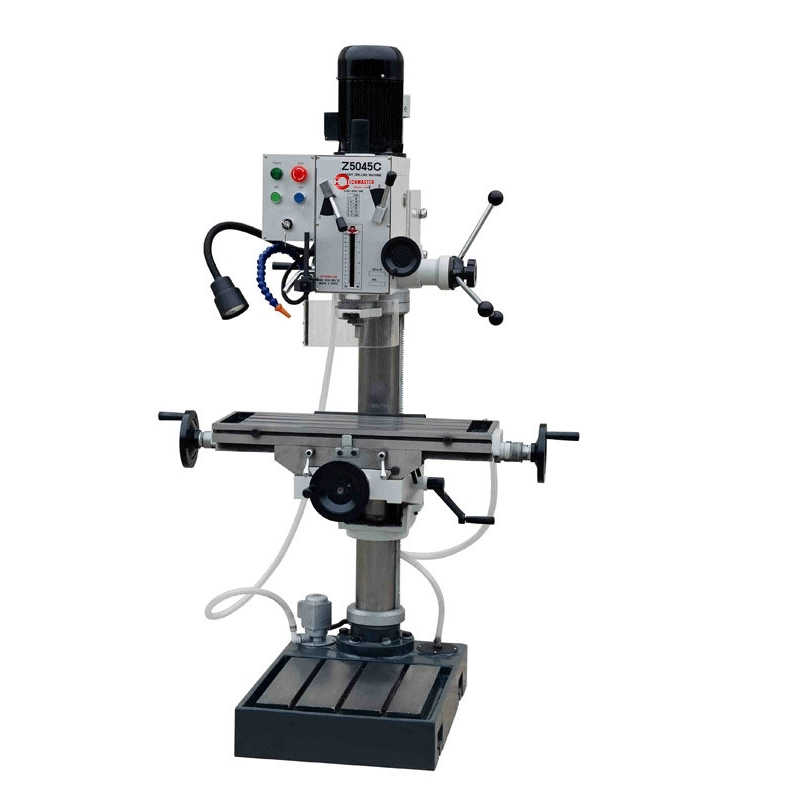

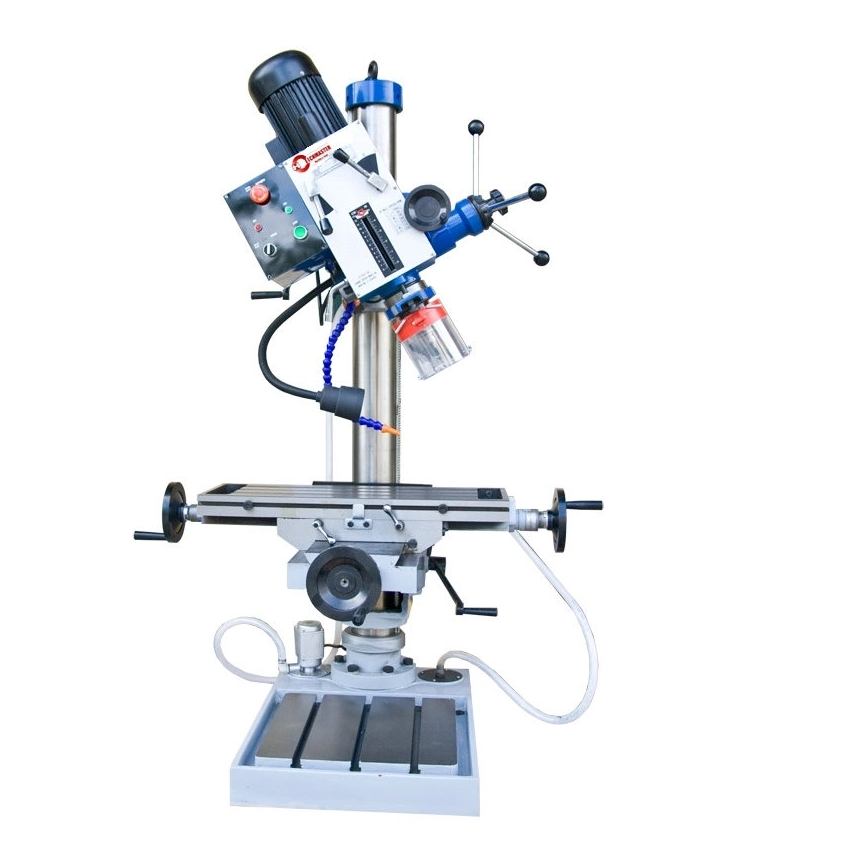

Z5045C Economical Drilling machine ( CROSS WORKTABLE)

Quantity:
  • Z5032C-Z5040C-Z5045C



 Vertical drilling machine Z5032C  Z5040C  Z5045C (cross worktable)

Specification

ITEM

Z5032C

Z5040C

Z5045C

Max.drilling capacity

32mm

40mm

45mm

Spindle taper

M.T.3 or R8

M.T.4

M.T.4

Spindle travel

130mm

130mm

130mm

Step of spindle speed

6

6

6

Range of spindle speed  50Hz

80-1250 r.p.m

80-1250 r.p.m

80-1250 r.p.m

                                     60Hz

95-1500 r.p.m

95-1500 r.p.m

95-1500 r.p.m

Min.distance from spindle axis to column

283mm

283mm

283mm

Max.distance from spindle nose to worktable

700mm

700mm

700mm

Max.distance from spindle nose to stand table

1125mm

1125mm

1125mm

Max.travel of headstock

250mm

250mm

250mm

Swivel angle of headstock(horizontal/perpendicular)

360°/±90°

360°/±90°

360°/±90°

Max.travel of worktable bracket

600mm

600mm

600mm

Table size

700×240mm

700×240mm

700×240mm

Size of stand worktable of avaliability

417×416mm

417×416mm

417×416mm

Forward and afterward travel of worktable

205mm

205mm

205mm

Left anf right travle of worktable

500mm

500mm

500mm

Vertical travel of worktable

570mm

570mm

570mm

Motor Power

0.75KW(1HP)

1.1KW(1.5HP)

1.5KW(2HP)

Voltage/Frequency

As customer's requirement

As customer's requirement

As customer's requirement

speed of motor

1400 r.p.m

1400 r.p.m

1400 r.p.m

Net weight/Gross weight

430kg/500kg

432kg/502kg

435kg/505kg

Packing size

1850×750×1000mm

1850×750×1000mm

1850×750×1000mm

Loading amount

18pcs/20'container

18pcs/20'container

18pcs/20'container





You may find the accessories as you like:

Standdard accessories:
Drill chuck 1-13mm/B16
Draw bar
Allen wrenchs
Wedge
Tie rod

Optional accessories:
Halogen lamp
Coolant system
58pcs clamping kits
Face milling cutter Φ63mm
Milling chuck(8pcs/set)
H/V precision rotary table HV-150mm
Auto-tapping electrical
Millingl vice QH-125mm
Double speed motor
