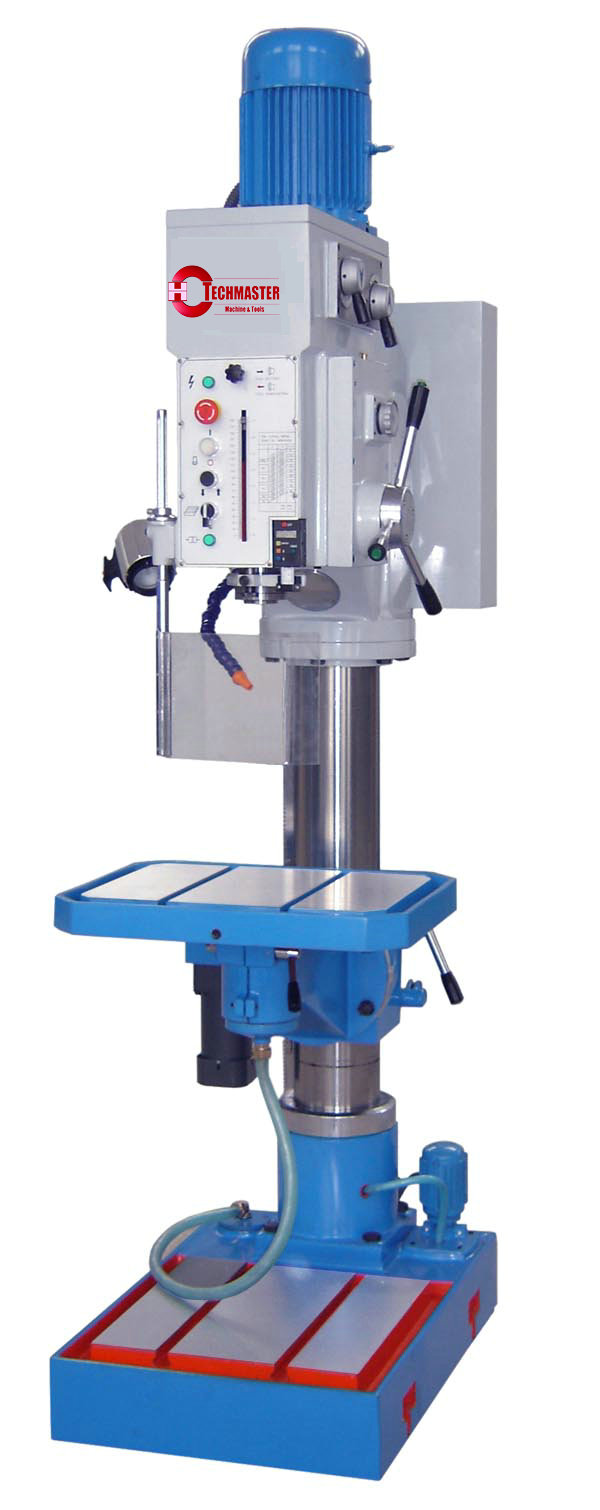

Specification | Model | Z5030A | Z5035A | Z5040A | Z5050A |
Max. drilling capacity | mm | 30 | 35 | 40 | 50 |
Max. tapping capacity | mm | M18 | M20 | M24 | |
Distance from spindle axis to column line | mm | 315 | 330 | 360 | 360 |
Max. distance from spindle nose to table | mm | 520 | 610 | 600 | 600 |
Max. distance from spindle nose to base plate | mm | 1080 | 1150 | 1215 | 1205 |
Max. travel of spindle | mm | 135 | 150 | 180 | 180 |
Distance of worktable | mm | 480 | 540 | 560 | 525 |
Swivel of table and table rest | | ± 45º | |||
Spindle taper | | MT3 | MT4 | ||
Spindle speed steps | | 12 | |||
Spindle speed | rpm/min | 70-2600 | 70-2600 | 42-2050 | 42-1865 |
Spindle feed range | (mm/r) | 0.1; 0.2; 0.3 | 0.07; 0.15; 0.26; 0.4 | ||
Diameter of column | mm | 125 | 140 | 160 | 170 |
Table size | mm | 374x374 | 424x424 | 370x500 | 370x500 |
Dimention of T-slot of table and base plate | | 2-14 2-16 | |||
Motor power | kw | 1.1 | 1.5 | 2.2 | 2.2 |
Net/gross weight | kg | 440/500 | 670/730 | 740/800 | 800/860 |
Packing size | | 65x105x195 | 70x115x215 |
