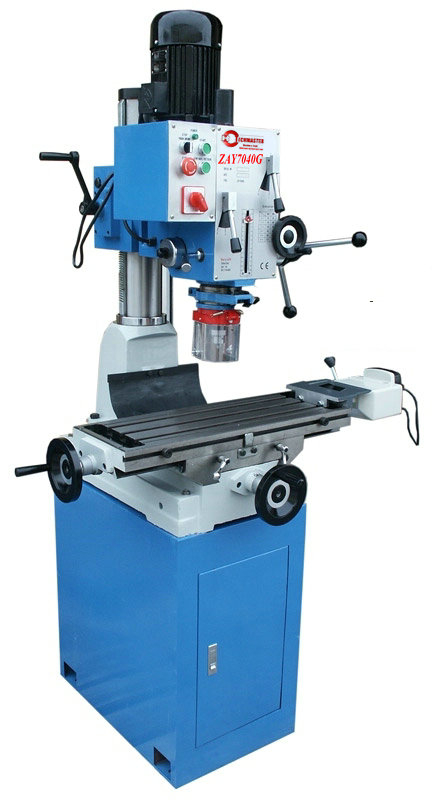

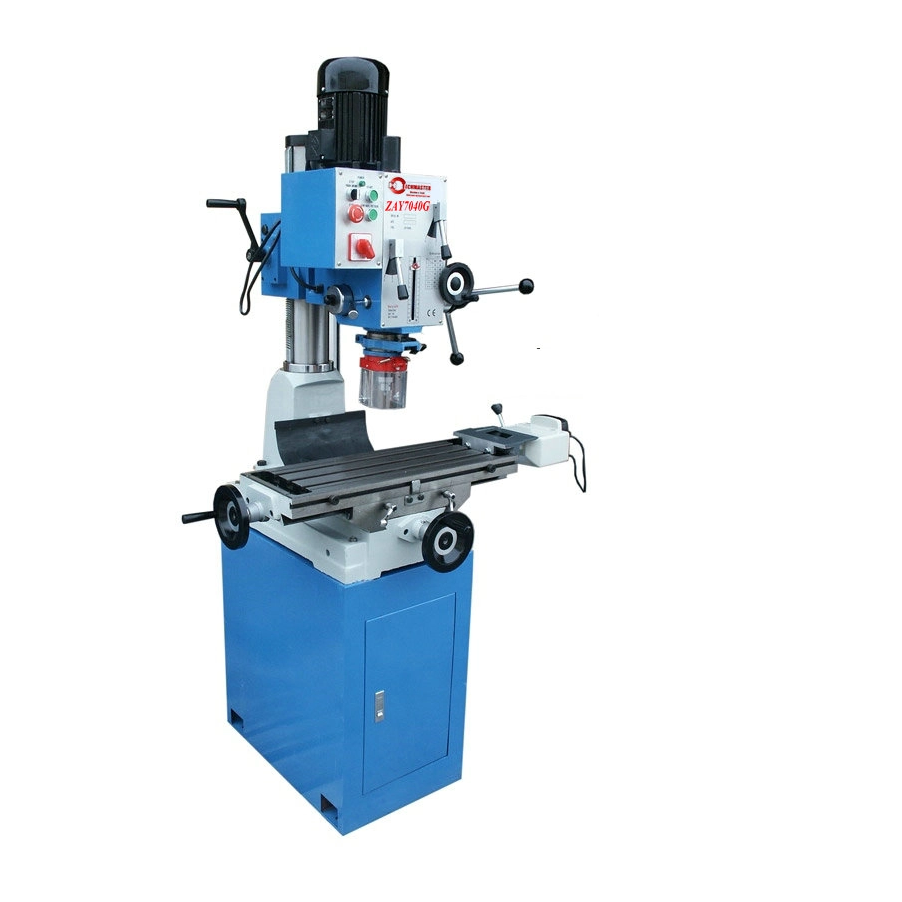

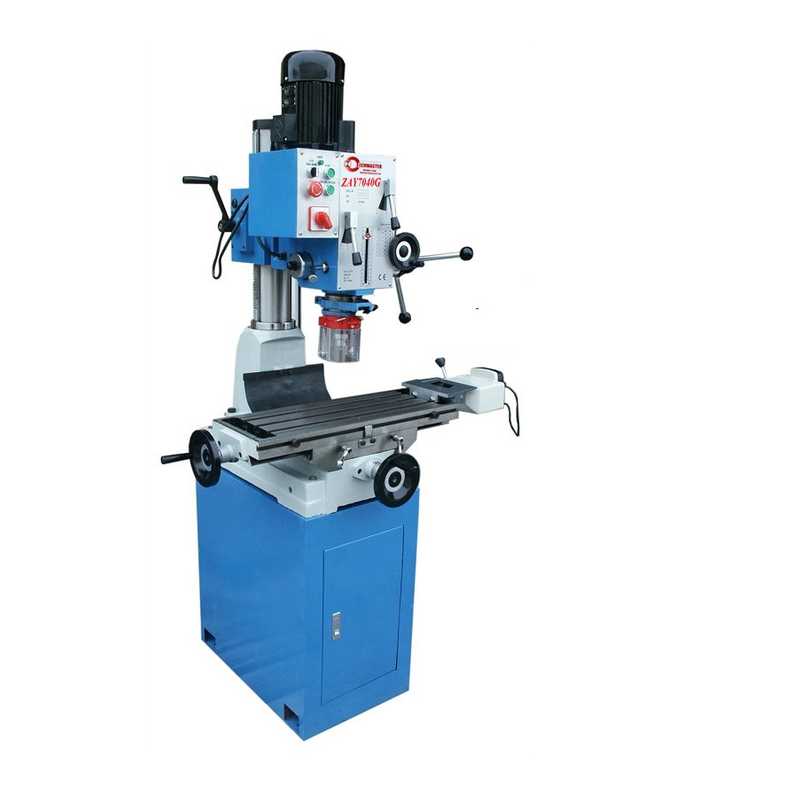

Solid drilling and moulding machine with 90 ° pivoting drive head
for the commercial demand.

Technical data:
Spindle cone MT 4
Motor output power S1 1,5 kW, 400 V
Weight 300 kg
Table dimensions 800 x 240 mm
max. workpiece height 430 mm
Speeds 6 80 till 1575 rpm
80/150/260/450/900/1575 U/min
Max. drilling capacity in steel 40 mm
Worktable travel x=585mm, Y= 205 mm

Optional: equipment
2 speed motor
coolant tank
underframe with coolant tub
