ZAY7040PF
Quantity: Specifications:

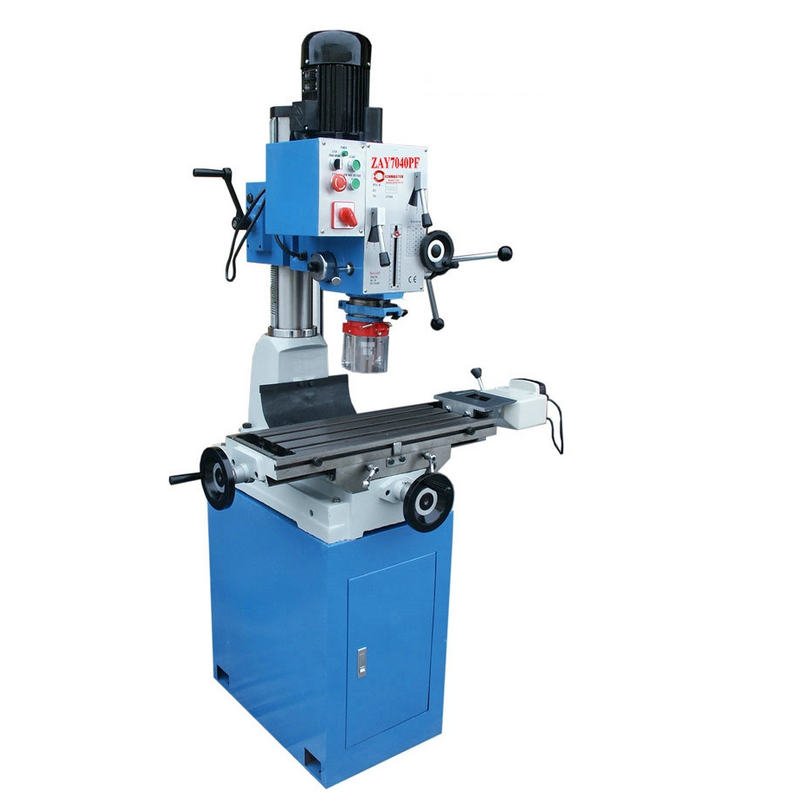

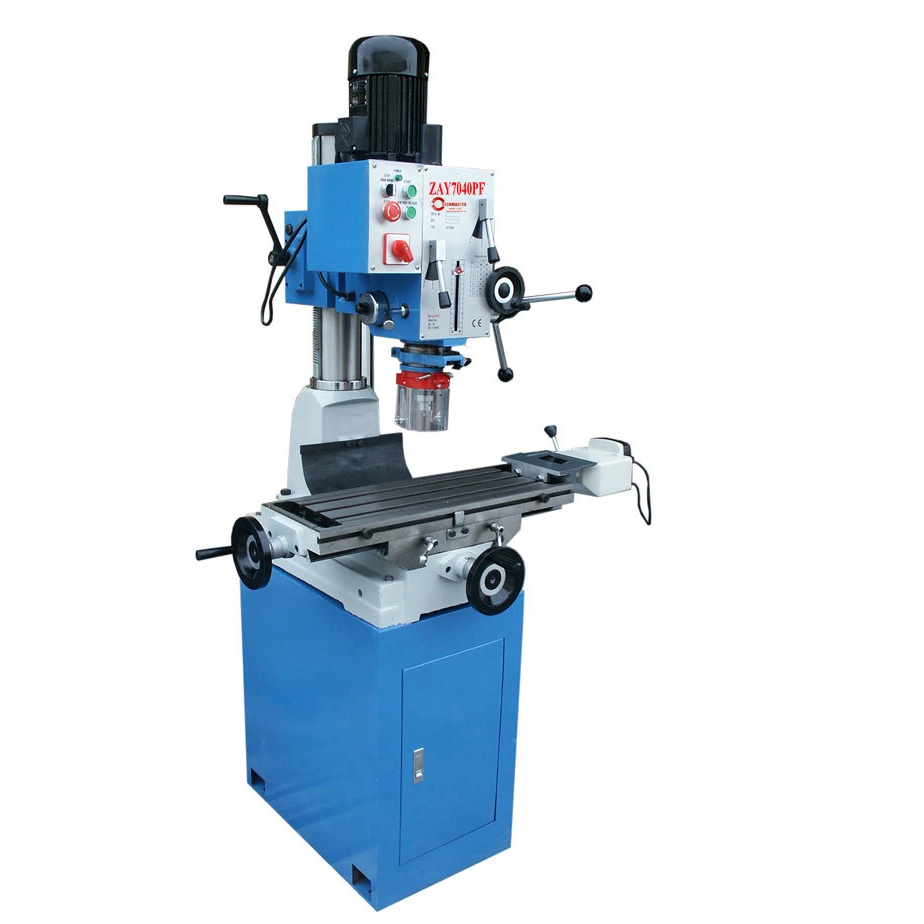

Solid drilling and moulding machine with 90 ° pivoting drive head
for the commercial demand. With halogenlamp and coolant tank.
Price without underframe.
Technical data:
Spindle cone MT 4
Motor output power S1 1,5 kW, 400 V
Weight 310 kg
Table dimensions 800 x 240 mm
max. workpiece height 680 mm
Speeds 12
80/150/260/480/900/1575/
160/300/520/960/1800/3150 U/min
Max. drilling capacity in steel 40 mm
Worktable travel x=585mm, Y= 205 mm
Optional equipment:
Underframe with coolant tubSpecifications:
Solid drilling and moulding machine with 90 ° pivoting drive head
for the commercial demand. With halogenlamp and coolant tank.
Price without underframe.
Technical data:
Spindle cone MT 4
Motor output power S1 1,5 kW, 400 V
Weight 310 kg
Table dimensions 800 x 240 mm
max. workpiece height 680 mm
Speeds 12
80/150/260/480/900/1575/
160/300/520/960/1800/3150 U/min
Max. drilling capacity in steel 40 mm
Worktable travel x=585mm, Y= 205 mm
Optional equipment:
Underframe with coolant tub
