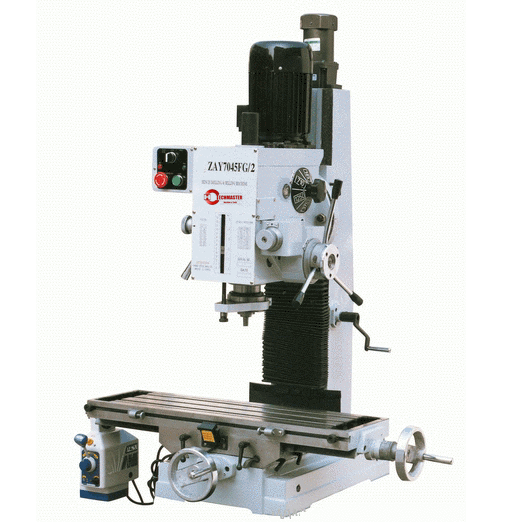

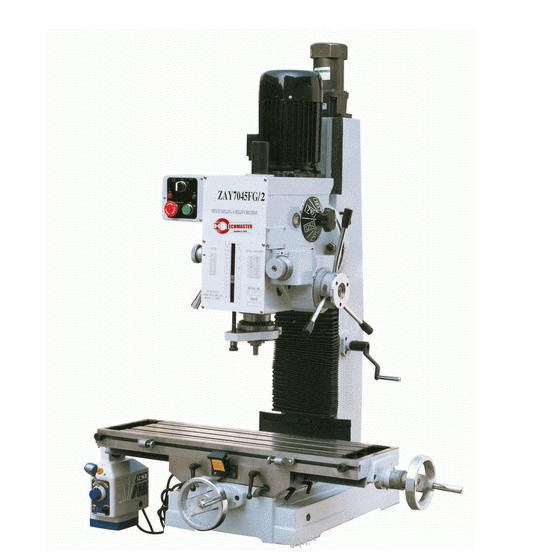

ZAY7045FG/2 AUTO FEEDING MILLING AND DRILLING MACHINE
Quantity: -
ZAY7045FG/2 AUTO FEEDING MILLING AND DRILLING MACHINE
Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
headstock up and down
x axis power feederAnd cyclic change of feeding speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Model ZAY7045FG/2 ZAY7040FG/2 ZAY7032FG/2 Drilling capacity 45mm 40mm 32mm Max. boring diameter 70mm 60mm 50mm Face milling capacity 80mm 80mm 63mm End milling capacity 32mm 32mm 20mm Max. distance from spindle nose to table 450mm 450mm 450mm Min. distance from spindle axis to column 260mm 260mm 260mm Spindle travel 130mm 130mm 130mm Spindle taper M.T.4 or R8 M.T.4 or R8 M.T.4 or R8 Step of speed 6 6 6 Range of spindle speed 50Hz/60Hz 80-1250r.p.m.
95-1500r.p.m80-1250r.p.m.
95-1500r.p.m80-1250r.p.m.
95-1500r.p.mSpeed-step of automatic feeding of spindle 6 6 6 Automatic feeding amount of spindle 0.06 -0.03mm/r 0.06 -0.03mm/r 0.06 -0.03mm/r Swivel angle of headstock(Headstock perpendicular ±90º ±90º ±90º Auto up and down of headstock 240mm/min 240mm/min 240mm/min Power feed attachment with variable speed Stepless Stepless Stepless Power feed attachment with machinery speed-change 6 6 6 Feeding range of power feed attachment with machinery speed of table 23-190mm/min 23-190mm/min 23-190mm/min Size of table 800×240mm
700×240mm800×240mm
700×240mm800×240mm
700×240mmForward and backward travel of table 175mm 175mm 175mm Left and right travel of table 500mm ; 400mm 500mm ; 400mm 500mm ; 400mm Power 1.5KW(2HP) 1.5KW(2HP) 1.5KW(2HP) Voltage/Frequency As customer's requirement Overall height (Without stand) 1020mm 1020mm 1020mm Net weight 325kg 323kg 320kg Gross weight 375kg 373kg 370kg Packing size 880×770×1140mm 880×770×1140mm 880×770×1140mm Loading amount (Size of table) 1030×832×1140mm 1030×832×1140mm 1030×832×1140mm 800 × 240mm 28pcs/20' container 28pcs/20' container 28pcs/20' container 700 × 240mm 36pcs/20' container 36pcs/20' container 36pcs/20' container Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
headstock up and down
x axis power feederAnd cyclic change of feeding speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Model ZAY7045FG/2 ZAY7040FG/2 ZAY7032FG/2 Drilling capacity 45mm 40mm 32mm Max. boring diameter 70mm 60mm 50mm Face milling capacity 80mm 80mm 63mm End milling capacity 32mm 32mm 20mm Max. distance from spindle nose to table 450mm 450mm 450mm Min. distance from spindle axis to column 260mm 260mm 260mm Spindle travel 130mm 130mm 130mm Spindle taper M.T.4 or R8 M.T.4 or R8 M.T.4 or R8 Step of speed 6 6 6 Range of spindle speed 50Hz/60Hz 80-1250r.p.m.
95-1500r.p.m80-1250r.p.m.
95-1500r.p.m80-1250r.p.m.
95-1500r.p.mSpeed-step of automatic feeding of spindle 6 6 6 Automatic feeding amount of spindle 0.06 -0.03mm/r 0.06 -0.03mm/r 0.06 -0.03mm/r Swivel angle of headstock(Headstock perpendicular ±90º ±90º ±90º Auto up and down of headstock 240mm/min 240mm/min 240mm/min Power feed attachment with variable speed Stepless Stepless Stepless Power feed attachment with machinery speed-change 6 6 6 Feeding range of power feed attachment with machinery speed of table 23-190mm/min 23-190mm/min 23-190mm/min Size of table 800×240mm
700×240mm800×240mm
700×240mm800×240mm
700×240mmForward and backward travel of table 175mm 175mm 175mm Left and right travel of table 500mm ; 400mm 500mm ; 400mm 500mm ; 400mm Power 1.5KW(2HP) 1.5KW(2HP) 1.5KW(2HP) Voltage/Frequency As customer's requirement Overall height (Without stand) 1020mm 1020mm 1020mm Net weight 325kg 323kg 320kg Gross weight 375kg 373kg 370kg Packing size 880×770×1140mm 880×770×1140mm 880×770×1140mm Loading amount (Size of table) 1030×832×1140mm 1030×832×1140mm 1030×832×1140mm 800 × 240mm 28pcs/20' container 28pcs/20' container 28pcs/20' container 700 × 240mm 36pcs/20' container 36pcs/20' container 36pcs/20' container
