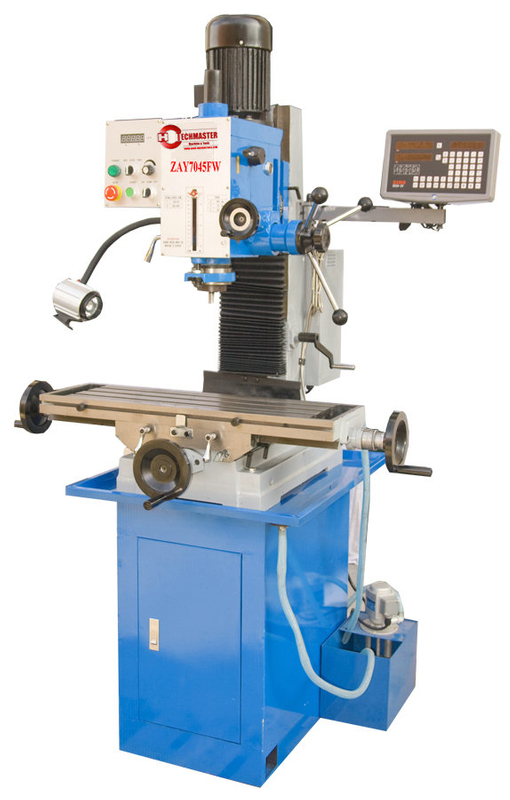

ZAY7045FW
Quantity: Specifications:
Drilling,- and milling machine with a 90° pivoting gear head for
the commercial demand. Incl. halogenlamp, digital display and coolant system
Without underframe
Technical data:
Spindlecone MT 4
Motor output power S1 1,1 kW, 400 V
Weight 325 kg
Table dimensions 800 x 240 mm
max. workpiece height 420 mm
Speeds 12, 80 till 2500 rpm
80/150/260/380/710/1250/
160/300/520/760/1420/2500 U/min
Max.drilling capacity in steel 45 mm
Worktable travel x=585mm, Y= 205 mm
Milling table tilt 38°Specifications:
Drilling,- and milling machine with a 90° pivoting gear head for
the commercial demand. Incl. halogenlamp, digital display and coolant system
Without underframe
Technical data:
Spindlecone MT 4
Motor output power S1 1,1 kW, 400 V
Weight 325 kg
Table dimensions 800 x 240 mm
max. workpiece height 420 mm
Speeds 12, 80 till 2500 rpm
80/150/260/380/710/1250/
160/300/520/760/1420/2500 U/min
Max.drilling capacity in steel 45 mm
Worktable travel x=585mm, Y= 205 mm
Milling table tilt 38°
