MAJOR SPECIFICATIONS

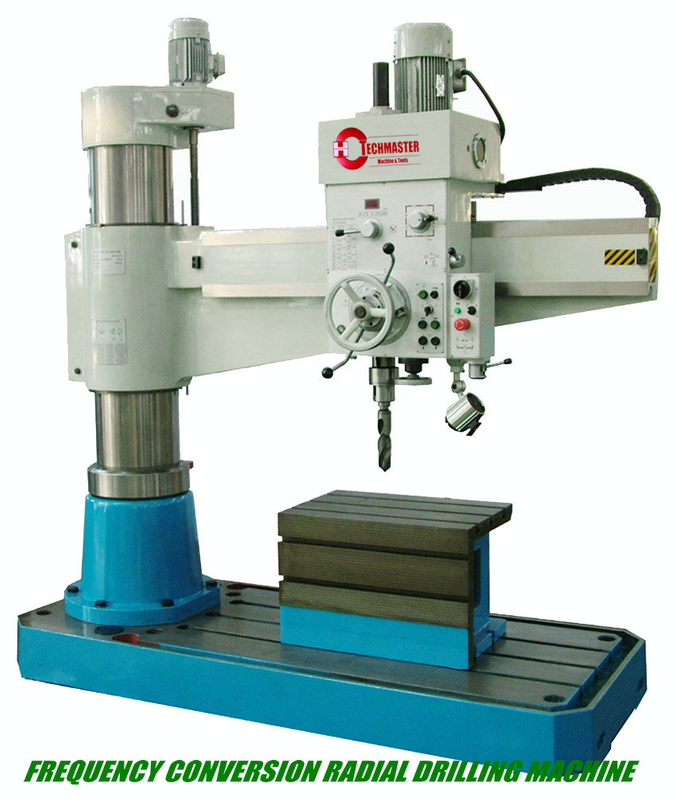

Model | ZB3060 x 16 |
Max. drilling diameter (on Medium-carbon steel) | 62mm |
Max. drilling diameter (on cast iron) | 72mm |
Max. tapping diameter (on Medium-carbon steel) | M46 |
Max. tapping diameter (on cast iron) | M52 |
Max. distance from spindle to generating line of column | 350-1600mm |
Distance of horizontal movement for spindle box (manual) | 1250mm |
Max. distance between spindle end to the worktable surface of the base | 350-1250mm |
Max. travel of the spindle | 315mm |
Spindle taper bore | MT.5 |
Spindle speed step | Stepless |
Spindle speed range | 38-275;275-2000 r/min |
Spindle feed steps | 8 |
Spindle feed range | 0.06-1.00mm/r |
Speed of rocker arm up and down movement | 1.2 m/min |
Rotation angle of rocker arm. | ± 180 |
Distance of spindle movement for calibrated dial each revolution | 122mm |
Power of main motor (tranducer motor) | 4KW |
Power of motor for rocker arm up and down movement | 1.5 KW |
Power of oil pump motor for spindle box, column and rocker arm clamping | 0.75 KW |
Machine dimension | 3800kg |
Weight of machine | 2490 x 1000 x 2598mm |
Feature
Special Accessories
Accessories included in the machine
