ZF60

Quantity:

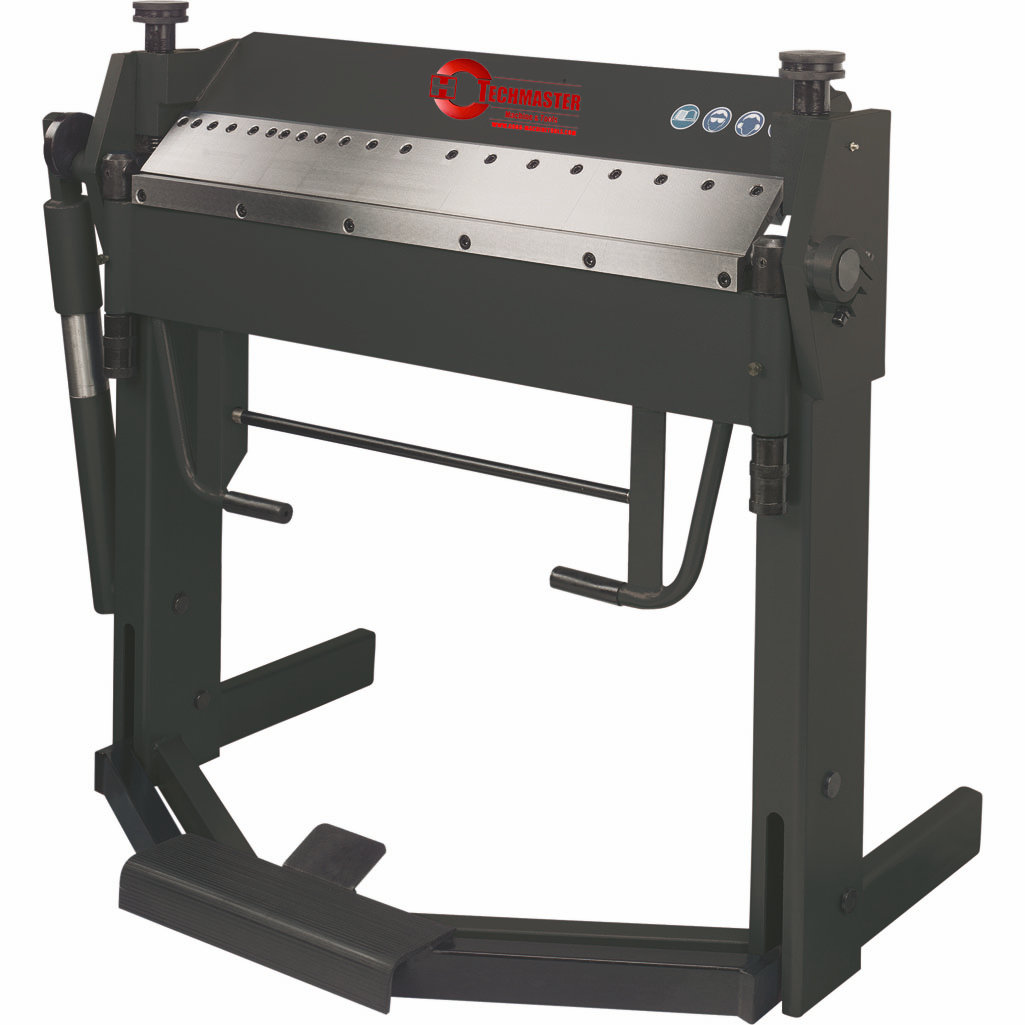

Heavy duty angle bending machine. The upper blade is segmented and the segments can be taken out. The work piece is clamp through foot control, which leaves both hands free. The machine is equipped with a cylinder and adjustable lower blade, which makes bending sheet metal very easy. European design.

Features

  • upper blade segmented
  • cylinders on both sides
  • foot pedal
  • height can be set very accurately
  • lower blade adjustable

Standard Equipment

-

Specification

Bending capacity: 1500 x 1.5 mm

Max. bending angle: 135 °

Dimensions: 1700 x 710 x 1270 mm

Weight: 360 kg
