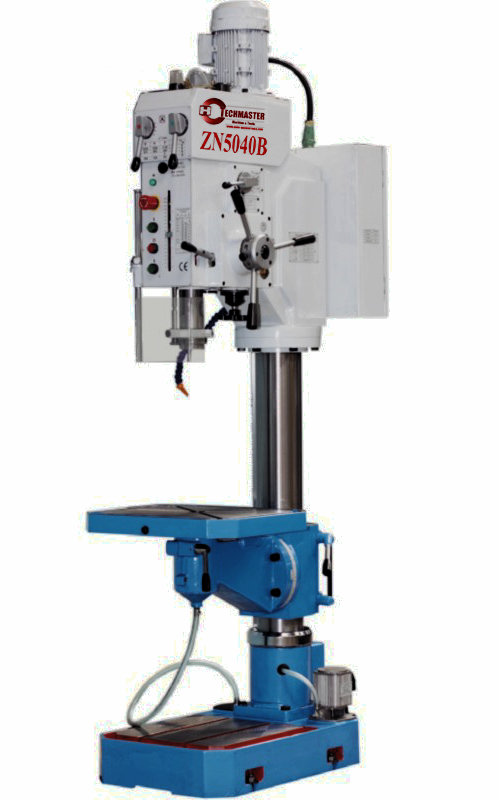

VERTICAL DRILLING MACHINE ZN5040B
1) 3 phase with two-voltage for 220v~575v collocation
2) all main parts are made with quality cast iron
3) gear shif
4) Thin oil lubrication is available for drilling diameter 40mm and 50mm, grease lubrication is available for others
5) superior quality of gears with hardened and lapped gears of surface
6) workable could be rotated and could be inclined ± 45 °
7) importable electrical components with CE,CSA and UL standard
8) the model of mchines with A is electromagnetism clutch transmission feed, with B is mechanical feed, without A and B is manual feed.
9) supply tachometer, depth gaue and elevating motor of ZN5040B,ZN5040A,ZN5050B,ZN5050A,it as special order
Specification | | Model |
ZN5040B | ||
max.drilling diameter.(steel) and tapping diameter | mm | Φ40/M24 |
max.travel of spindle | mm | 190 |
max.distance from spinlde to generating line of column | mm | 340 |
max.distance between spindle end to the worktable surface | mm | 665 |
max.distance from spindle end to the surface of base worktable | mm | 1195 |
max.travel of spindle box | mm | |
max.trvel of worktable and bracket/manual(mechanical) | mm | 570(450) |
swivel angle of worktable | | ±45° |
spindle taper bore | MT | 4 |
spindle speed steps | | 12 |
spindle speed range | r/min | 76-2065 |
spindle feed steps | | 3 |
spindle feed range | mm/r | 0.1~0.3 |
dimension of worktable | mm | 520x440 |
effective working area of worktable | mm | 405x395 |
