ZWB5050A TOP

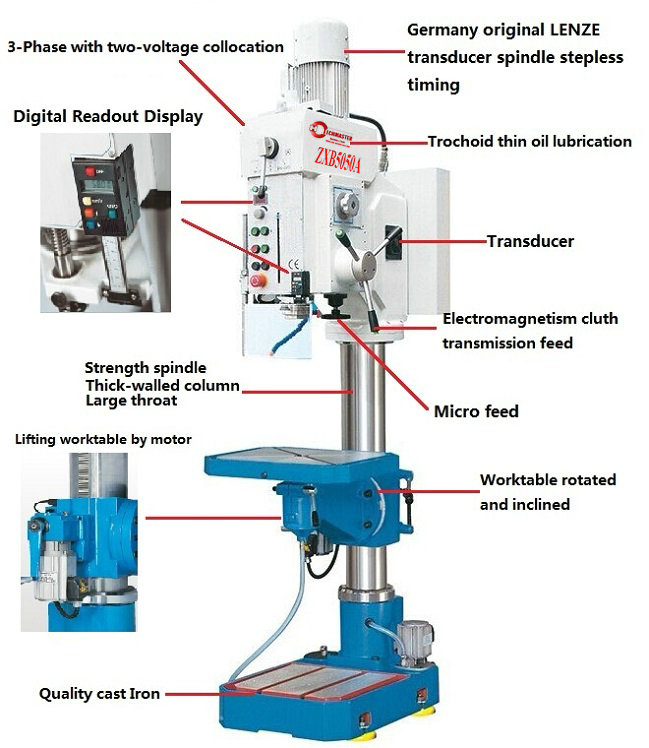

Feature:

1. Single-speed motor, Germany original Lenze transducer spindle stepless timing

2.Digital readout for the display of speed and cutting depth

3.Electromagnetism clutch transmission feed

4.Coolant system and spindle cover

5. Strength spindle,large diameter column

6.Motor driven or manual lifting of worktable

7.All main parts made with high quality cast iron

8.3PH with two voltage for 220V-575V collocation

9. Trochoid lubrication pump

10. Micro feed is available

11. Worktable could be rotated and could be inclined 45 degree to lest and right

12. Main electrical components with CE,CSA and UL standard



Specification:

Model	ZWB5050A
Max. drilling diameter (steel) and tapping diameter	50mm/M30mm
Max. milling cutter diameter	80mm
Max. Travel of spindle	200mm
Max. distance from spindle to generating line of column	360mm
Max. distance from spindle nose to the surface of worktable	590mm
Max. distance from spindle end to the surface of base worktable	1175mm
Max. travel of worktable and bracket/Manual (Mechanical)	530 (410)mm
Swivel angle of worktable	±45°
Spindle taper bore	MT4
Spindle speed steps	stepless
Spindle speed range	50-316,316-2200 r/min
Spindle feed steps	6
Spindle feed range	0.08,0.50
Dimension of worktable	580 x 460mm
Effective working area of worktable	445 x 435mm
Power of motor	3KW
Machine dimension	950 x 680 x 2405mm
Packing dimension	1150 x 680 x 2250mm
Weight	705kg
Sets/20’ container	16



Standard accessories:

-Key type drill chuck

-Connecting bar for drill chuck

-Shaft sleeve for taper shank tool

-Wedge for taper shank tool

-double open end spanner



Optional accessoreis:

-Cross worktable

-125mm precision vice

-Germany original Lenze transducer

-Collect and handle of milling cutter

-Rotation worktable
