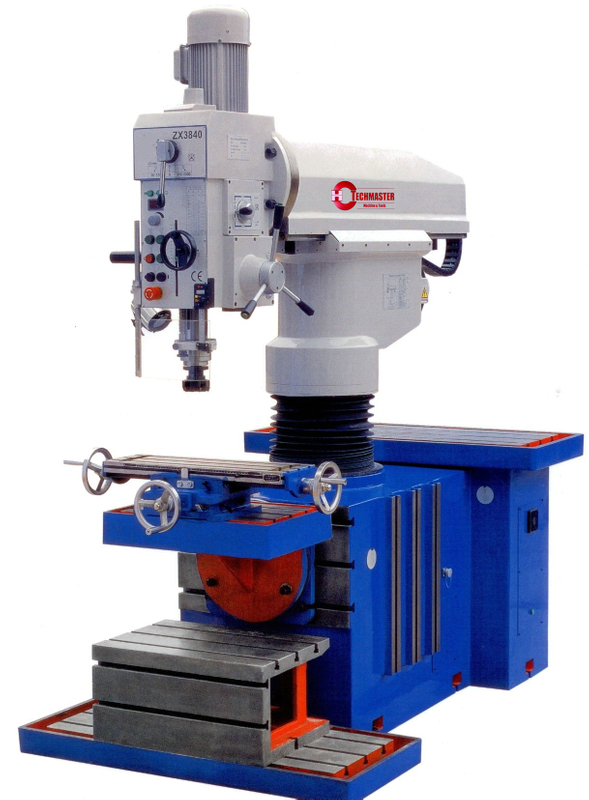

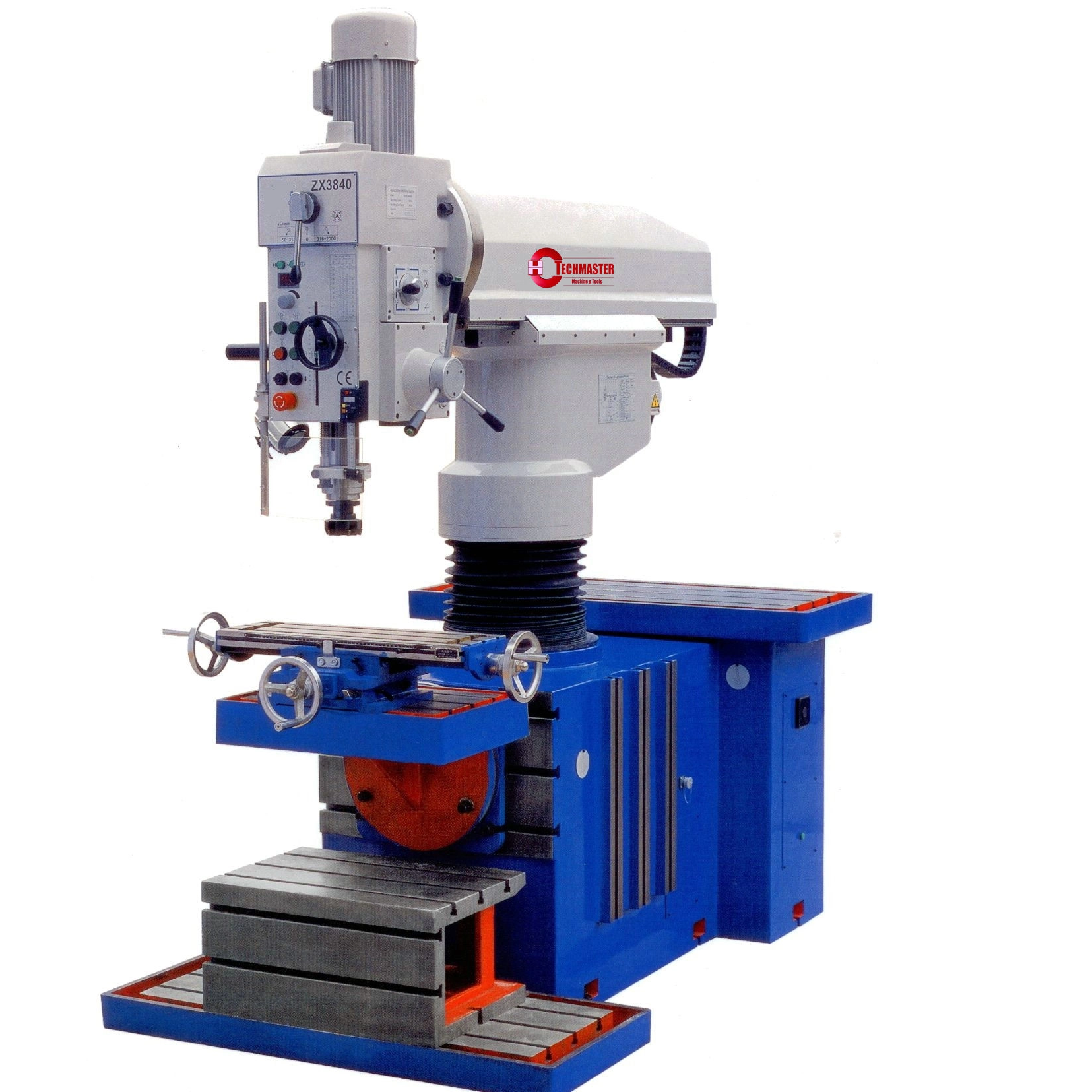

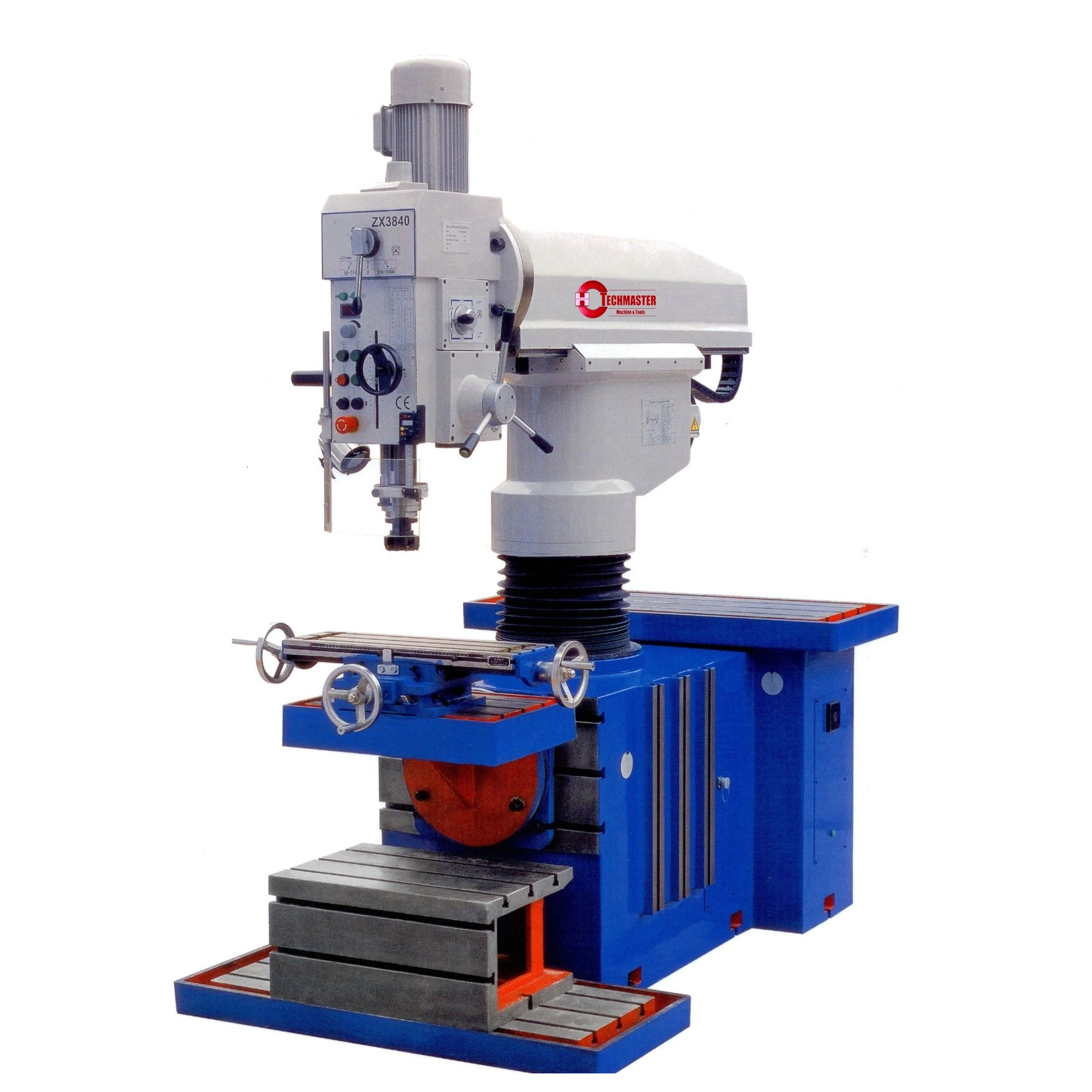

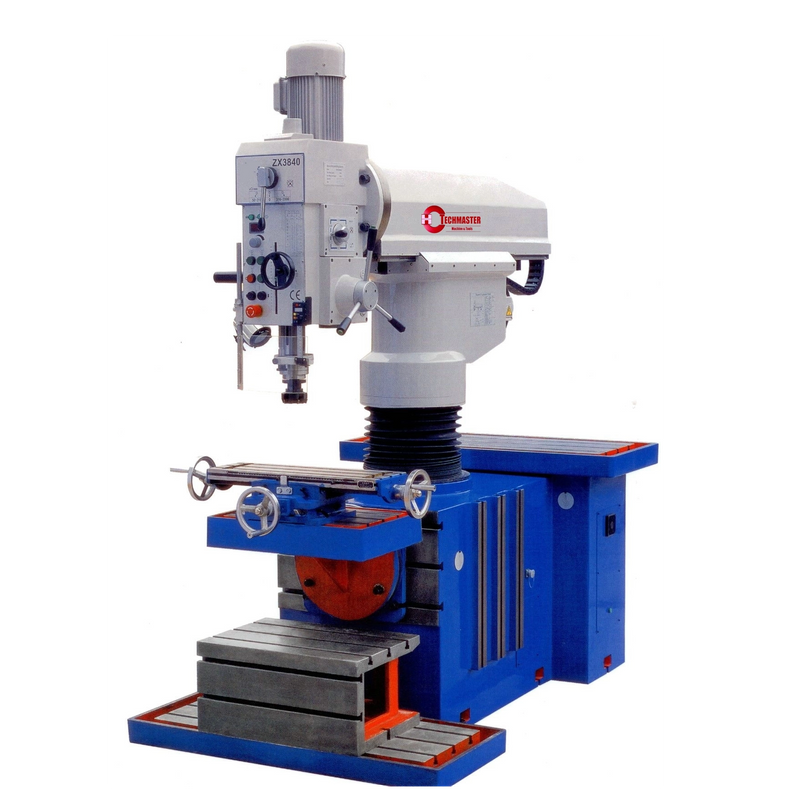

ZX3840

Quantity:
German brand frequency converted controlled variable spindle speed
Linear roller guide way for RAM
Hydraulic RAM and column quill clamping and releasing
Digital readout for speed and cut depth
Micro feed
Tapping with automatic rotation
Spindle feed by electro-magnetic clutch
Coolant and fender
Milling function available with optional milling accessories equipped
Model

D-ZX3850

  D-ZX3840
Max. drilling diameter (steel) and tapping diameter

50mm/M36

40mm /M30
Max. Facing Milling diameter

80mm

 80mm
Max. travel of spindle

240mm

 200mm
Distance between from column center line to the T solt in the middle of worktable

630mm

 640mm
Max. distance between spindle end to the worktable surface

800mm

 760mm
Max. travel of ram

665mm

 590mm
Max. travel for the spindle box in up and down position

400mm

 400mm
Column turning angle

300°

 90"
Spindle taper bore

BT40MT

MT4
Spindle speed range (step-less)

48-2000r/min

 50-2000r/min
Spindle feed steps

6

 6
Spindle feed range

0.08-0.50mm/r

 0.08-0.50mm/r
Dimension of worktable

240mm

 220mm
Dimension of column

3.7KW

 2.2kw
Machine dimension

2545 x 1350 x 2850mm

 1910x1200x2400mm
Weight

3100kg

 2800kg
