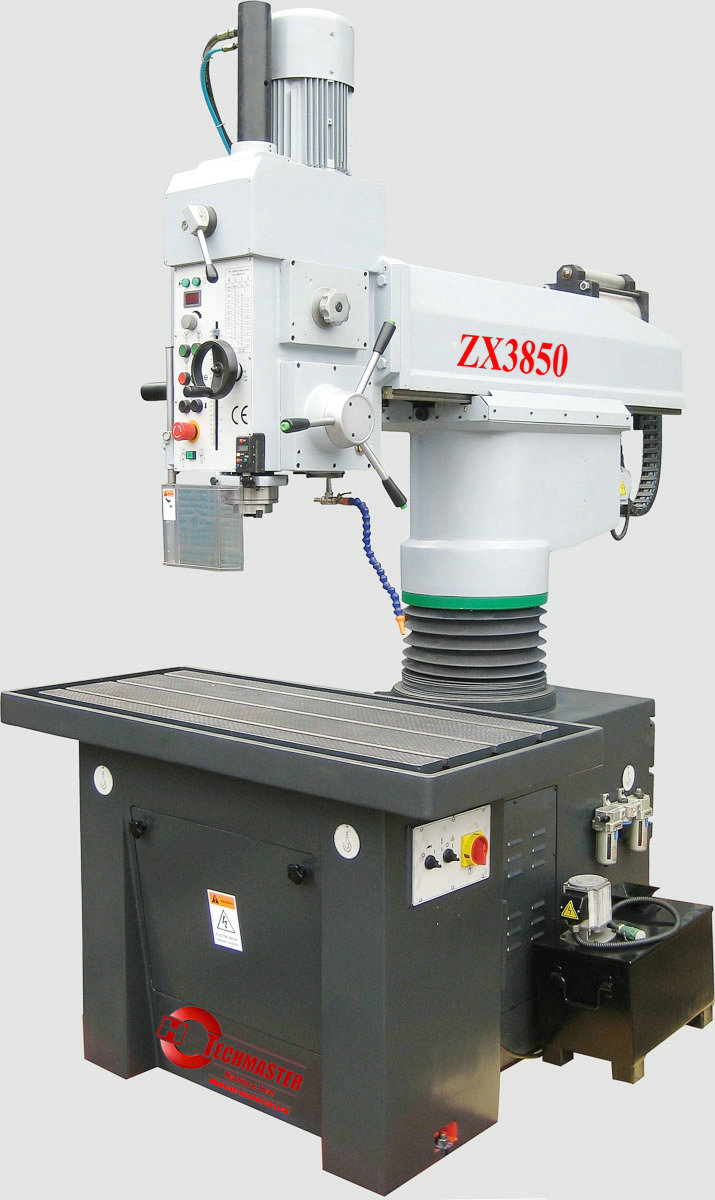

ZX3850

Quantity:
Industrial quick radial drilling machine with hydraulic clamping ensures that the head can be positioned easily. The machine is equipped with digital speed and drilling depth readout and automatic feed. The head can be tilted 45° and it rotates over an axis which makes it possible to perform nearly all drilling activities with this machine.

  • variable speed adjustment with Lenze frequency regulator
  • stable construction for high accuracy
  • quick positioning
  • hydraulic clamp of the upper arm adjustable
  • drilling head tiltable ca.45 degrees L/R and rotating over axis
  • halogen machine light
  • integrated cooling system
  • fixture on both the rear and the sides
  • Motor power 3,7 kW
    Spindle taper BT40
    Spindle speed range 48-2000 (variabel) rpm
    Drilling capacity 50 mm
    Tapping capacity M36
    Distance spindle-column 800 mm
    Drilling depth 240 mm
    Column diameter 240 mm
    Coolant pump 0,37 kW
    Head moveable 90 °
    Head movement 400 mm
    Max. distance spindle table 800 mm
    Upper arm travel 665 mm
    Table size 1350 x 600 lxw
    T-slots 3 / 18
    Number of feeds 6
    Feed range 0,08-0,50 mm/r
    Net weight 3100 kg
    Voltage 400 V
