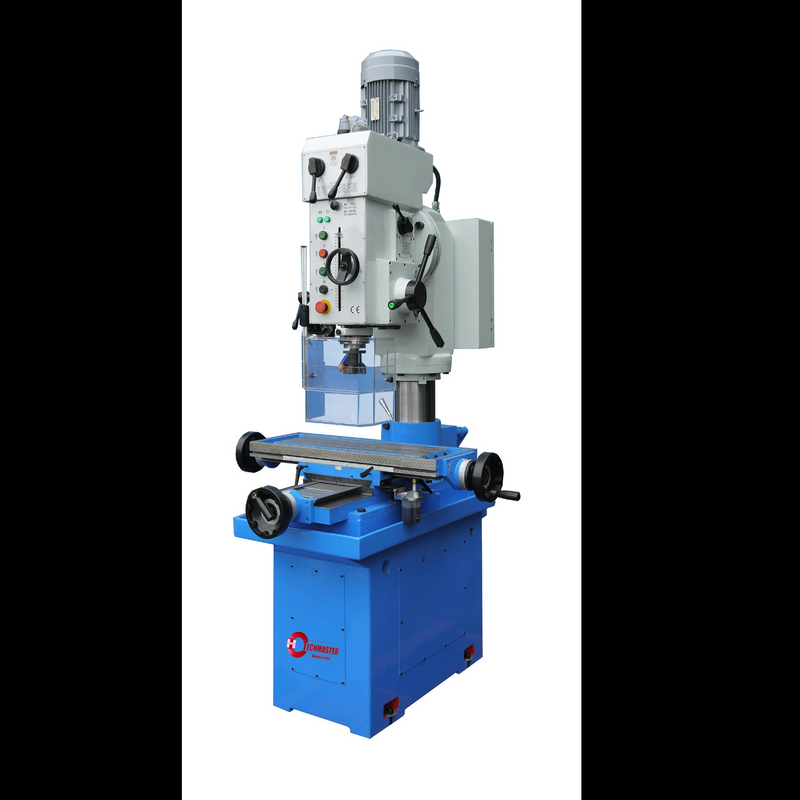

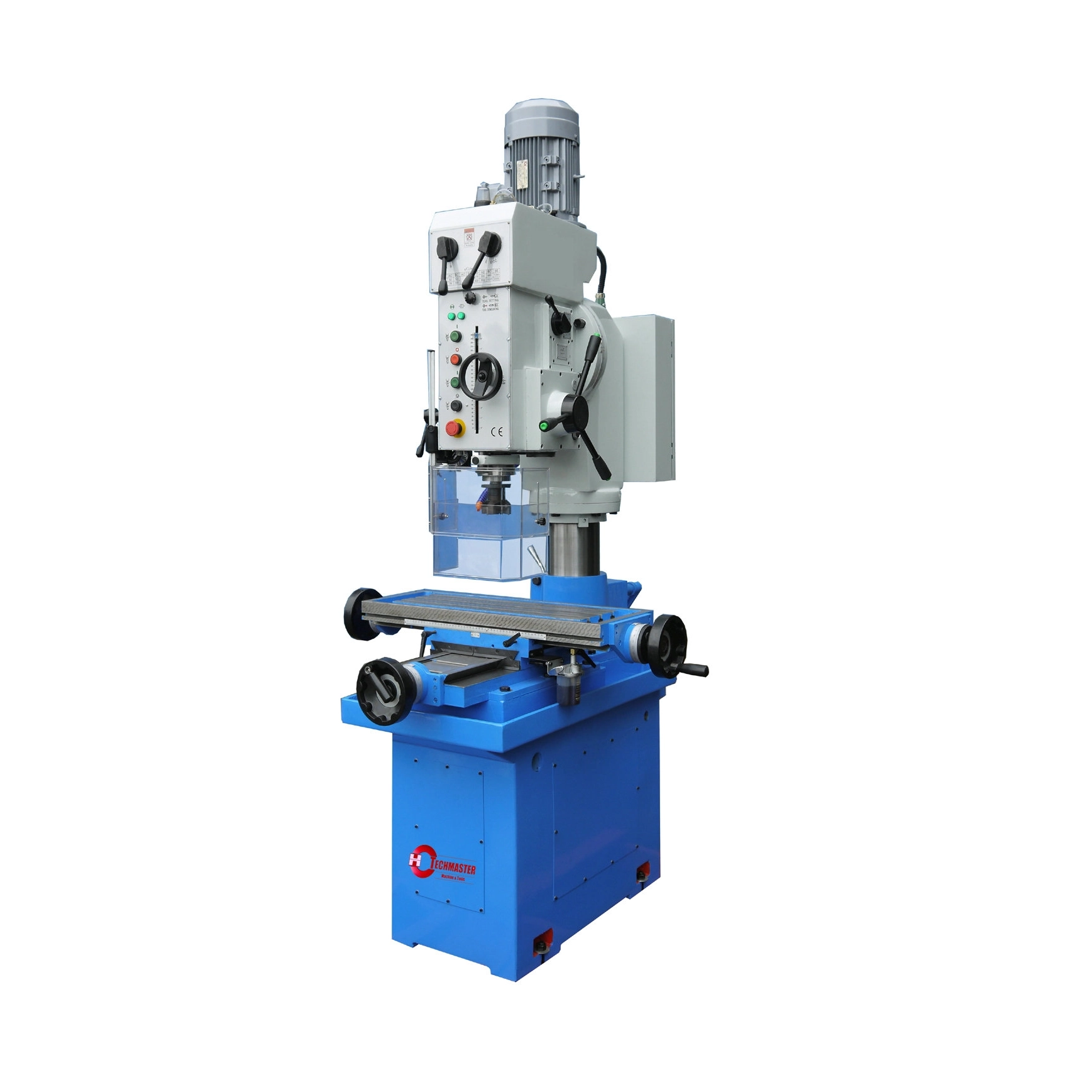

| MODEL | Unit | ZX4050 |
| Max. drilling diameter (steel) | mm | 50 |
| Max. tapping diameter (steel) | mm | M27 |
| Max. vertical milling diameter | mm | 25 |
| Max. end milling diameter | mm | 80 |
| Distance between spindle center line to the center line of column | mm | 360 |
| Max. distance between spindle end to the surface of the worktable | mm | 700 |
| The distance of spindle box movement in vertical direction | mm | 500 |
| Max. stroke of the spindle | mm | 240 |
| Spindle taper | Morse | MT4 |
| Number of speed steps of the spindle | Step | 12 |
| Spindle speed range | r/min | 52~2050 |
| Feed steps of the spindle | Step | 4 |
| Feed range of the spindle | mm/r | 0.1-0.4 |
| Rotation degree of spindle box | degree | ±45° |
| Working area of the worktable (L x W) | mm | 800×280 |
| The travel on X,Y direction of worktable | mm | 450/280 |
| Working area of the worktable of the base (L x W) | mm | 445×435 |
| Diameter of column | mm | φ160 |
| Power and speed of the main motor | kW, rpm | 2.2/2.8, 1440/940 |
| Power and speed of the worktable up and down motor. | kW, rpm | 0.25/1440 |
| Power and flow rate of the coolant pump motor | kW, L/min | 0.18/6 |
| Machine dimension (L x W x H) | mm | 1380×1230×2700 |
| Weight of the machine (Net weight/Gross weight) | Kg | 950/1020 |
