FEATURES:
Gear drivern drilling&machine
Auto feeding on the spindle
Exceptionally quite gearbox
Equipped with superhigh column, Wide and big table
Zero voltage safeguard.
Drilling and milling machine main function:
Milling drilling, tapping, boring, reaming
Head swivels 360°
Worktable up & down perpendicularly, Micro feed precision
Heavy-duty tapered roller bearing spindle, Positive spindle lock, Adjustable gibs on table
Equiptped with tapping system, double speed motor.
Equipped with coolant, spindle power feed system.
Three steps of spindle power feed.
Feeding depth position stop device.
High precision ground spindle and larger quill.

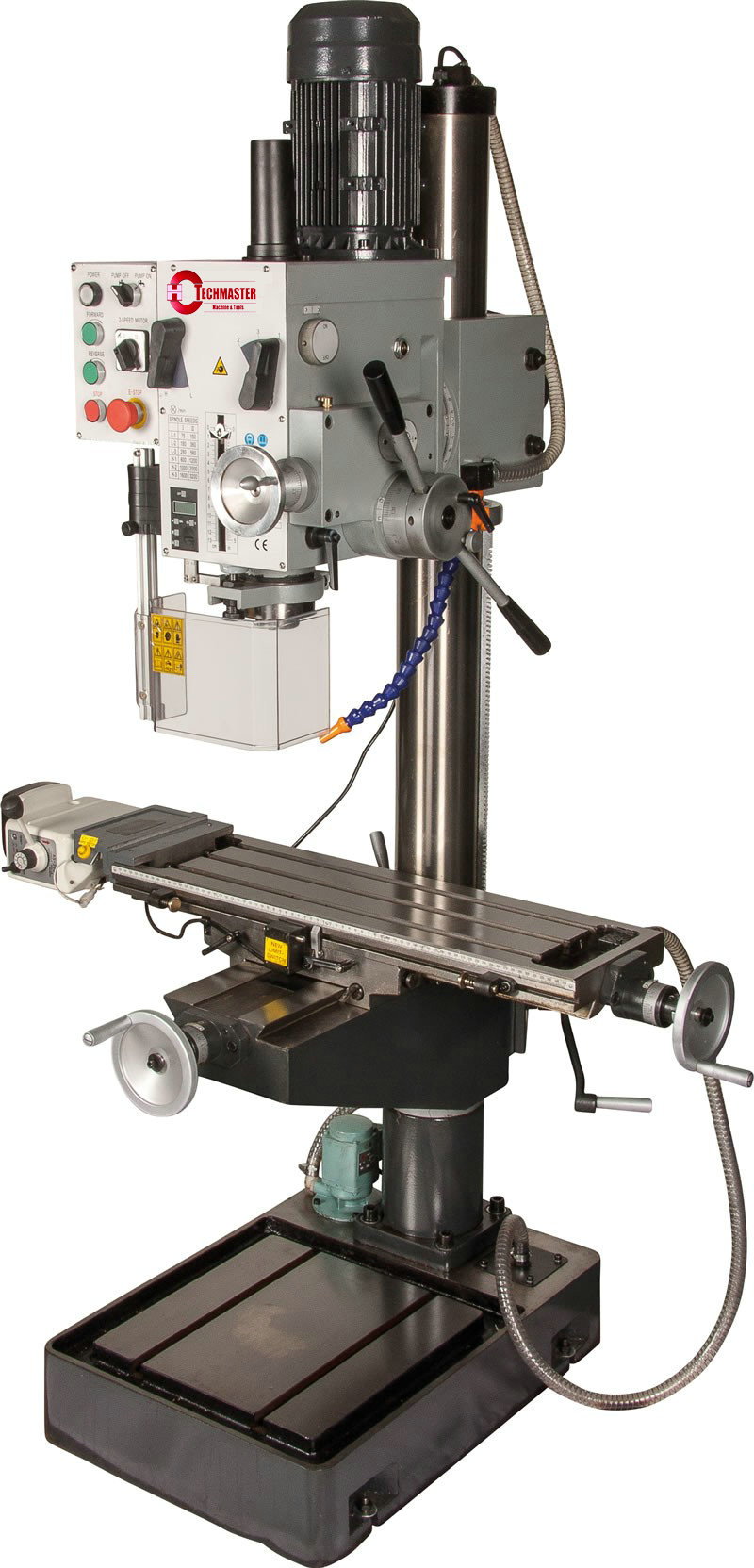

| Item | GEARED DRILLING AND MILLING ZX40H |
| Max. Drilling dia (Steel/Iron) | 31.5/40mm |
| Max milling capacity(Face/End) | 80/32mm |
| Spindle taper | MT3/MT4/R8/ISO30 |
| Worktable Size | 600× 190mm |
| Worktable travelX/Y | 370/190mm |
| Dimensions of base | 650× 450mm |
| Spindle travel | 130mm |
| Spindle center to column surface | 275mm |
| Spindle nose to worktable | 610mm |
| Spindle nose to base | 1180mm |
| Diameter of column | 115mm |
| Spindle speed(option ) | 6steps: 60Hz 90~1970rmp 50Hz 75~1600rmp |
| Motor | 1.1kw |
| N. W/G. W | 350/400KG |
| Packing size(L× W× H)mm | 820× 720× 1830mm |
| Sdts/20′ Container | 21sets |
