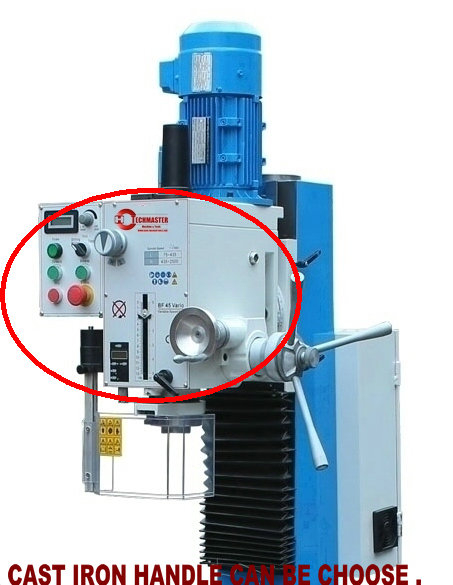

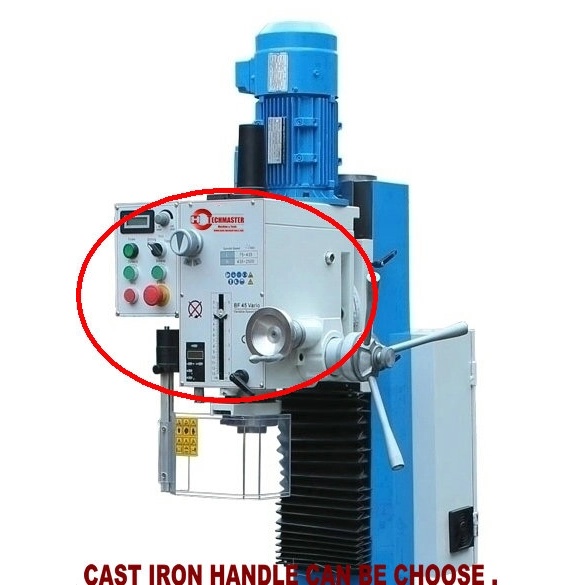

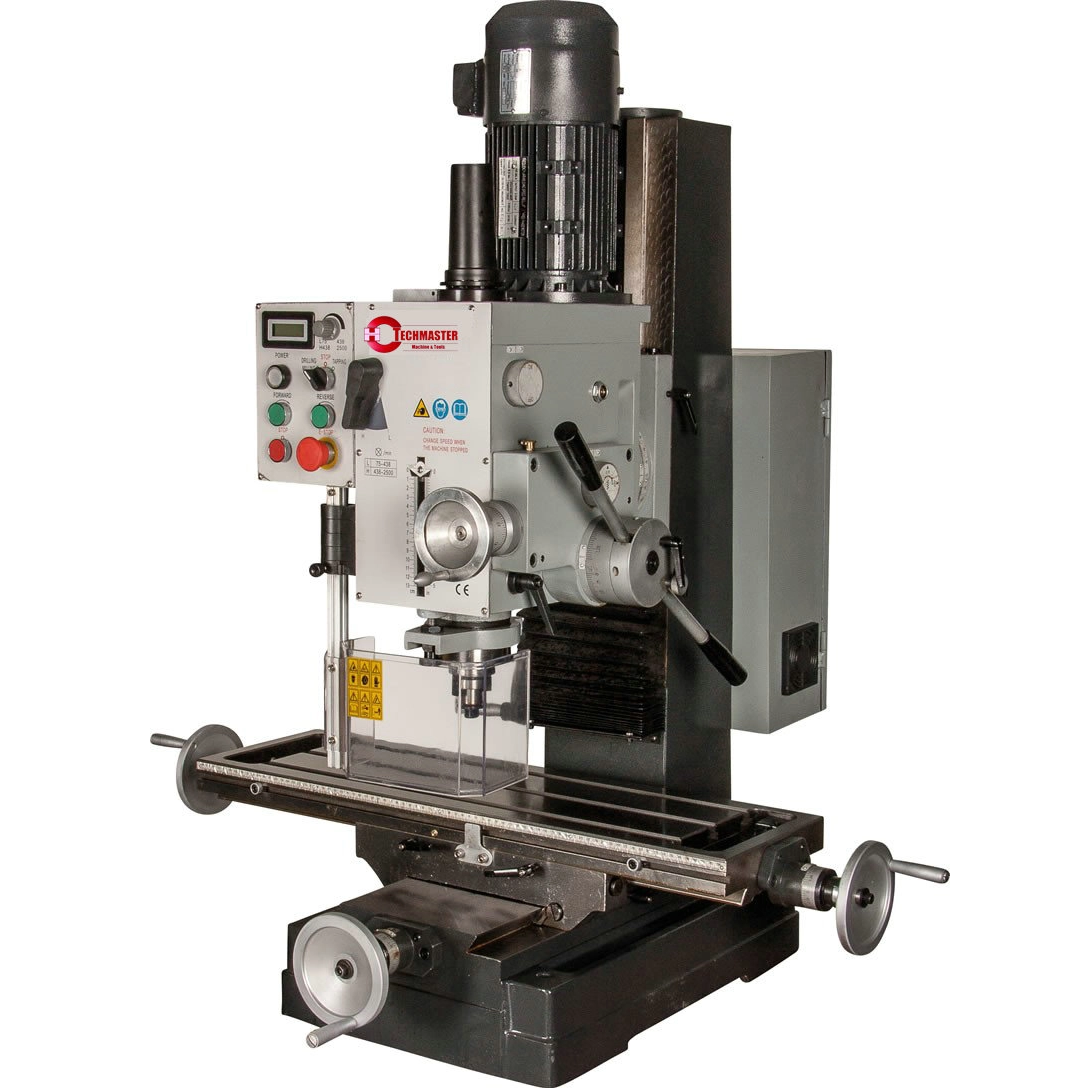

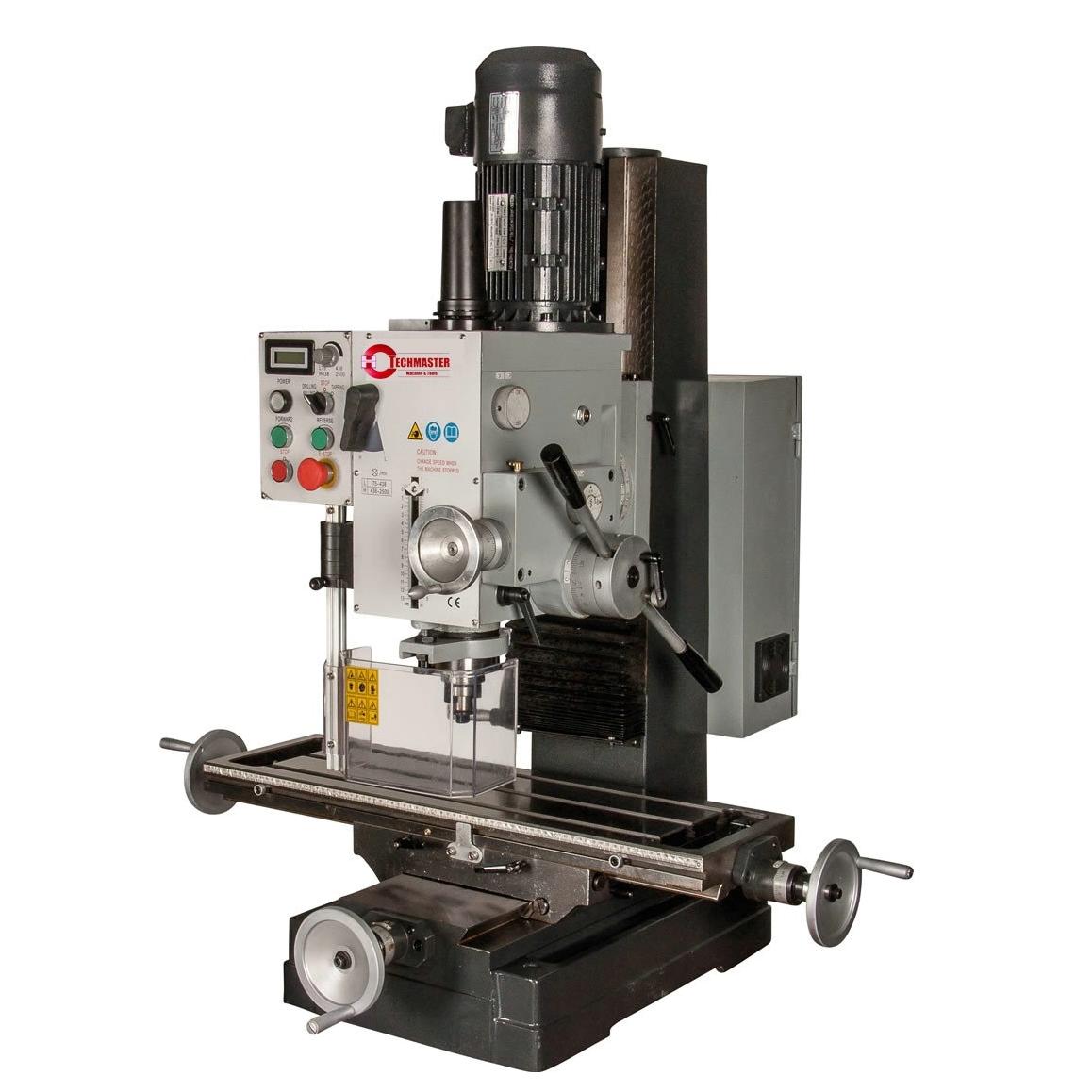

ZX45VF
Quantity: Feature:• Precision variable speed drilling&milling machine by inverter• Two gear steps ensure high torque at low speeds• The spindle speed is displayed directly on the control panel• Large square column casting ensures maximum rigidity• Handwheel for quill micro down feed• Depth ruler easy to read for quill travel at front panel• Tapping device with adjustable rotation reversal for thread cutting• Accurate hardened gears and shafts for quiet operation and long life• Low voltage controlling and safety chuck guard as standard
Standard accessories:• Tapping device• Key drill chuck• Tools & toolbox• Depth ruler• Safety chuck guard• Speed display
Optional accessories:• Normal or deluxe stand• QG-4” machine vice•Digital readout•Power feed for X-axis•Work lamp•58pcs clamping kits/M14•Rotary table/HV-6”•ER mill chuck set
Model No. ZX45VF ZX45VF-P(SPINDEL AUTO FEEDING) Drilling capacity 40mm 40mm Thread cutting max. M20 M20 Table size/T-slot size 800×240mm/14mm 800×240mm/14mm Spindle taper MT4 MT4 Spindle speeds 75-2500rpm(stepless) 75-2500rpm(stepless) Spindle feed -------- 0.10/0.18/0.26mm/r Distance spindle to column 258mm 258mm Distance spindle to table 450mm 450mm Spindle stroke 130mm 120mm Quill diameter 75mm 75mm Head tiltable ± 90° ± 90° Cross travel 220mm 220mm Longitudinal travel 580mm 580mm Vertical travel 300mm 300mm Motor power 1.5kw 1.5kw Net weight 340kg 360kg Packing size 870x760x1150mm 870x760x1150mm
Feature:• Precision variable speed drilling&milling machine by inverter• Two gear steps ensure high torque at low speeds• The spindle speed is displayed directly on the control panel• Large square column casting ensures maximum rigidity• Handwheel for quill micro down feed• Depth ruler easy to read for quill travel at front panel• Tapping device with adjustable rotation reversal for thread cutting• Accurate hardened gears and shafts for quiet operation and long life• Low voltage controlling and safety chuck guard as standard
Standard accessories:• Tapping device• Key drill chuck• Tools & toolbox• Depth ruler• Safety chuck guard• Speed display
Optional accessories:• Normal or deluxe stand• QG-4” machine vice•Digital readout•Power feed for X-axis•Work lamp•58pcs clamping kits/M14•Rotary table/HV-6”•ER mill chuck set
Model No. ZX45VF ZX45VF-P(SPINDEL AUTO FEEDING) Drilling capacity 40mm 40mm Thread cutting max. M20 M20 Table size/T-slot size 800×240mm/14mm 800×240mm/14mm Spindle taper MT4 MT4 Spindle speeds 75-2500rpm(stepless) 75-2500rpm(stepless) Spindle feed -------- 0.10/0.18/0.26mm/r Distance spindle to column 258mm 258mm Distance spindle to table 450mm 450mm Spindle stroke 130mm 120mm Quill diameter 75mm 75mm Head tiltable ± 90° ± 90° Cross travel 220mm 220mm Longitudinal travel 580mm 580mm Vertical travel 300mm 300mm Motor power 1.5kw 1.5kw Net weight 340kg 360kg Packing size 870x760x1150mm 870x760x1150mm
