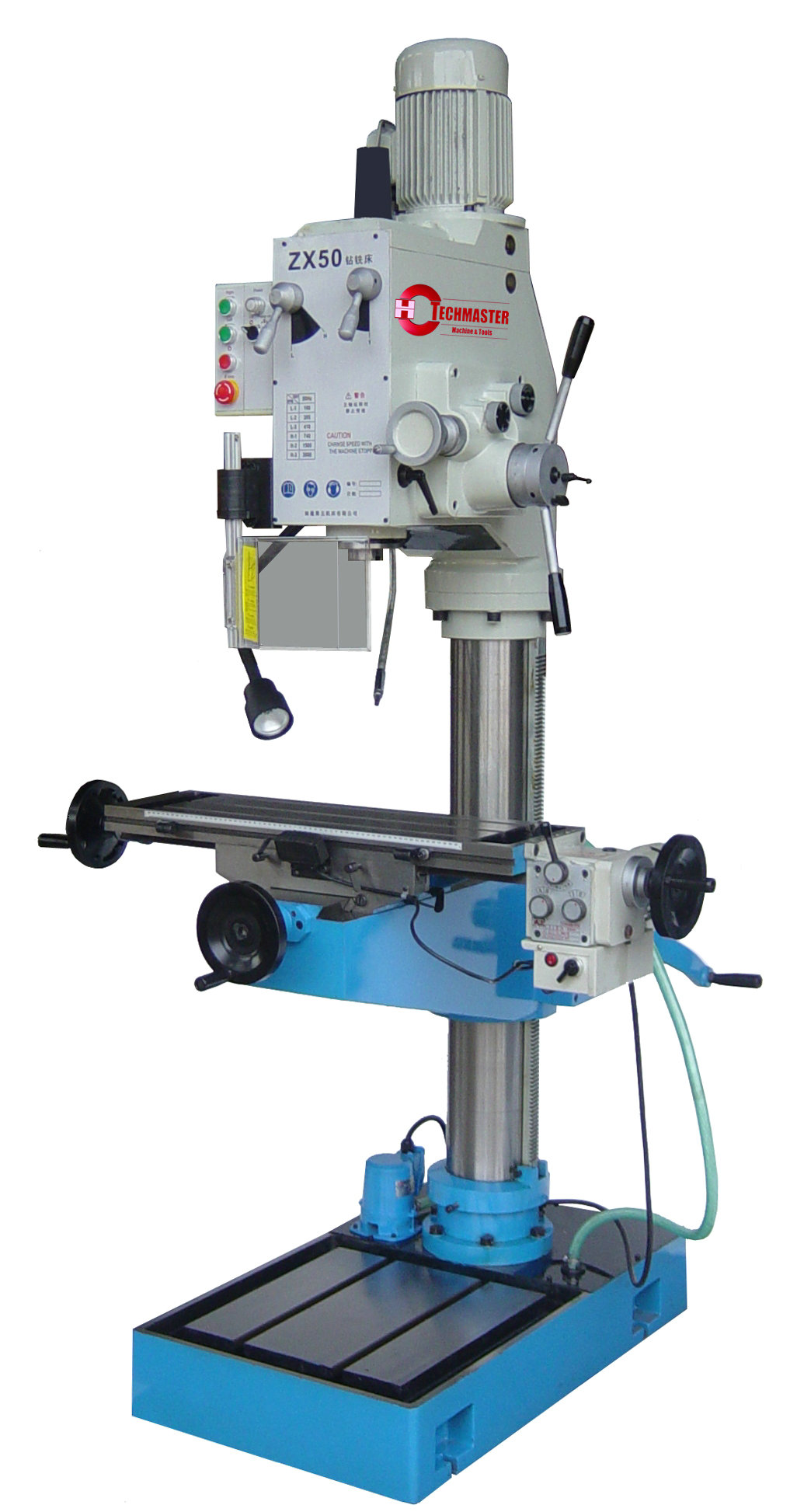

ZX50
Quantity: *This ZX50
is a heavy duty geared head Mill/Drilling amd straight drilling machine
* Fitted with large compound table with londitudinal power feed
* Spindle has 4 step power down feed with spindle stop device *
Parameters of Category: Milling Machines
Model ZX50 Max. drilling capacity(iron/steel) 60/50mm Max. mill capacity(face/end) 100/32mm Max. tapping capacity 33mm Spindle taper MT4 Worktable size 800× 240mm Worktable travelX/Y 500/280mm Dimensions of base 940× 580mm Column diameter 160mm Quill diameter 100mm Spindle travel 210mm Spindle center to column surface 350mm Spindle nose to worktable 700mm Spindle nose to base 1290mm Spindle Speed (R. P. M. ) 60Hz 60~1810 50Hz 50~1510 Spindle power feed 0.1-0.2-0.3-0.4mm (per/rev) Cooling motor 60W Motor 3kw N. W/G. W 830/880KG Packing size(motor is dismantled) 1010× 1200× 2134 mm 20' Container Q' ty 15 sets
*This ZX50
is a heavy duty geared head Mill/Drilling amd straight drilling machine
* Fitted with large compound table with londitudinal power feed
* Spindle has 4 step power down feed with spindle stop device *
Parameters of Category: Milling Machines
Model ZX50 Max. drilling capacity(iron/steel) 60/50mm Max. mill capacity(face/end) 100/32mm Max. tapping capacity 33mm Spindle taper MT4 Worktable size 800× 240mm Worktable travelX/Y 500/280mm Dimensions of base 940× 580mm Column diameter 160mm Quill diameter 100mm Spindle travel 210mm Spindle center to column surface 350mm Spindle nose to worktable 700mm Spindle nose to base 1290mm Spindle Speed (R. P. M. ) 60Hz 60~1810 50Hz 50~1510 Spindle power feed 0.1-0.2-0.3-0.4mm (per/rev) Cooling motor 60W Motor 3kw N. W/G. W 830/880KG Packing size(motor is dismantled) 1010× 1200× 2134 mm 20' Container Q' ty 15 sets
