ZX5015
Quantity: -

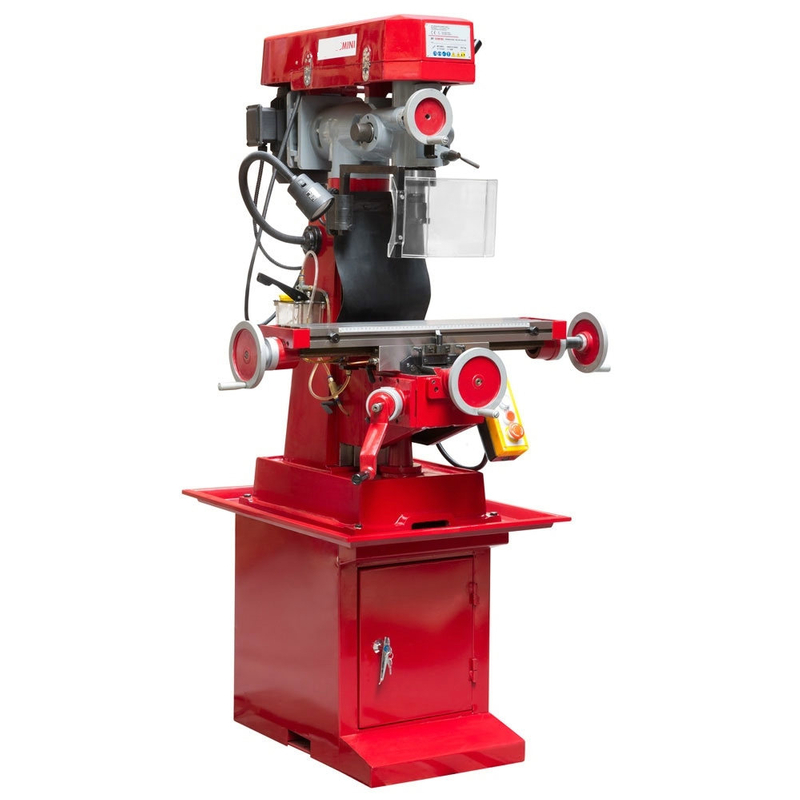

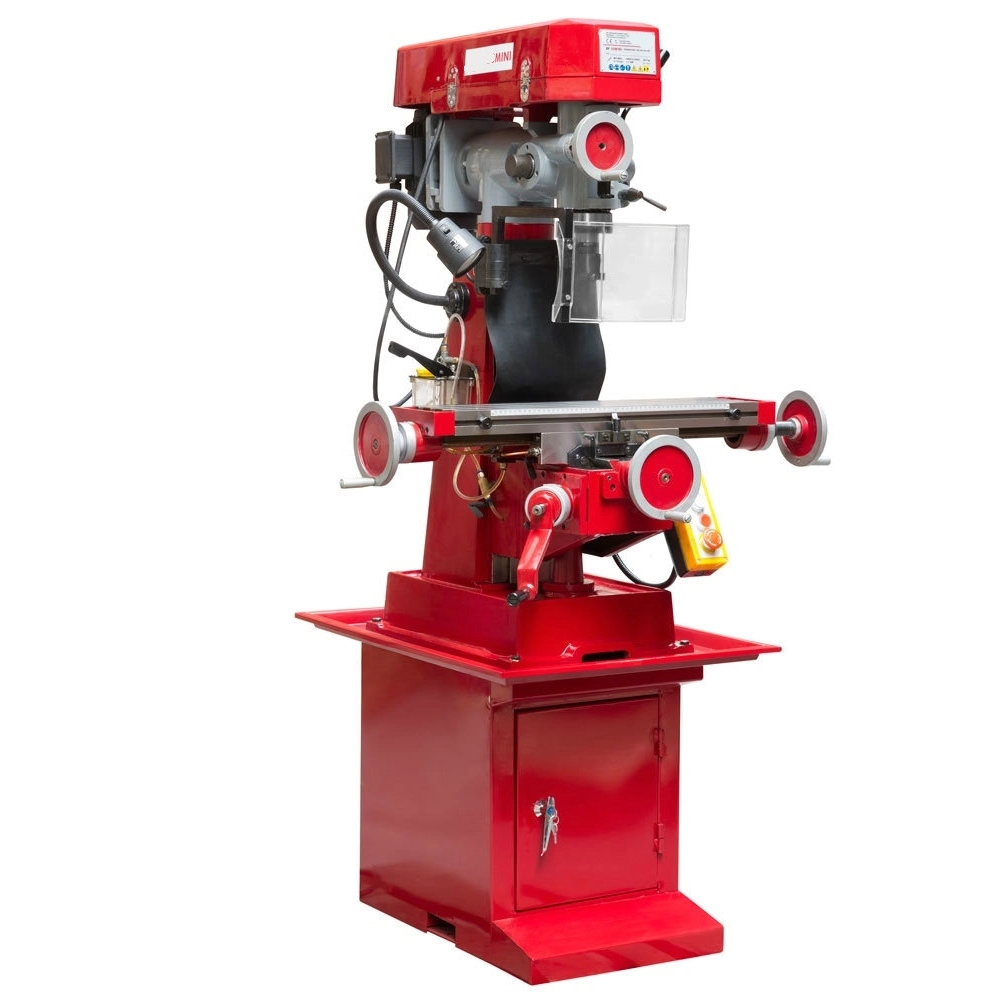

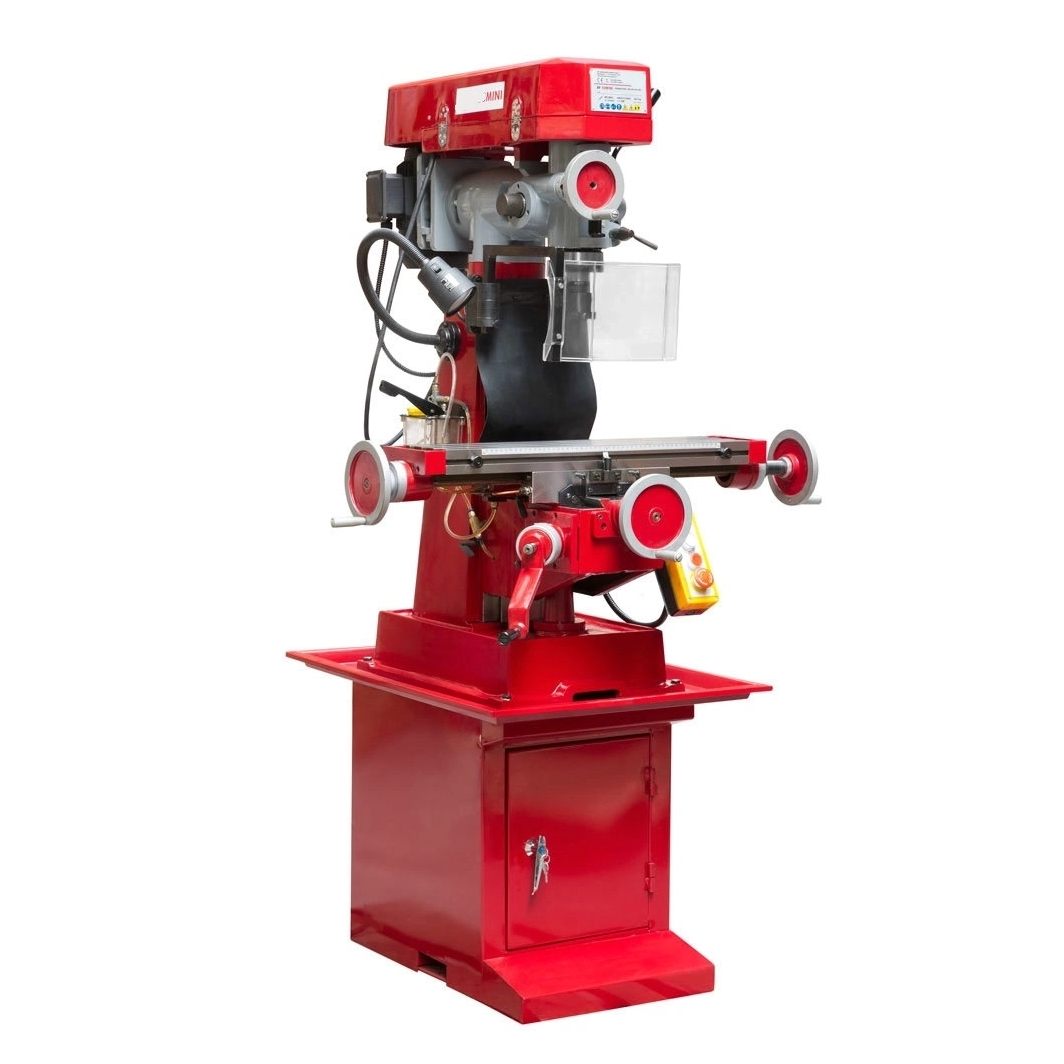

ZX5015
Machine features:
1. Wide and big table
2. Spndle microfeed
3. Accurate positioningandstrong, rigid, cutting power
Standard fitting:
1. Straining beam
2. Reduction Sleeve
3. Drill chuck
4. Morse taper
5. T- slot bolt
6. Tilted wedge
7. Oil gun
8. Double(-ended) wrench
9. Dabber
Special accessories:
1. Table power feed
2. Digital display device
3. Bed cupboard + Chip tray
4. Collet chuck
5. Vice
6. Milling chuck
7. Milling fixture
8. Coolant equipment
9. Headlamp
10. End milling cutter (tungsten carbide)
11. End milling cutter (steel)
Model no.
ZX5015
Vertical spindle nose taper
Mt3 or r8
Vertical spindle travel
2-3/4(70mm)
Verticalspindle speed(9speeds)
50hz:190-2100
Vertical spindle to table surface
0-12-3/5(0-320mm)
Working table surface
6 '' (152mm)×26 '' (660)
T-slots size(Number)
1/2 '' (3)(12.7mm)
Maximum longitudinal travel
14-1/2 '' (360mm)
Maximum cross travel
6 '' (150mm)
Vertical travel
7-3/4 '' (195mm)
Vertical head tilting angle(R & L)
90 º
Ram swiveling angle
360 º
Net weight/ship weight(approx)
262/354kg
Package size
940×760×1260mm
