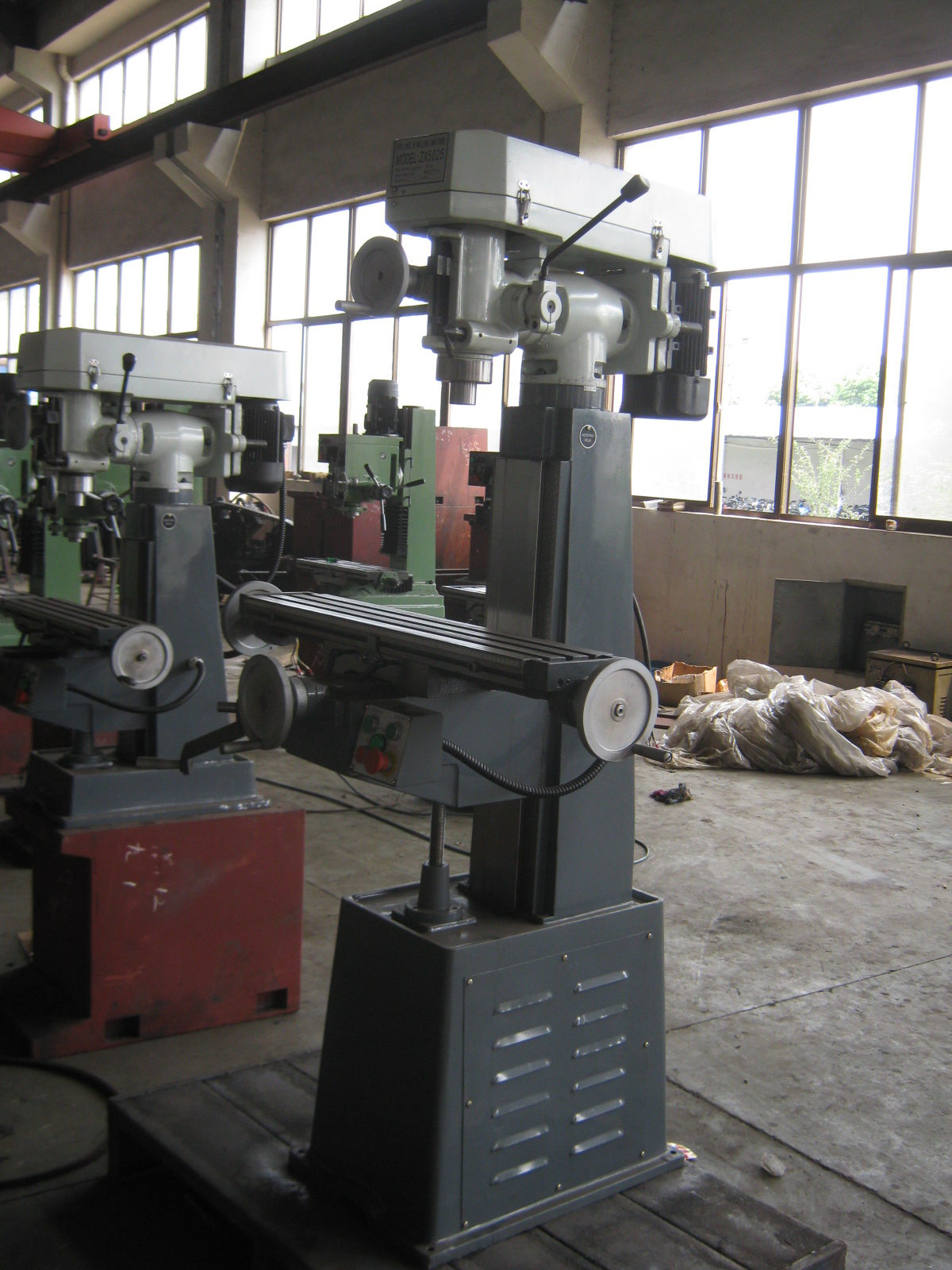

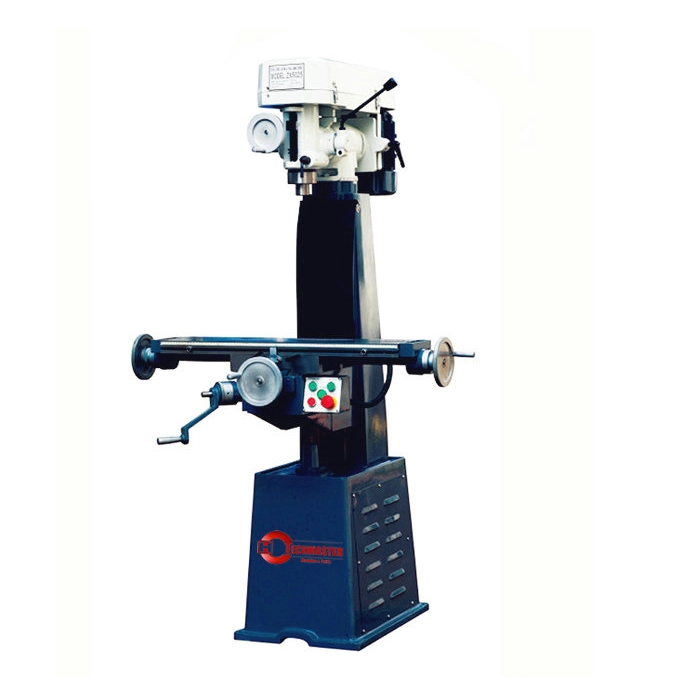

ZX5025

Quantity:
  • ZX5025
型号 Model ZX5025
最大钻孔直径(钢`铁)  Max.drilling capacity(lron/steel) 30mm/ 25mm
最大铣削能力    Max.drilling capacity(Face milling/End milling) 76mm(平铣)20mm(立铣)
工作台尺寸  (Working table size) 800×178mm
工作台纵向行程  ( Working table longitudinal travel) 440mm
工作台横向行程  ( Working table cross travel) 200mm
主轴锥度  (Spingle taper) MT3  /   R8
主轴行程  ( pindle travel) 80mm
主轴转速(/)  Spindle speed(RPM) 50HZ:190~2100rpm   60HZ:230~2520rpm
主轴至工作台面的最大距离  (Max.distance spindle to table) 545mm
主轴箱回转角度  (Spindle box swivel degree) 360°
主轴箱左右旋转角度 (Hand tilt left/right) 45°
电机功率  (Power of motor) 1.1KW
机床重量(净重、毛重)  NW  /  GW 480/550kg
包装箱尺寸  (Packing size) 1060×860×1930mm
