ZX5045C
Quantity: Specifications:

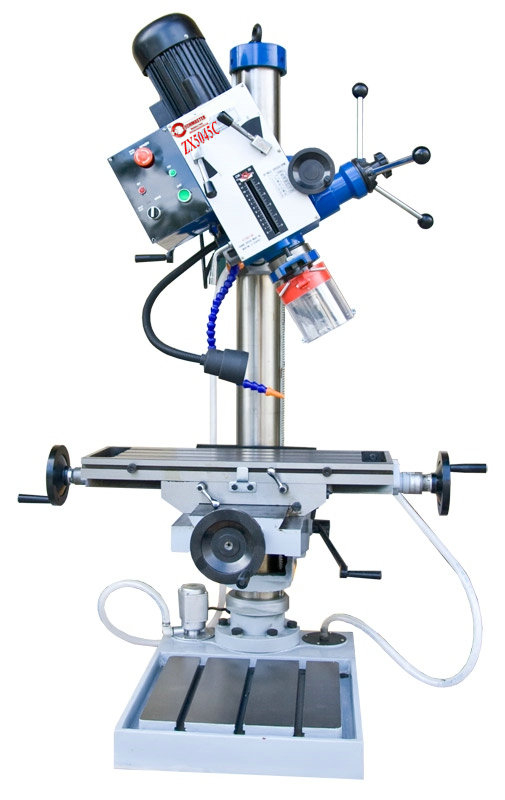

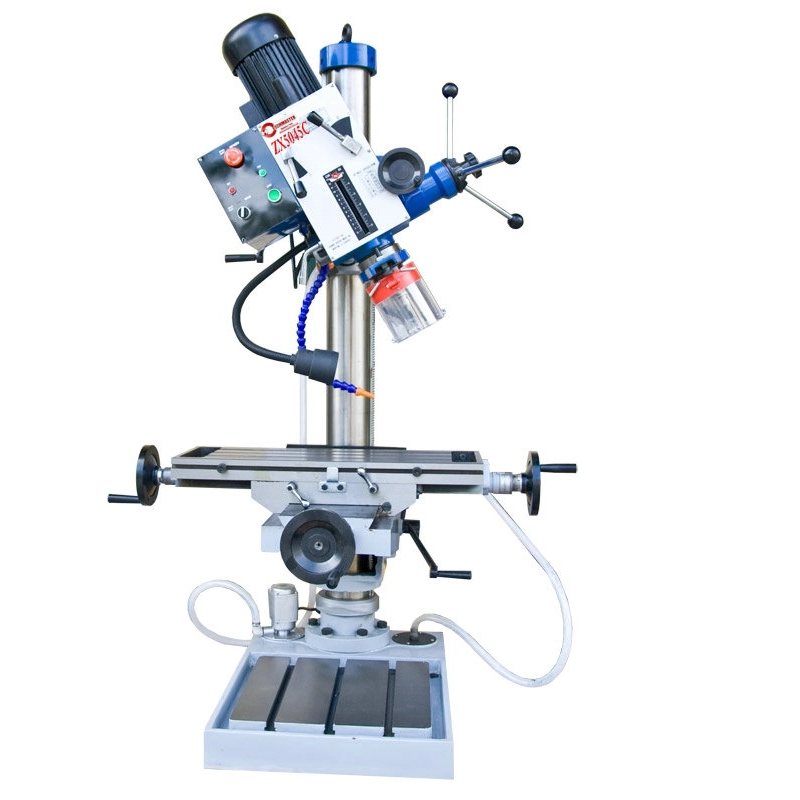

drilling machine ZX5045C with 90 ° pivoting drive head for the commercial demand. With halogenlamp, coolant tank and drill chuck
Technical data:
Spindle cone MT 4
Motor output power S1 1,5 kW, 400 V
Weight 460 kg
Table dimensions 730 x 210 mm
max. workpiece height 700 mm
Speeds 6 80 till 1250 rpm
Worktable travel 500 x 205 mm
Optional equipment:
2 speed motorSpecifications:
drilling machine ZX5045C with 90 ° pivoting drive head for the commercial demand. With halogenlamp, coolant tank and drill chuck
Technical data:
Spindle cone MT 4
Motor output power S1 1,5 kW, 400 V
Weight 460 kg
Table dimensions 730 x 210 mm
max. workpiece height 700 mm
Speeds 6 80 till 1250 rpm
Worktable travel 500 x 205 mm
Optional equipment:
2 speed motor
