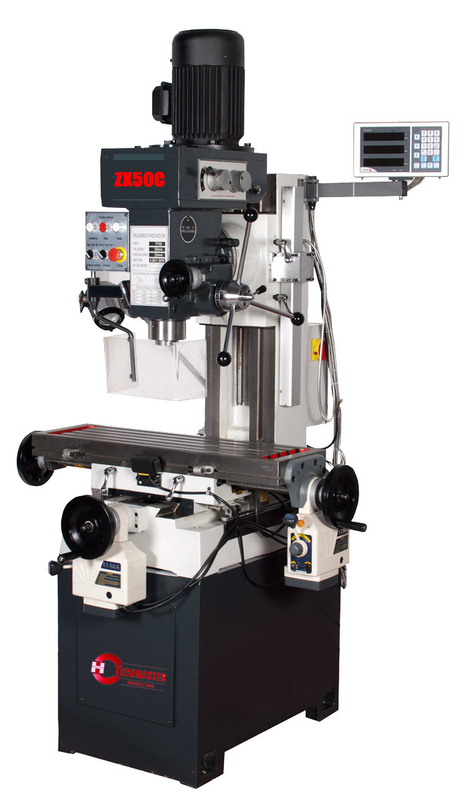

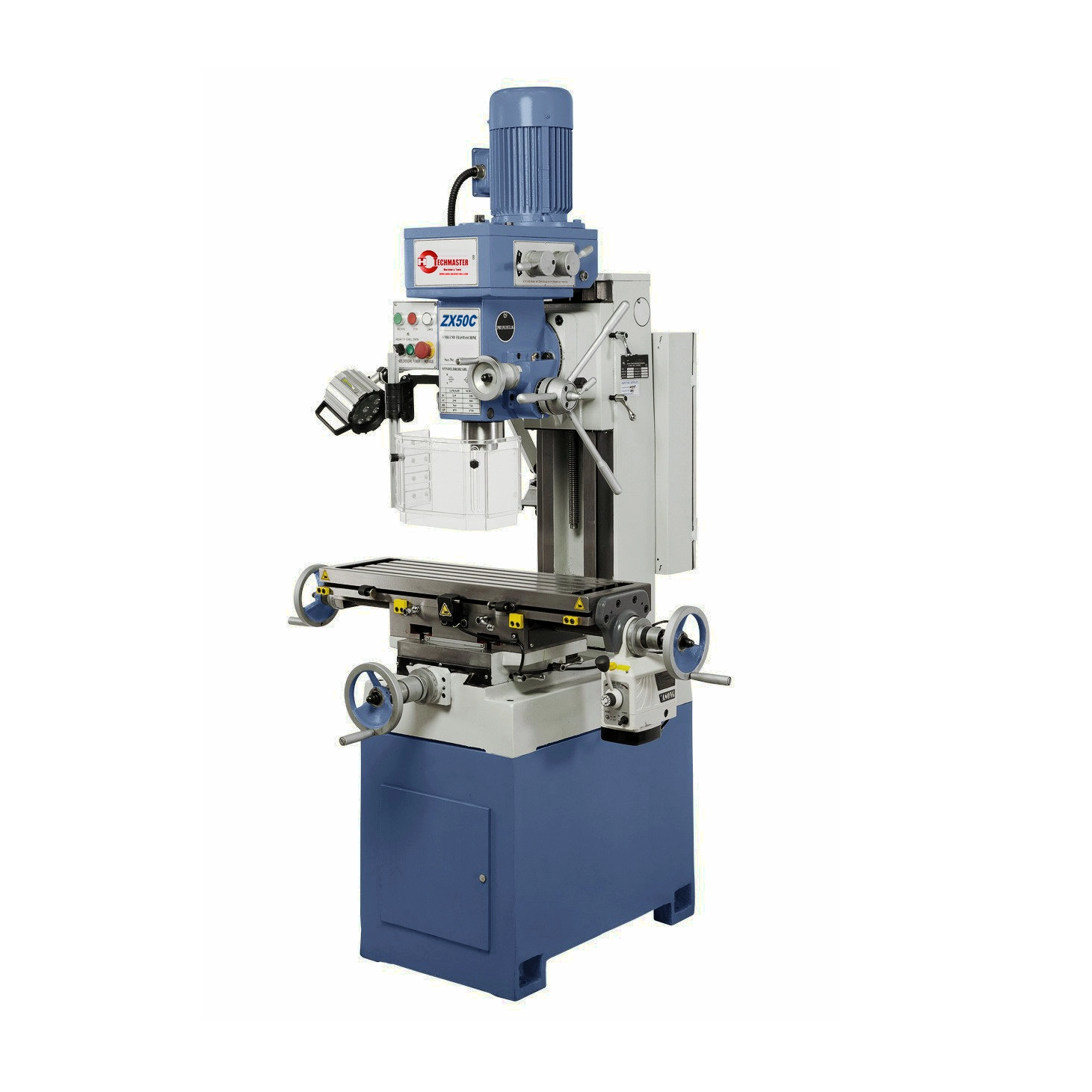

ZX50C
Quantity: drilling and milling machine features a solid construction, high capacity and versatility, making this modell ideal for repair shops. For reducing the non-productive time, this model is also available with a 3-axis digital readout.
- Heavy, solid cast iron construction
- Large, surface treated, solid cross table
- Mill table tiltable 45° to both sides
- Dovetail guiding in all 3 axes
- Polished gear wheels, in oil bath, ensure smooth running
- Right and left rotation allows thread cutting
- Gear head tilts 180°
- Height adjustable mill head
- Handwheel allows spindle feed when milling
- Star handle allows spindle feed when drilling
SPECIFICATION
UNIT
ZX50C
Drilling capacity
mm
50
End milling capacity
mm
100
Vertical milling capacity
mm
25
Boring capacity
mm
120
Tapping capacity
mm
M16
Distance between spindle nose and worktable
mm
38-430
Range of spindle speed
r.p.m
230-1825
Spindle travel
mm
120
Table size
mm
900 x 240
Table travel
mm
400 x 230
Overall dimensions
mm
1100 x 970 x 1650
Motor power
kw
1.5
N.W/G.W
kg
500/600
