ZX7045

Quantity:




Inquire Add to Basket

Product Description

Specifications

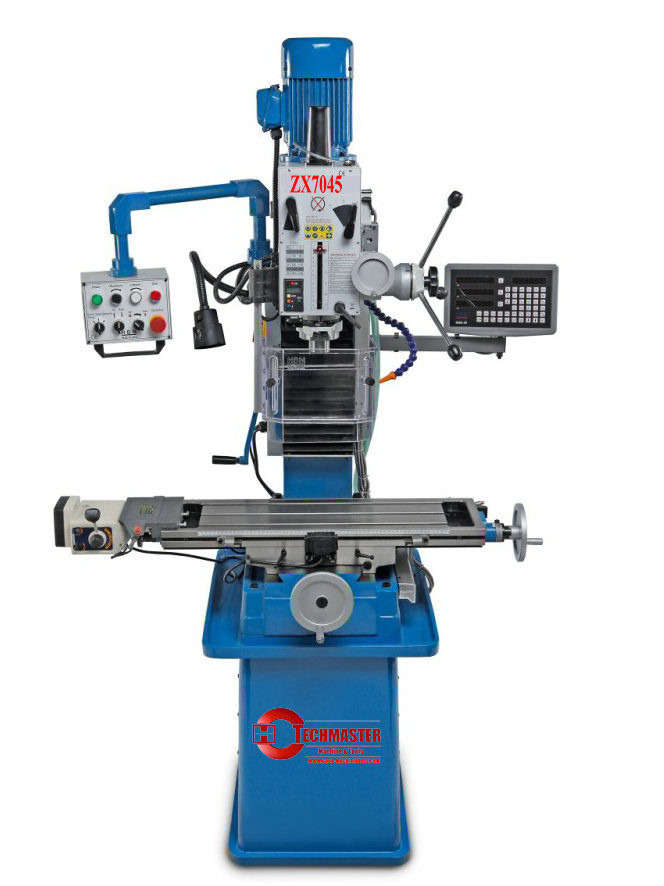

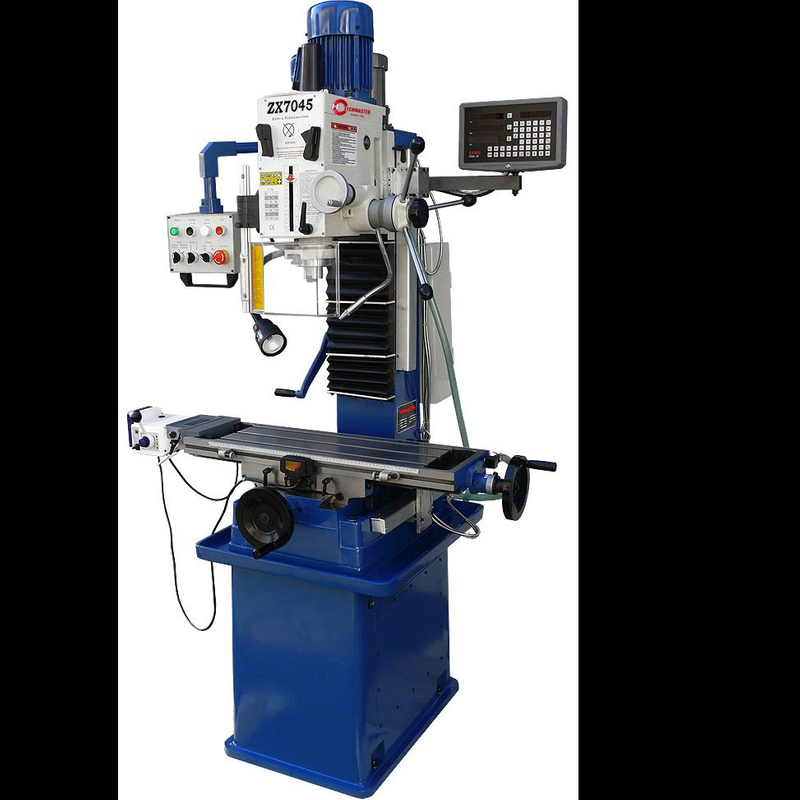

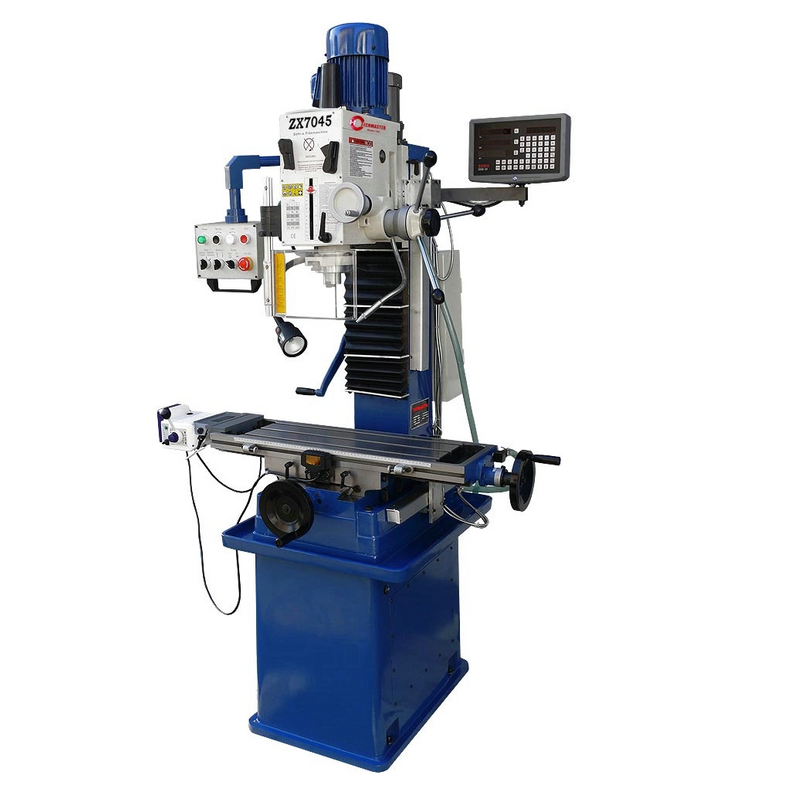

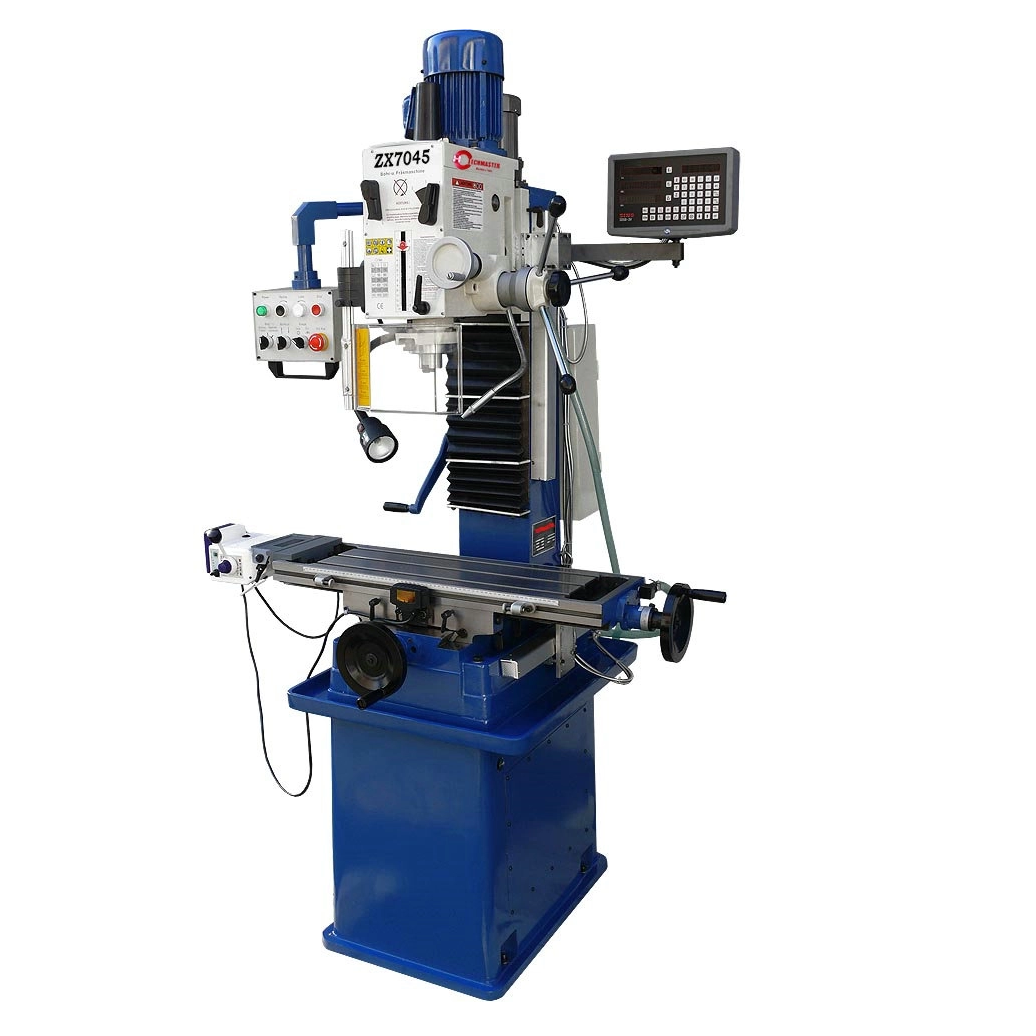

vertical drilling milling machine zx7045
milling,drilling,tapping,boring,reaming
adjustable gib on table
geared drive,low no

ZX7045 not the same as ZX45 ,except that ZX7045 is equipped with:Worktable power feed(longitudinal),Lifting motor with Big Electrical box, 2step motor with 12 steps speed.iron casting foot stand and oil pan which can improve the machining accuracy and producing efficiency.

• Milling drilling, tapping, boring, reaming
• Head swivels 360°
• Micro feed precision
•Superhigh column,Wide and big table,Gear drive, lower noise.
•Heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table

Item	Parameter
Max.drilling capacity(iron/steel)	31.5/45mm
Max.mill capacity(face/end)	80/32mm
Spindle taper	MT3/MT4/R8/ISO30
Worktable size	800×240mm
Worktable travelX/Y	570/230mm
Head tilt left right	90°
Spindle travel	130mm
Spindle nose to worktable	470mm
Spindle center to column surface	285mm
Spindle speeds range(2 steps)	12steps:75-3200r/min
motor	0.85/1.1kw
N.W/G.W	300/350KG
Packing size(L×W×H)	1140×960×2240mm
20’Container	12 sets

Standard Accessories	Optional
Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun	Cooling system,Working light,Spindle power down feeder,DRO,depth indicator,spring collet,vices,milling collet ,milling clamp.
