Quality Machine Tools

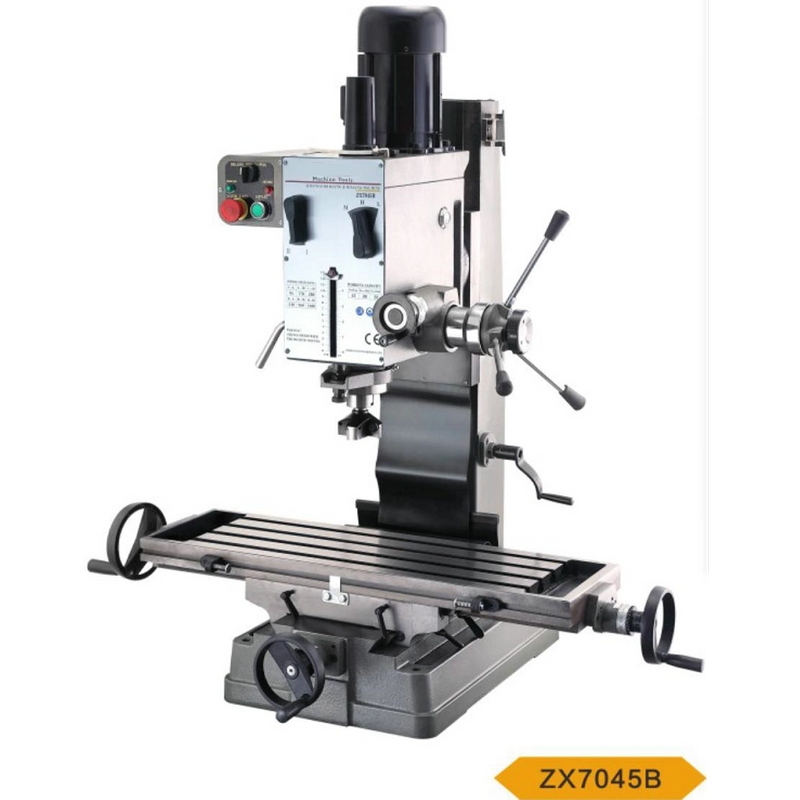

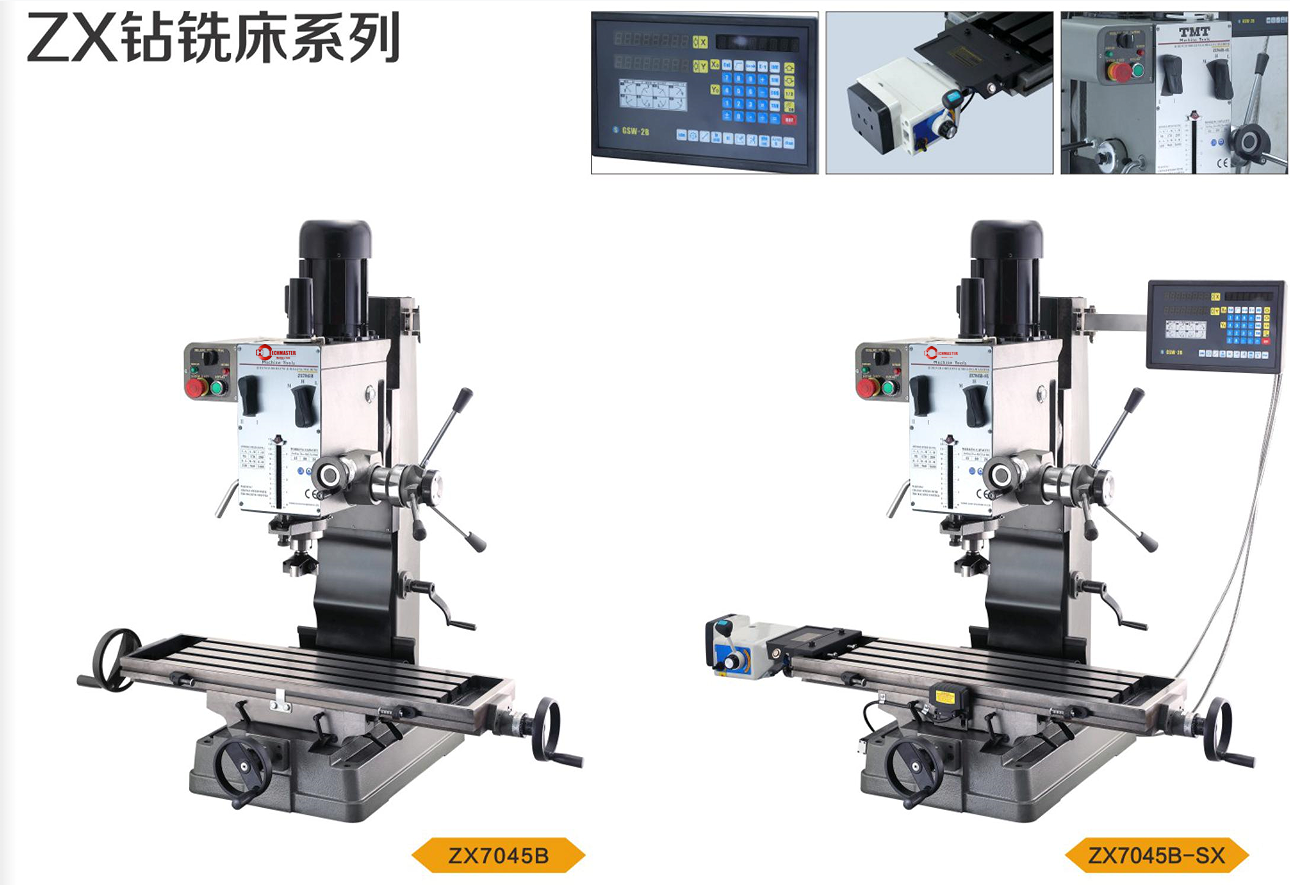

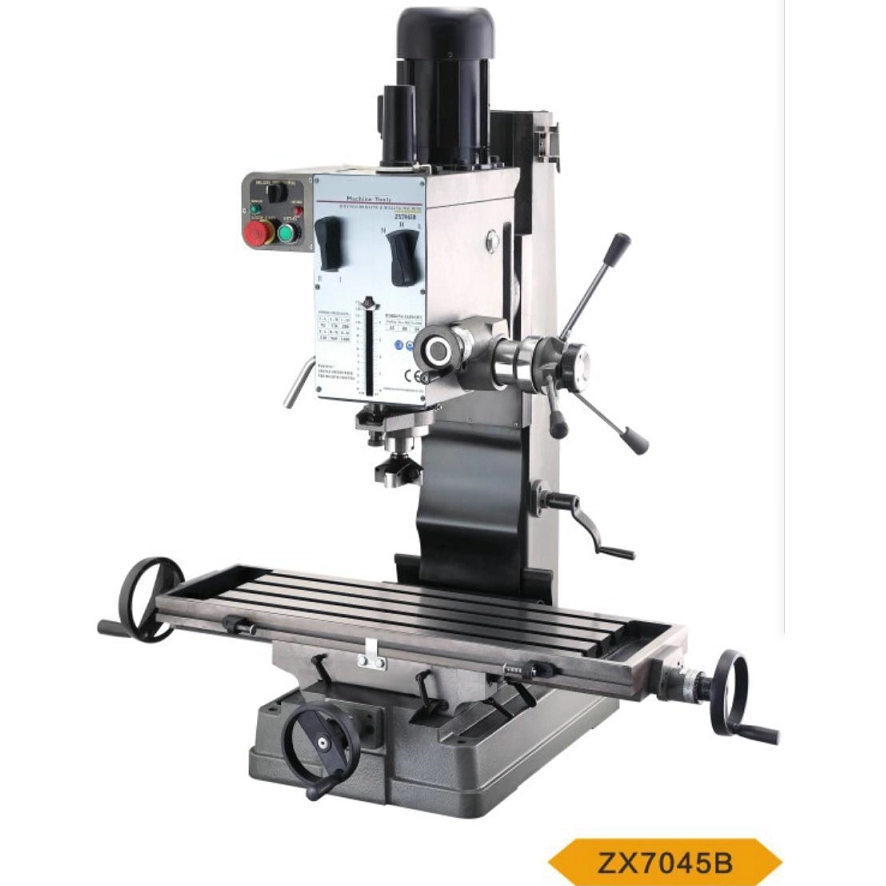

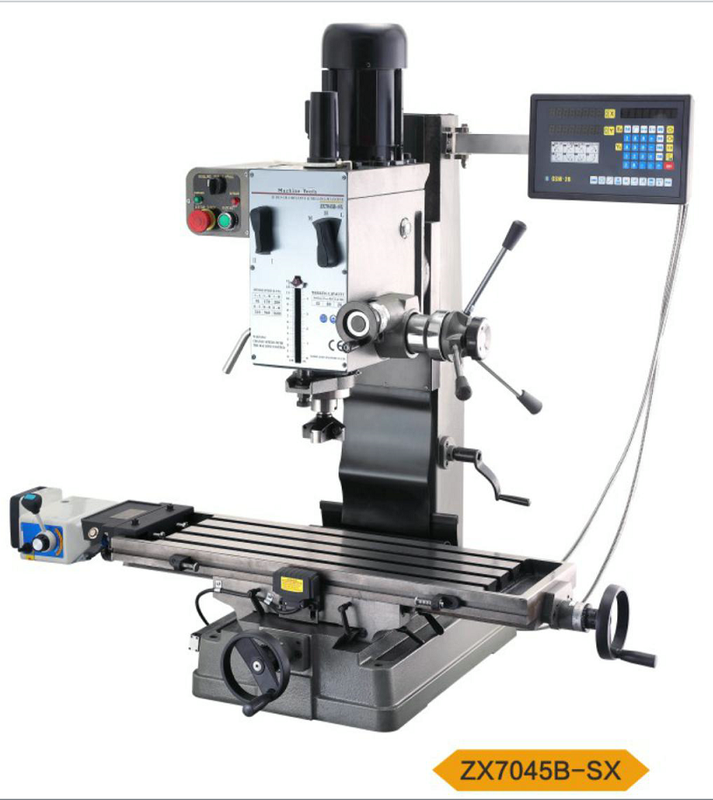

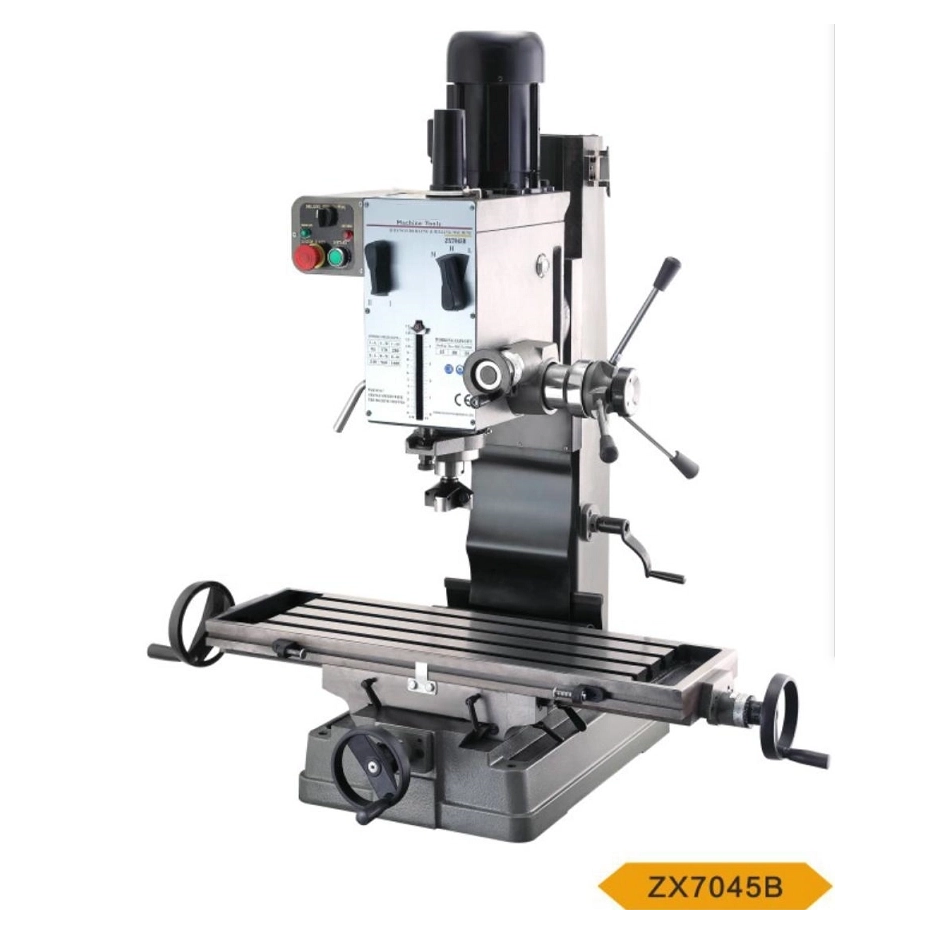

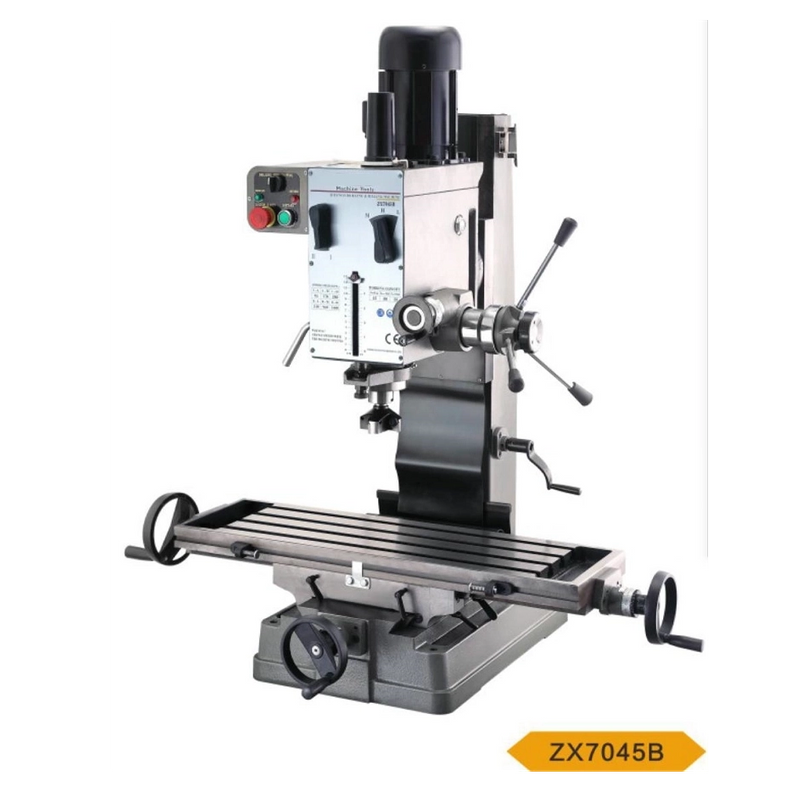

ZX7045B/ZX7045B-SX
Performence Features:
1. Milling, drilling, tapping, boring and reaming
2. Head swivels ± 90° Vertically
3. Auto-lifting headstock electrically
4. Numeral depth gauge for spindle feeding
5. Heighten and steadier column
6. Micro feed precision
7. Adjustable gibs on table precision
8. Strong rigidity, powerful cutting and precise positioning.
9.SPINDLE AUTO FEEDING
10,HEADSTOCK CAN UP AND DOWN MOVEMENT .
Technical parameter:
ITEM | ZAY7045AFG |
Max Drilling capacity | 45mm |
Max Face mill capacity | 80mm |
Max End mill capacity | 32mm |
Max distance from spindle nose to table | 425mm |
Min distance from spindle to column | 279mm |
Spindle travel | 130mm |
Spindle taper | M.T.4 |
Step of speed | 6 |
Range of spindle speed 50HZ | 80-1250 r.p.m |
2 poles motor 60HZ | 100-1500 r.p.m |
Auto-feeding step of spindle | 6 |
Auto-feeding range of spindle | 0.05-0.35mm/r |
Swivel angle of headstock | ±90° |
Table size | 800×240mm |
Forward and backward travel of table | 205mm |
Left and right travel of table | 585mm |
Motor power | 1.5KW |
Net weight/Gross weight | 380kg/420kg |
Packing size | 770×880×1160mm |
