ZX7550CW WITH R8 SPINDLE
Share to:

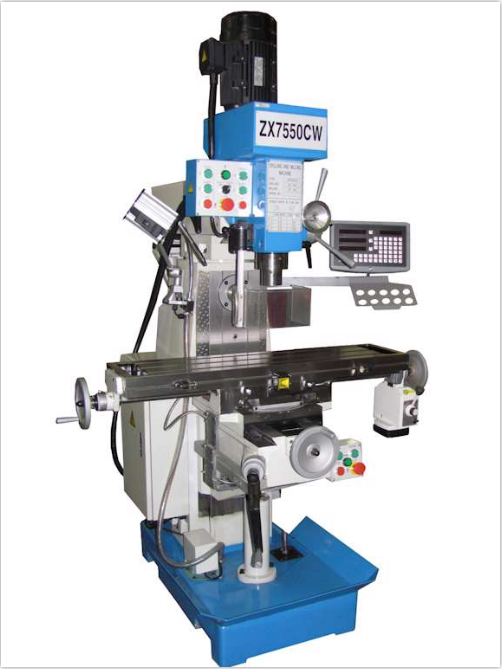

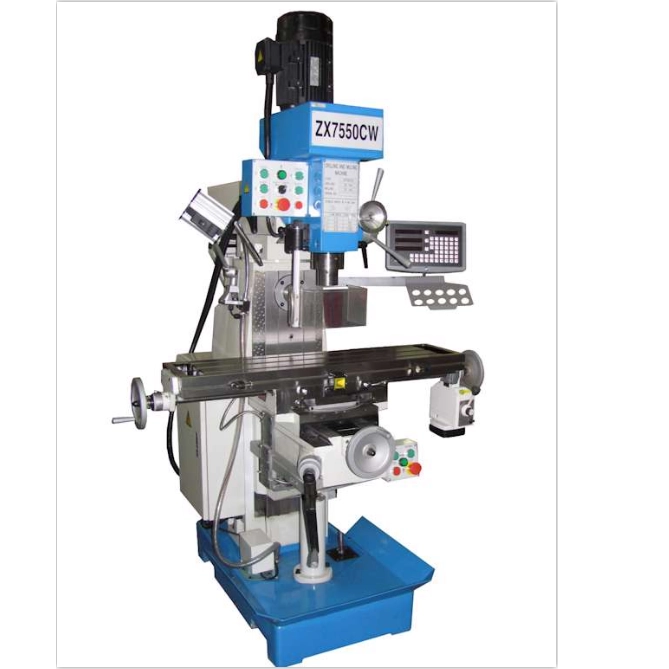

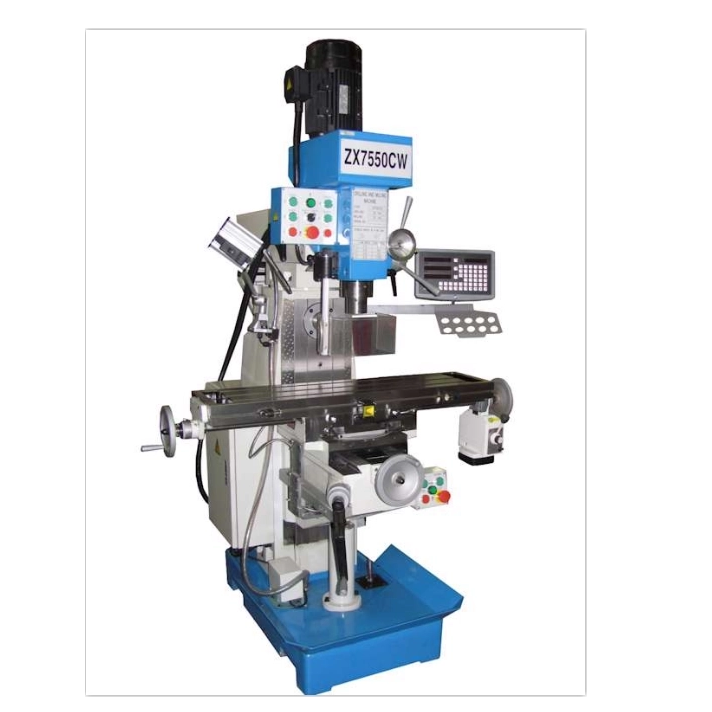

ZX7550CW WITH R8 SPINDLE

Quantity:
  • ZX7550CW

Vertical Spindle: R8
Horizontal Spindle: R8
Vertical spindle to column distance: 250-650mm
Vertical spindle to table distance: 250-650mm
Horizontal spindle to table distance: 70-370mm
Vertical spindle travel: 120mm
Table size: 1000 x 240mm
Table travel: 600 x 230mm
Motor size: 1.5kW
Dimensions: 1380 x 1220 x 2100mm
Weight: 850kg


Standard Accessories:
Coolant system
Worklight
Drawbar
X-axis powerfeed
3-axis DRO
Long arbor
Arbor ram support
Drill chuck + arbor
