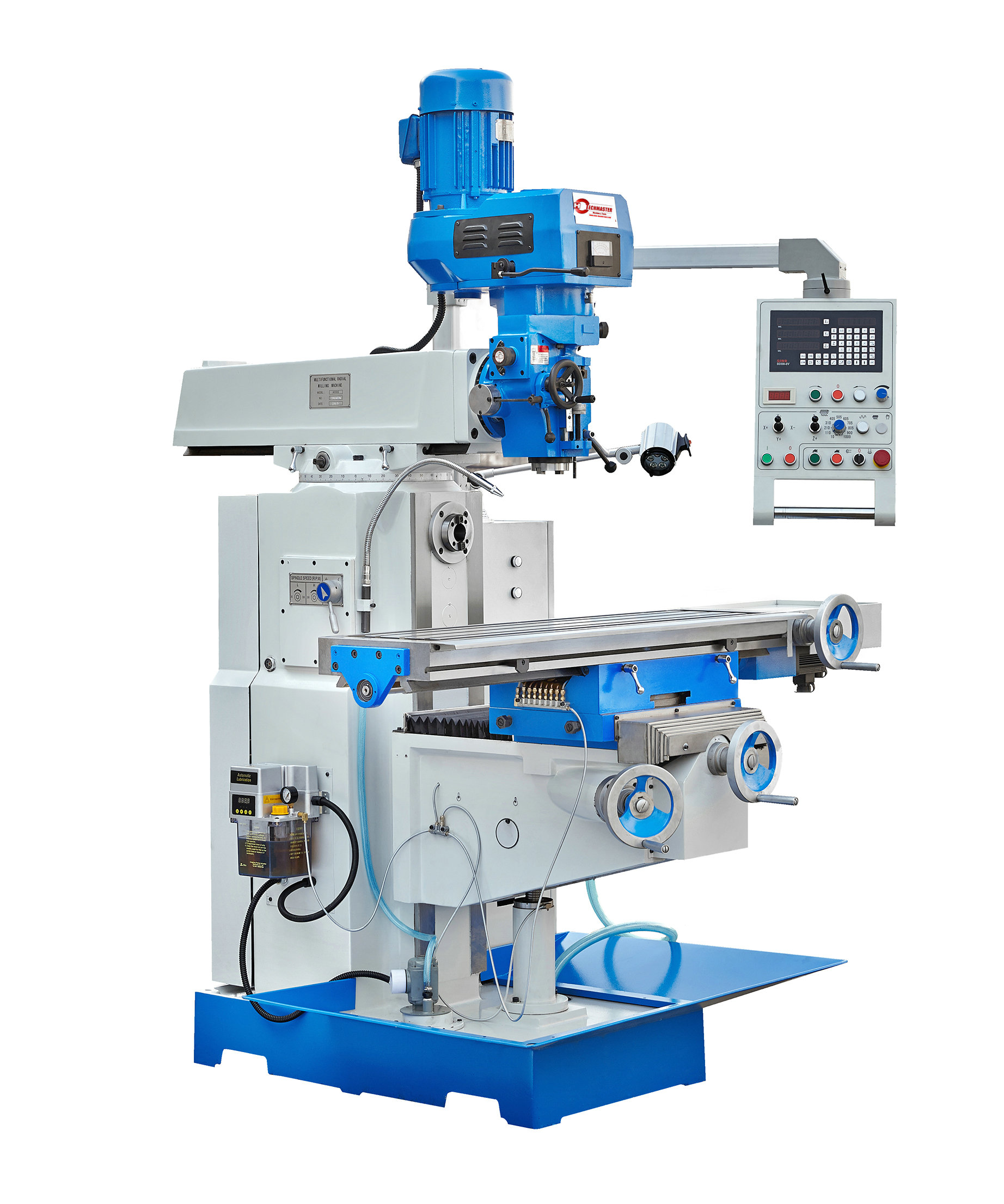

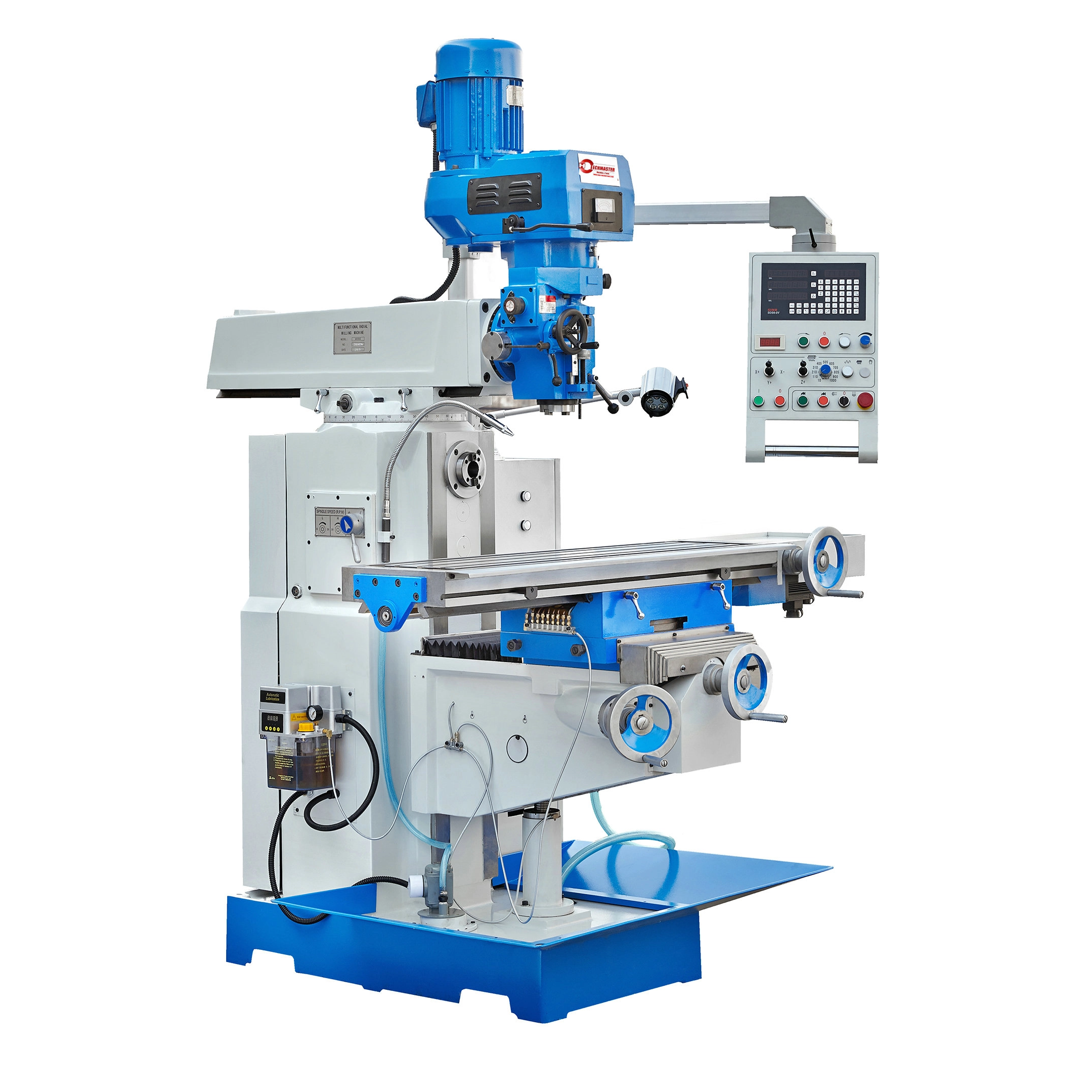

X6350S
Specification
1.X6328B is with Taiwan 3HP milling head with high speed.
2.Its advantages include :ram can not only move forward and backward, also swivel 180 degrees; X,Y automatic feed,
spindle automatic feed,Z axis with lifting and lowering motor
| unit | X6350S | |
| Table size | mm | 1270X320 |
| T slot no./width/distance | no | 3/14/70 |
| table Longitudinal travel | mm | 730 |
| table Cross travel | mm | 290 |
| table Vertical travel | mm | 380 |
| Spindle taper |
| ISO40 |
| spindle speed /step -- Vertical | rpm | 65-4660 |
| --Horizontal | rpm | 38-1310/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 100 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | M16 |
| quill travel | mm | 127 |
| swivel angle of headstock | degree | +/-45º |
| vertical spindle axis to column surface | mm | 220-560 |
| vertical spindle nose to table surface | mm | 120-500 |
| horizontal spindle axis to table surface | mm | 0-330 |
| horizontal spindle axis to arm bottom | mm | 175 |
| ram travel | mm | 500 |
| Longitudinal/cross feed | mm / min | 24-402/9steps |
| Vertical/step | mm/min | 422/1step |
| Longitudinal/cross rapid speed | mm / min | 402 |
| Rapid Traverse vertical | mm/min | 422 |
| automatic spindle feed |
| 0.45/0.86/1.25 |
| main motor | kw | 3.7/2.2(V/H) |
| feed motor | kw | 0.37(X/Y),0.75(Z) |
| coolant motor | kw | 0.04 |
| overall dimension | cm | 171X164X245 |
| N/W,G/W | kg | 1650/1850 |
