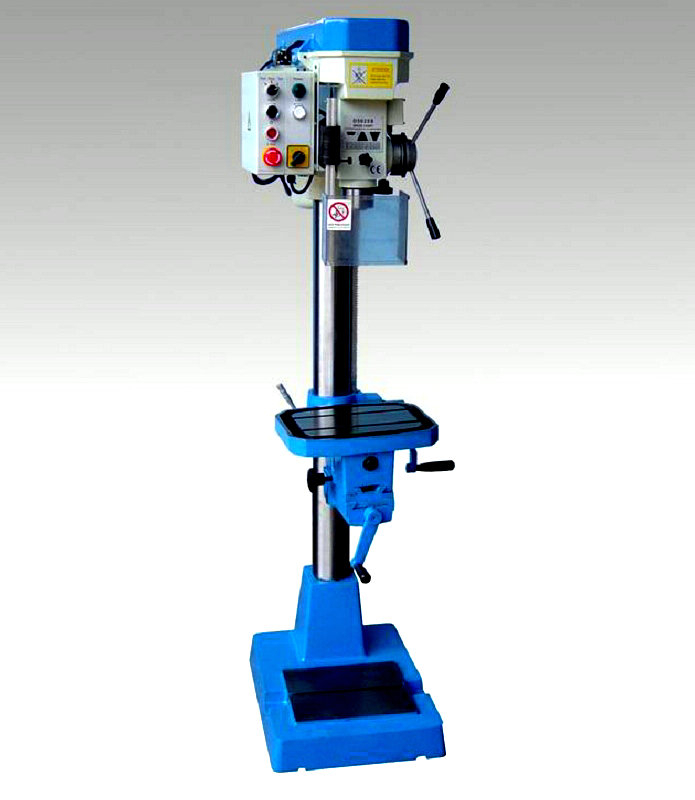

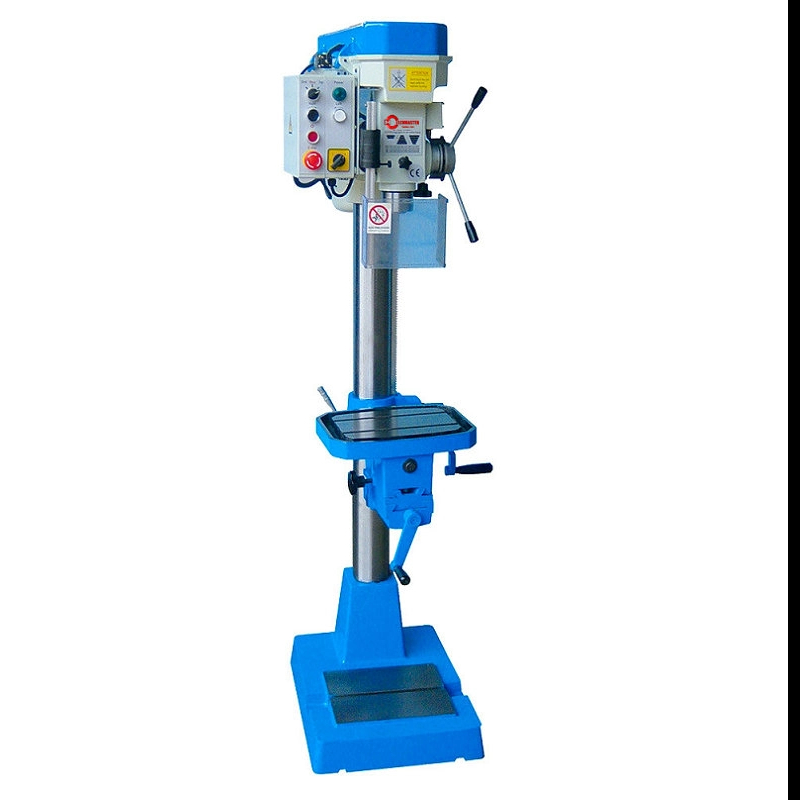

Feature:
Precision machined drill table with diagonal T-slots.Height adjustment of the drilling table via rack.
Drill table inclinable by 45 ° and 360 ° rotatable.
V-belt cover with safety switch.Aluminum die-cast quill lever in one piece with softgrip handles.industrial engine.
Precision Spindle bore.Machine operation including safety electronics in 24 V DC.
Guaranteed concentricity .
Drill spindle with precision ball bearings.
High quality keyless chuck.Large, height-adjustable protective screen with safety switch.
Heavy version of the entire machine.
| Specifications | |
| Max. drilling capacity | 25 mm |
| Max. tapping capacity | M20 |
| Spindle taper | MT3 |
| Spindle stroke | 100 mm |
| Step of spindle speeds | 16 |
| Range of spindle speeds | 127-2380 rpm |
| Distance from spindle axis to column | 203 mm |
| Distance from spindle nose to table | 145-895 mm |
| Distance from spindle end to base | 1200 mm |
| Table size | 280x350 mm |
| Table travel | 750 mm |
| T-slot | 2x12-100 mm |
| Base size | - |
| Main Motor | 1 kw |
| Coolant motor | - |
| Overall dimension | 535x820x1700 mm |
| Net weight | 182 kg |
