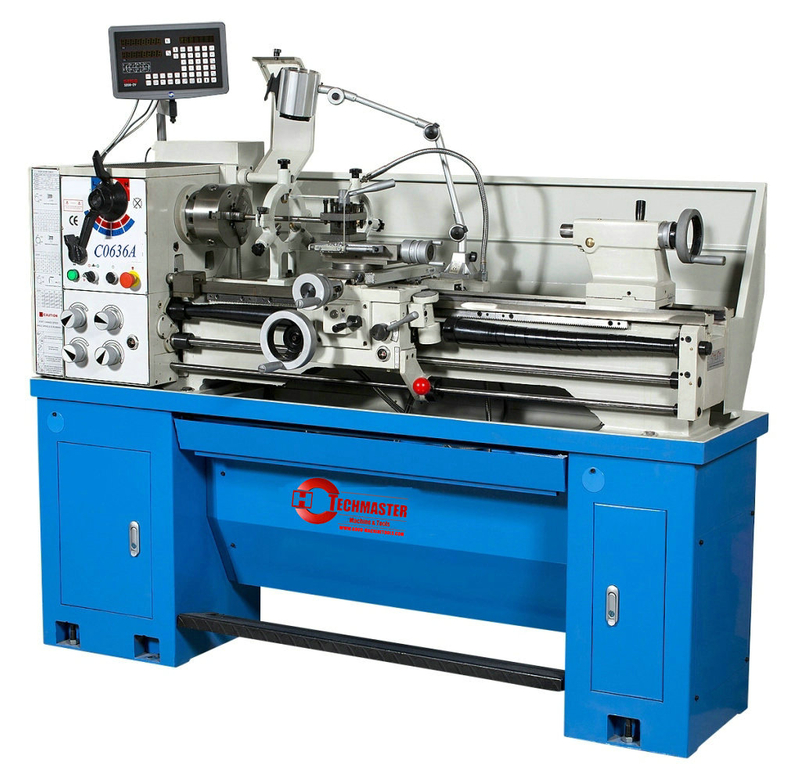

| MODEL | C0636A/1000MM |
| SPECIFICATION | |
| Distance between centers | 1000 mm |
| Swing over bed | 360 mm |
| Swing over gap | 476 mm |
| Swing over cross slide | 198 mm |
| Bed width | 187 mm |
| Taper of spindle bore | MT5 |
| Spindle nose | D1-4 |
| Spindle bore | 38 mm |
| Step of spindle speeds | 8 |
| Range of spindle speeds | 70-2000 rpm |
| Range of cross feeds | 0.018-0.238 mm/r |
| Range of longitudinal feeds | 0.078-1.044 mm/r |
| Range of inch threads | 2-1/4-40 T.P.I |
| Range of metric threads | 0.45-10 mm |
| Top slide travel | 76 mm |
| Cross slide travel | 175 mm |
| Tailstock quill travel | 92 mm |
| Taper of tailstock quill | MT3 |
| Motor | 1.5 kw |
| Packing size | 1700/1920 x 750 x 1500 mm |
| Net weight | 540 / 560 kg |
