Product Description

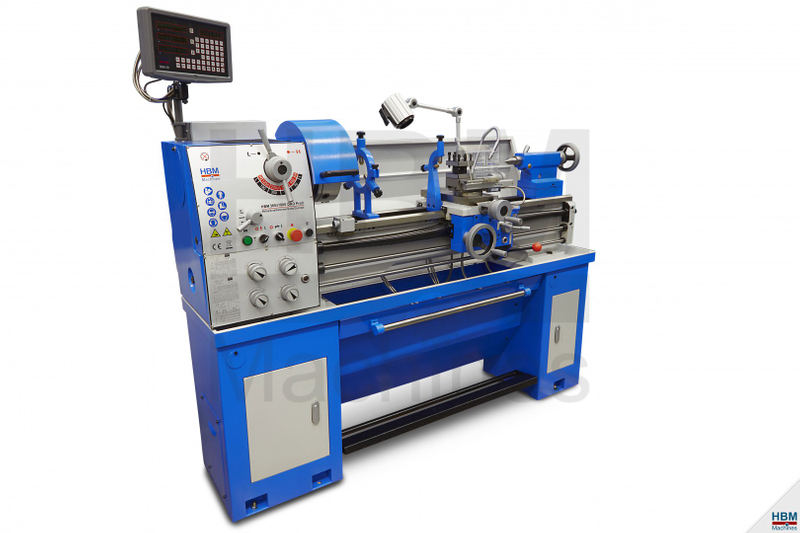

Precision lathe feature a solid construction and practicality. Making this model truly versatile for technical schools, repair shops and training workshops is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standard

Properties

· 51 mm spindle bore to machine large shaft diameters comes standard
· Perfect machine for technical schools, repair shops and training workshops
· Ideal for processing of steel, non-ferrous materials and plastics
· Removeable bridge allows machining of workpieces with a big diameter
· Chip tray extracts to front, keeping space requirements to a minimum

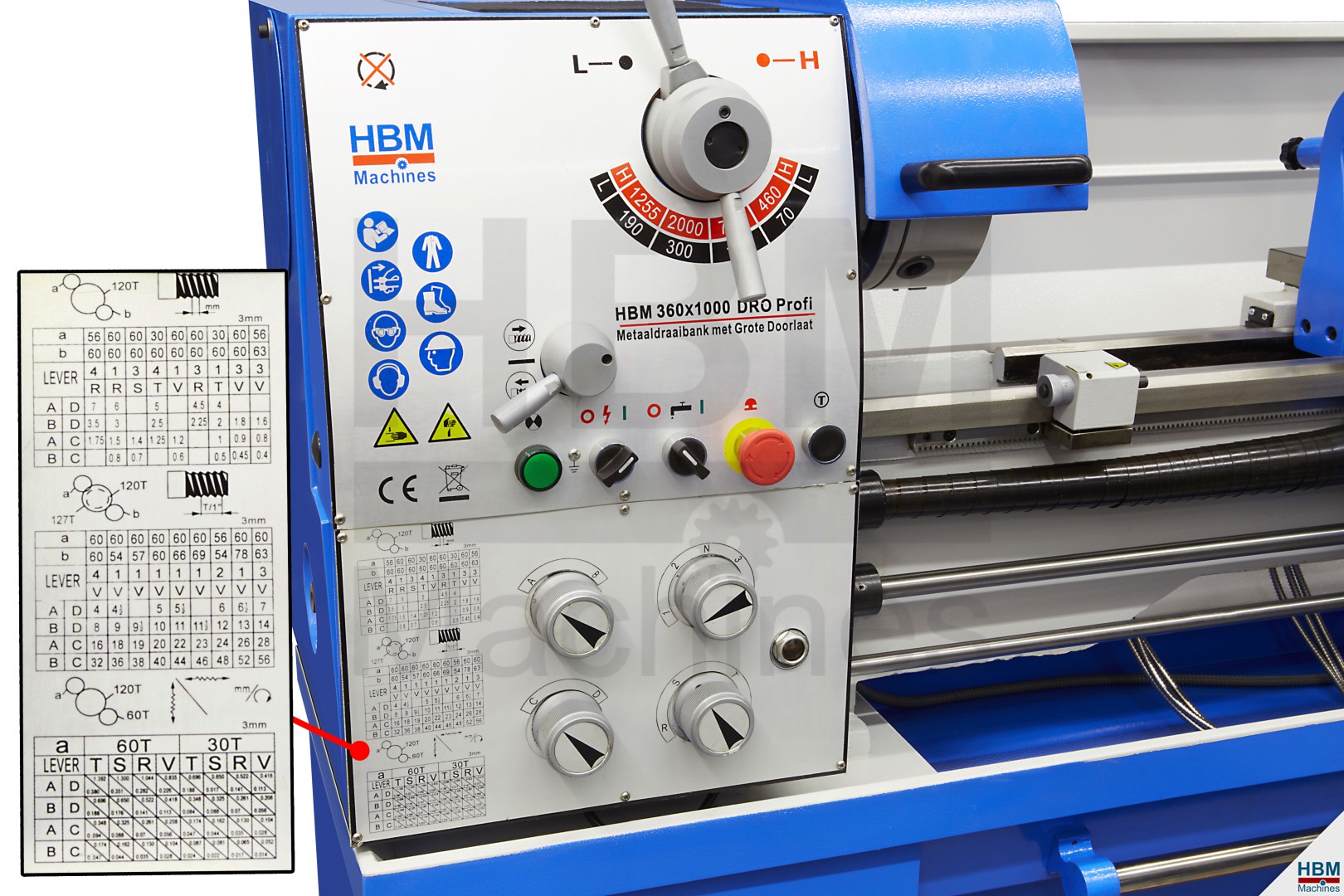

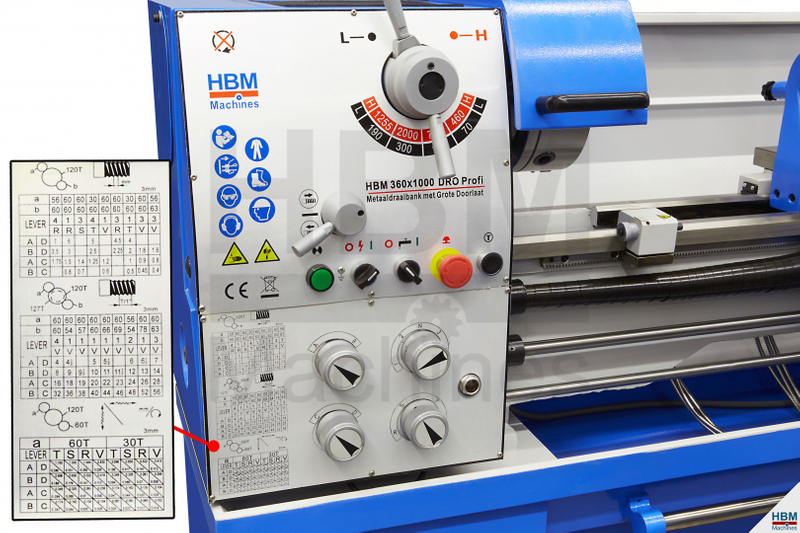

· Clear arranged speed and feed control settings, smooth operation and accurate control
· Electro-magnetic foot brake reduces downtime
· State-of-the-art spindle bedding with high-quality, angular ball bearings
· Grey cast-iron machine bed, inductive hardened and polished
· One-hand clamping for tailstock, adjustable for taper turning
· High spindle concentricity (≤ 0,009 mm)
· Hardened and polished spindle runs in oil bath
· Tailstock, spindle stock and all guides are adjustable
D360X1000 51MM SPINDLE HOLE

Distance between centers	1000 mm
Center height	180 mm
Swing over bed	360 mm
Swing over gap*	480 mm
Swing over cross slide	220 mm
Bed width	185 mm
Spindle bore	51 mm
Spindle nose fixture	DIN 55029, D1-5
Speed range	(8) 70 - 2000 rpm
Longitudinal feed	(32) 0,052 - 1,392 mm/rev.
Cross feed	(32) 0,014 - 0,380 mm/rev.
Metric thread	(26) 0,4 - 7,0 mm
Inch thread	(34) 4 - 56 threads/1"
Diameter of tailstock sleeve	42 mm
Travel of tailstock sleeve	110 mm
Taper of tailstock sleeve	MT 4
Motor power output S₁ 100%	1,5 kW (400 V)
Motor power input S₆ 40%	2,2 kW (400 V)
Machine dimension (W x D x H)	1920 x 750 x 1600 mm
Weight approx.	540 kg

Standard accessories

· 3-axis digital readout i200 with LCD-display
· 3-jaw chuck DK11-200 mm / D5
· Independent chuck K72-200 mm / D5

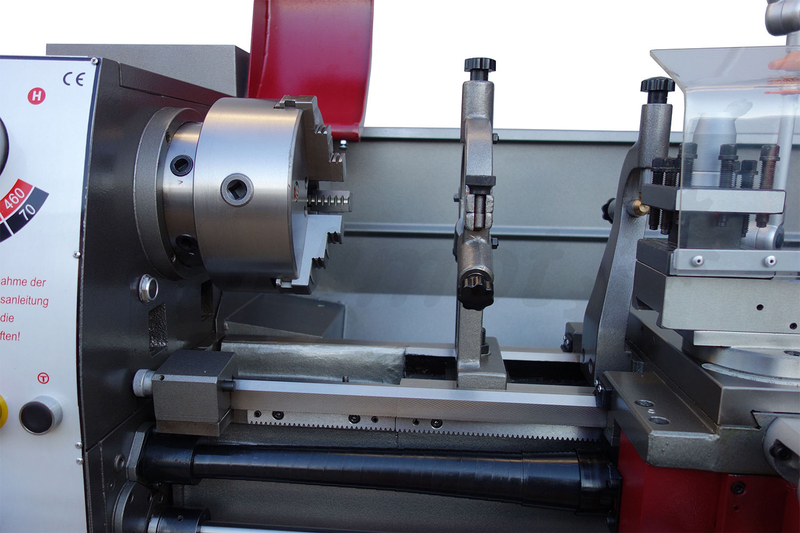

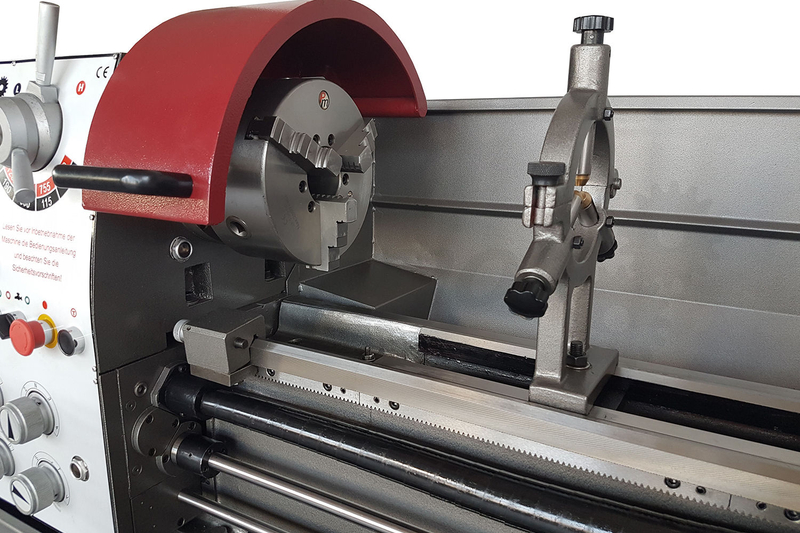

· Steady rest - Passage up to 70 mm
· Follow rest - Passage up to max. 50 mm

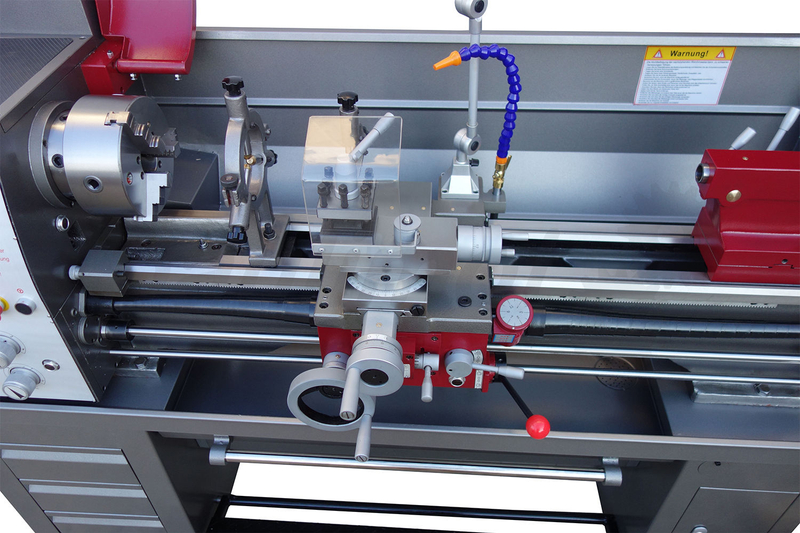

· Coolant device
· Extractable chip tray
· Face plate 320 mm

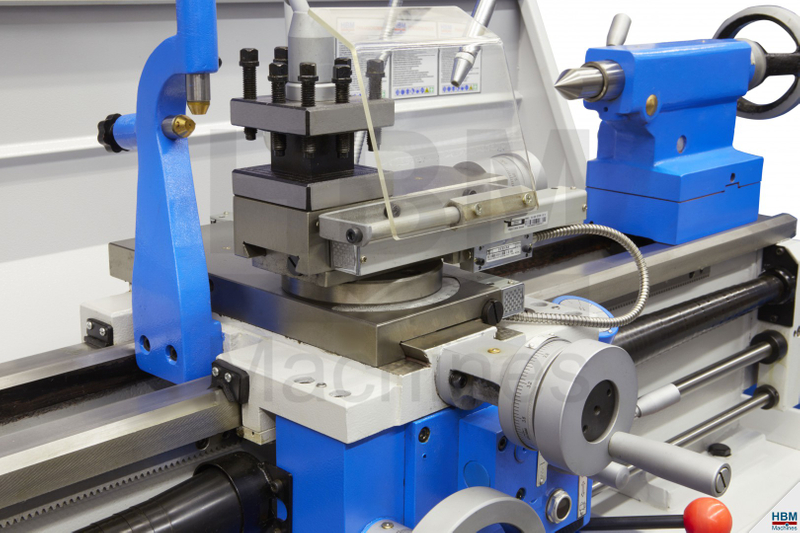

· 4-way tool post holder
· Protective cover at 4-way tool post holder
· Safety clutch
· Micrometer longitudinal fence
· Thread dialGewindeuhr
· LED machine light
· Morse taper drill sleeve
· Change gears
· 2 dead centers
· Foot pedal with brake function according to CE
· Motor with magnetic brake according to CE
· Stand
· Tools
