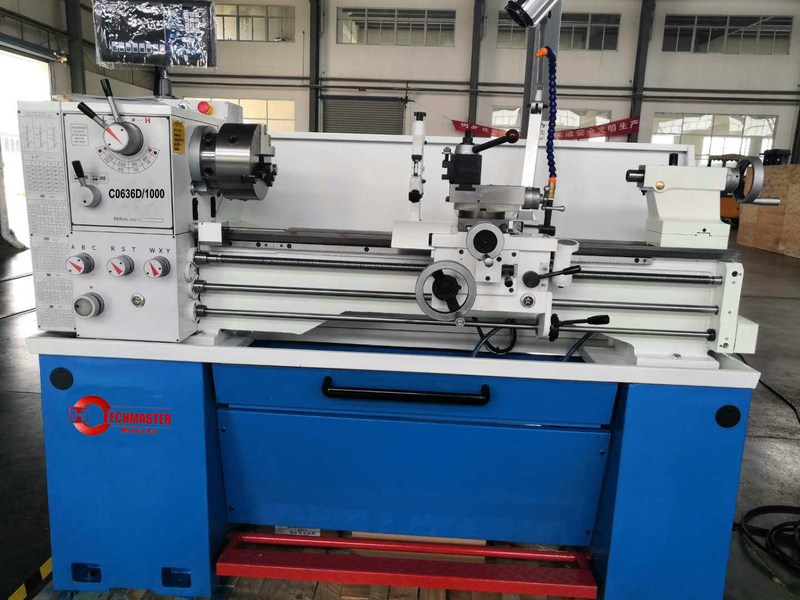

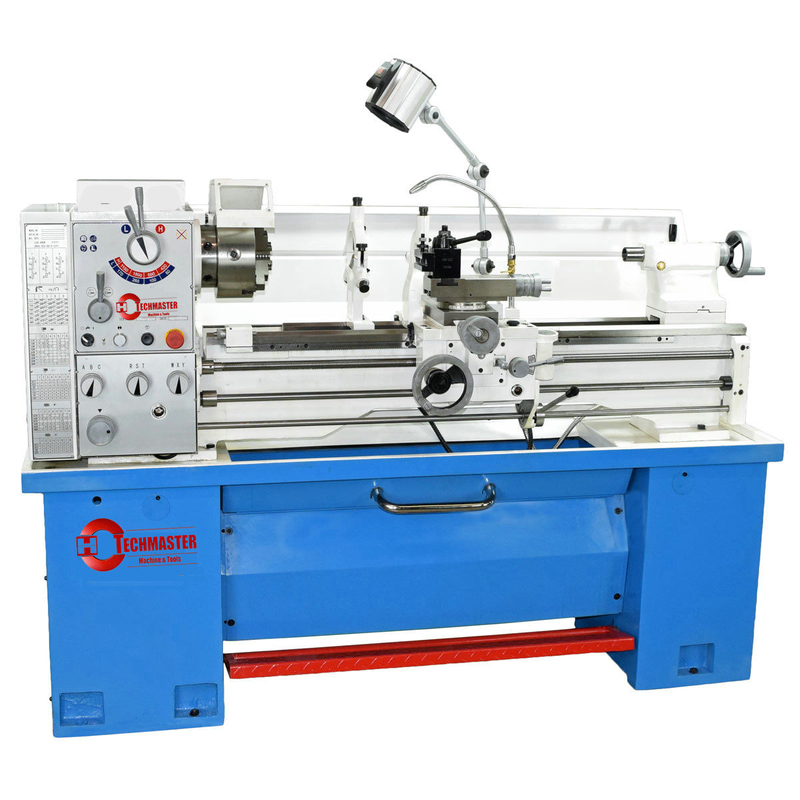

C0636D/1000MM(52MM )
| Quantity: | |
|---|---|
/C0636D
◆ No change gear in tool box.
◆ The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametral thread and module thread.
◆ Minimum Cross feed 0.01mm/rev, Minimum Longitudinal feed 0.046mm/rev.
TECHNICAL SPECIFICATION
Swing over bed.............................................................................................................. 360mm(14″)
Swing over support........................................................................................................ 230mm(9″)
Swing over gap............................................................................................................... 508mm(20″)
Center height................................................................................................................182mm(7.16″)
Distance between centers.............................................................................................1000mm(40″)
Bed width............................................................................................. .......................186mm(7.36″)
Bed height..................................................................................................................308mm(12.12″)
Motor output.............................................................................................................................1.5KW
Spindle bore........................................................................................................................52mm(2″)
Camlock system.........................................................................................................................D5
Spindle speed................................................................................................................90-2000r.p.m
Cross slide travel........................................................................................................... 160mm(6.3″)
Compound slide travel.................................................................................................... 68mm(2.7″)
Leadscrew diameter.......................................................................................................22mm(0.87″)
Feed rod diameter..........................................................................................................19mm(0.75″)
Cutting too(max.section) ............................................................................16mmX16mm(5/8″×5/8″)
Inch thread.....................................................................................................................4—112TPI
Metric thread....................................................................................................................0.1—7mm
Diametral thread.............................................................................................................16—112DP
Moduler thread.............................................................................................................0.1—1.75MP
Longitudinal feed............................................................................................. 0.00168—0.1175in/r
Cross feed..................................................................................................... 0.00046—0.03231in/r
Tailstock quill diameter& taper......................................................................32mm(1.26″)Morse No3
Weights(Approx). ..................................................................................................................…720kg
